Features:

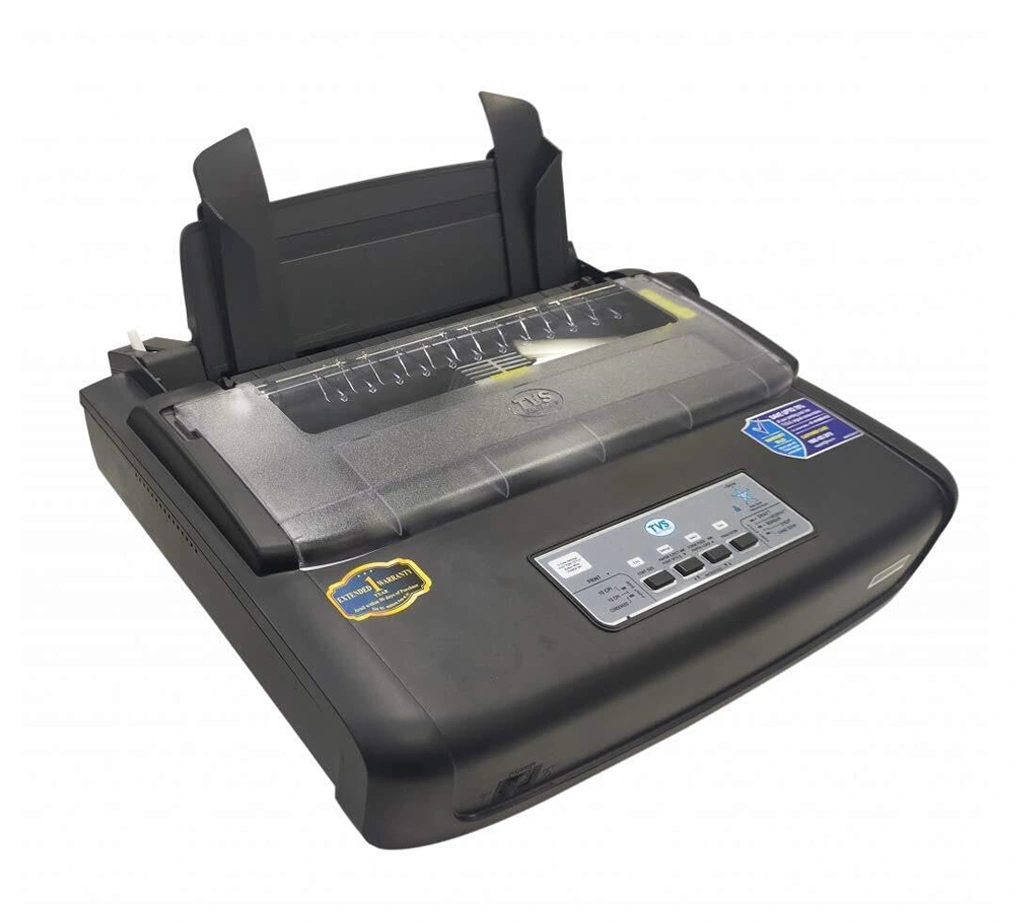

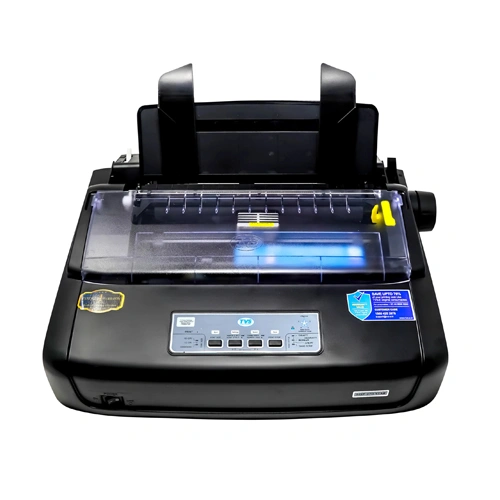

MSP 270 Classic Plus

Print Method : Serial Impact Dot Matrix
Number of Pins in Head : 9 pins
Print Direction : Bi directional
Control Code : ESC / P, IBM Proprinter
Print Width : 80 Column
Print Head Life : 200 Plus Million Characters

Print Speed

High Speed Draft : 10 / 12 / 15 cpi 350/ 360 / 400 cps
Draft : 10 /12 /15 cpi 270 / 320 / 375 cps
NLQ : 10 / 12 / 15 65 /75 /75 cps

Print Characteristics

Character Sets Resident Printer font
Draft : Draft
Near Letter Quality : Roman, Sans Serif, Script
Resident Barcode Fonts : Code 3 of 9

Printable Columns

Pitch :10/ 12/ 15/ 17/ 20 cpi

Paper Handling

Paper Path Tractor / Manual : Top, rear and bottom
Continuous Tractor : Convertible push and pull
Cut Sheet (Single Sheet) : 3.5 -10″
Cut Sheet Width : 3.5 -10″
Paper Thickness : 0.3 mm
Continuous Paper : 3.5 -10″

Paper Feeding

Standard : Friction, Push Tractor
Copies : 1+3 with carbon
Line Spacing : “4.23mm (1/6″”) or programmable in increments of 0.118mm (1/216″”)”
Input Data Buffer : 100 KB
Interface : Bi-directional parallel (I pEE-1284 ) nibble mode suported USB 2.0 Full-Speed Serial (Optional)

Ribbon Cartridge

Standard :Patented TVS-E ribbon cassette with user replaceable Ink bank

Reliability

Mean Time Between Failure (MTBF) : 15000 POH
Acoustics : 55 dB (A) in ISO 7779 Sonic Pattern
Emulation : EPSON ESC/P, IBM Proprinter
Control Panel : 4 switches and 5 LEDs

Environmental Conditions (Operating)

Temperature : (+5 C to +45C)
Humidity :10% to 80%

Electrical Specification

Rated Voltage : 90V – 270V AC
Rated Frequency : 47 -63 Hz

Power Consumption

Operating : 34W – Self test
Standard by : 12 W

Printer Driver / Utility
Operating System : Windows 9X, NT 4.0, ME, 2000, 2003, XP, VISTA, Windows 7, Linux
Electronic Guide : HTML Based

Dimesions

Size ( W D H) mm : 433 X379 X147 mm
Weight : 5.7 kg
Warranty :1 year
