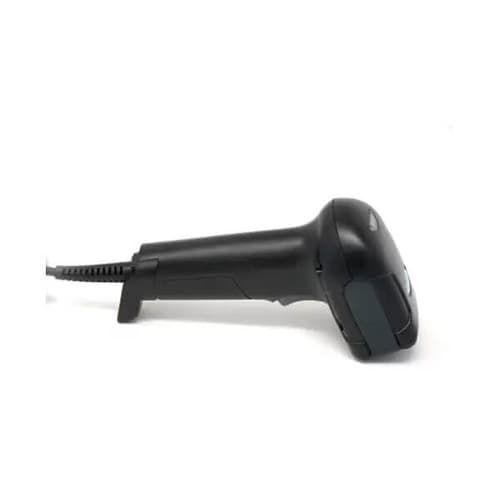

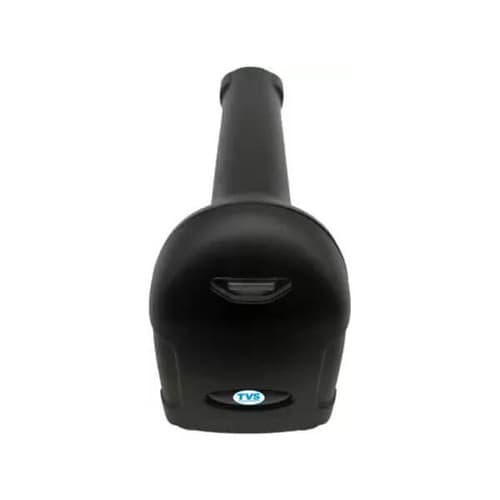

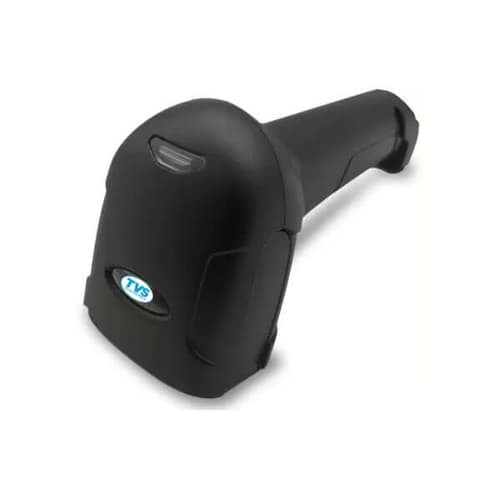

TVS Electronics BS-C103G Barcode Scanner
7.5% Instant Discount on HDFC Credit & Debit Card EMI
- Brand: TVS
- Product Code: BS-C103G
- Availability: Out Of Stock
TVS Electronics BS-C103G Barcode Scanner
Offer Price
₹2,100
(58% off ) ₹5,000
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
This lightweight scanner delivers superior performance and outstanding durability. It is an ideal solution for supermarkets, shopping malls, warehouses, and other environments.
ADVANTAGES
- Reads all standard 1D bar codes
- Stable and durable
- Compact and ergonomic design
- Minimal divergence of Laser beam provides high Depth of Focus on Bar codes
- 1D CCD IMAGER SCANNER WITH UNSURPASSED PENETRABILTIY
Features:
- SCAN SPEED OF 350 SCANS PER SECOND
- CAPABLE OF SCANNING 3 MILLION BARCODE
- CAPABLE OF SCANNING DAMAGED AND LOW CONTRAST CODES
Specification:
| Model | BS-C103G |
| Processor type | ARM32-bit |
| Operating Freq | 24.5 MHz (Internal) |
| Sensor | Linear CCD Sensor |
| Scan mode | Manual/Auto sense |
| Alarm mode | Red light alarm, Buzzer alarm |
| Scan rate |
Smart detect up to 350 scans/second |
| Resolution | 3mil/0.1 mm@PCS90% |
| Print contrast ratio | 20% |
| Light level | Visible red light 632 nm LED |
| Scan depth of field | 6mil (0.127mm) 40~190mm 8mil (0.2mm) 35~210mm 10mil (0.26mm) 30~300mm 13mil(0.33mm) 30~350mm 20mil (0.5mm) 30~400mm |
| Barcode type | Australian Post, Aztec, BPO, Canada Post, Codabar, Codablock, Code 11 Code 39, Code 93, code 128/EAN 128, Dutch Post, EAN.UCC Composite, Interleaved 2 of 5, Japan Post, UPC/EAN |
| Voltage | DC+5V±5% |
| Operating current | 170mA (working) ; 50mA (standby) ; 150mA (operating) |
| Interfaces | USB, RS 232, USBCOM |
| Light source | 40,000 hours |
| MTBF (Calculated) | 80,000 hours |
| Operating temperature | -10 °C to 50 °C |
| Storage Temperature | -20 °C to 60 °C |
| Humidity | 20% to 95% (Non-condensing) |
| ESD | 5,000 Lux max |
| Drop Durability | Designed to withstand 1.8m drops |
| Dimensions (LxWxH) | 95mm L * 62mm W * 168mm H |
| Gross weight | 175g |
| Material | PC |
| Color | Black |
| Warranty | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without notice. |
