Thermaltake TR2 S 550W
7.5% Instant Discount on HDFC Credit & Debit Card EMI
- Brand: THERMALTAKE
- Product Code: PS-TRS-0550NNSAWD-1
- Availability: Out Of Stock
Thermaltake TR2 S 550W
Offer Price
₹3,150
(21% off ) ₹4,000
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
FEATURES

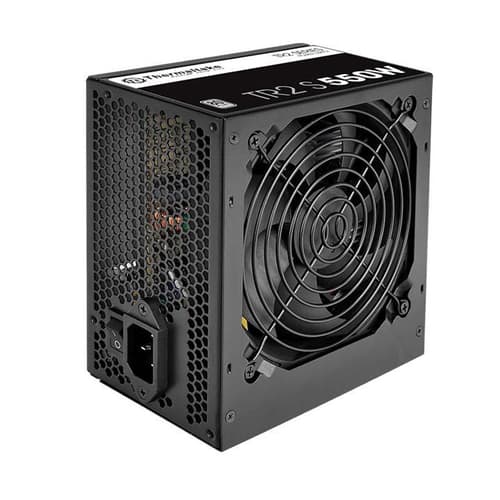

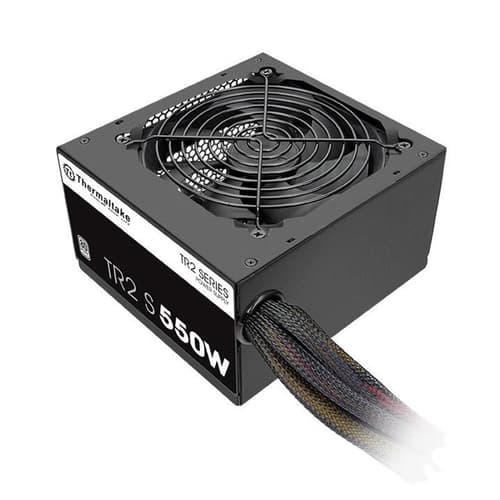

Thermaltake TR2 S 550W
Incorporating various high-quality components, the new TR2 S Series – models are rated from 350W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.
Ultra Quiet 120mm Fan
TR2 S Series adopts 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation.
Multiple Connectors
The cables used for TR2 S Series are all sleeved, users are able to properly route the cables in optimal location to prevent airflow blockage.
80 PLUS 230V Standard Certified and Kaby Lake-Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard certified. Additionally, TR2 S Series has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Single +12V Output
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:
| AC INPUT |
Input Voltage: 230V |
||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 21A |
16A |
38A |
0.5A |
2.5A |
| Max Output Power |
105W |
456W |
6W |
12.5W |
|
| Total Power |
550W |
||||
SPECIFICATIONS
| Model | PS-TRS-0550NNSAWD-1 |
| watts | 550W |
| RGB Fan | No |
| Form Factor | ATX |
| Type | Intel ATX 12V 2.3 |
| Max. Output Capacity | 550W |
| Color | Black |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | 16msec (minimum) within 60% load |
| Input Current | 7A max |
| Input Frequency Range | 50 Hz - 60 Hz |
| Input Voltage | 230 Vac |
| Operating Temperature | 5℃ to +40℃ |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40 ℃ to +55 ℃ |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 120mm Fan: 1800 R.P.M. ± 10% |
| Efficiency | 82-86% efficiency @ 20-100% load |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/CB/TUV |
| PCI-E 6+2pin | PCI-E 6+2pin x 2 |
| Warranty | 3 Years |
| Note | ***Features, Price and specifications are subject to change without notice. |
| Psu | |
| Wattage | 550 Watt |
| Series | TR2 S SERIES |
| Certification | 80 Plus White |
| PCIe Connector (6+2) | 2 |
| SATA Connector | 5 |
| Peripheral (4-Pin) | 4 |
