Features:

Toughpower GF A3 series is 80 PLUS Gold certified and compatible with Intel’s ATX 3.1 specifications. Designed with a native PCIe Gen 5.1 connector, it can power up next-gen technology with one new 12VHPWR cable.

The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline)
The native 16 PIN (12VHPWR) PCIe connector of the GF A3 1050W can deliver up to 600W for PCIe 5.0 graphics cards.

Power Up the Next Generation Hardware

To fully support next-gen hardware, Toughpower GF A3 Gold Series is designed to meet ATX 3.1 standards, including a PCIe Gen 5.1 12VHPWR connector. The GF A3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.

Fully Compatible with Intel ATX 3.1 Standards

Toughpower GF A3 Gold series is fully compatible with Intel ATX 3.1 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

PCIe Gen 5.1 Ready

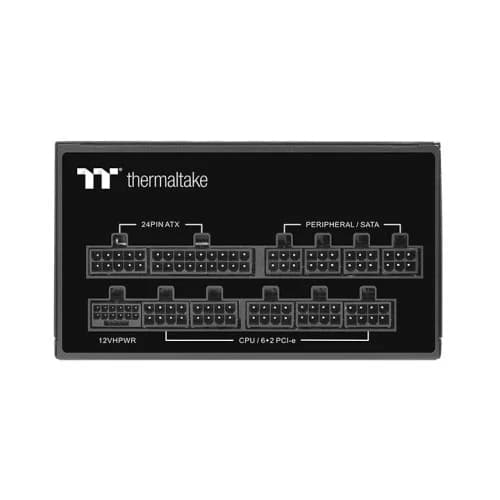

Toughpower GF A3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline)
The native 16 PIN (12VHPWR) PCIe connector of the GF A3 1050W can deliver up to 600W for PCIe 5.1 graphics cards.

Be Smart, Stay Quiet

Featuring a 120mm fluid bearing fan to deliver excellent airflow. Furthermore, the Smart Zero Fan will not spin until the load exceeds 30% of the power supply, minimizing undesired noise.

High Quality Japanese Main Electrolytic Capacitor

High quality Japanese main electrolytic capacitor greatly improves the power supplies durability and ensures the Toughpower GF A3 series is stability and reliability.

High Amperage Single +12V Rail & High-Class Technologies

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

Built-in Industrial Grade Protection

To protect the hardware, GF A3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

80 PLUS Gold Certified and Lake C6/C7 States Ready

Toughpower GF A3 Gold series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Dimension: 150mm(W)x86mm(H)x140mm(D)

PFC (Power Factor Correction):  Active PFC

Power Good Signal: 100-250 msec

Hold Up Time: > 17msec

Input Current: 15A Max.

Input Frequency Range: 50Hz - 60Hz

Operating Temperature: 0°C to + 45°C

Operating Humidity: 5% to 85%,non-condensing

Storage Temperature: -40°C to + 70°C

Storage Humidity: 5% to 95%, non-condensing

Cooling System: 12cm FDB Fan

Efficiency: Meet 80 PLUS Gold at 115Vac input.

MTBF: 100,000 hrs minimum

Safety Approval: CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI

PCI-E 6+2pin: 5

PCIe 12+4pin: 1(600W)
