Overview

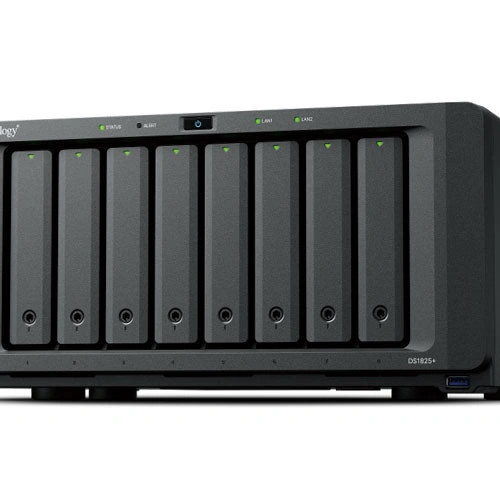

The DS1825neo+ is a versatile 8-bay storage solution designed to store and protect mission-critical data. Flexible support for faster networking speeds and capacity expansion makes the DS1825neo+ ideal for businesses needing a scalable and customizable storage solution for their growing data needs. Powered by Synology DiskStation Manager (DSM), this device is a flexible all-in-one solution for data sharing, synchronization, backup, and surveillance.

Dependable Performance

Up to 2,235/1,574 MB/s sequential read/write throughput* supports office-wide applications

Fast and Flexible Networking

Built-in 2.5GbE ports, supports 10GbE SFP+/RJ-45 and 25GbE SFP28 adapter cards*

Comprehensive Backups

Protect your IT infrastructure with license-free solutions for backup, replication, and recovery

Long-Term Support

Backed by Synology's 3-year limited hardware warranty*

Versatile Storage Solution for Growing Businesses

The DS1825neo+ is a versatile storage solution that seamlessly integrates with your existing infrastructure. It offers scalable capacity, flexible network connectivity, and robust data protection, making it ideal for businesses and creative professionals with demanding storage requirements.

• Up to 2,235/1,574 MB/s sequential read/write speeds* for demanding workloads
• Supports 8 x 2.5" SATA SSD and 3.5" SATA HDD*. Synology hard drives and SSDs are designed to integrate seamlessly with Synology systems, delivering exceptional reliability
• Expandable to 18 drives for up to 432 TB of raw storage with two Synology DX525 expansion units
• Two built-in 2.5GbE ports offer fast networking, with Link Aggregation supporting failover and load balancing capabilities
• Includes PCIe 3.0 slot for optional optional 10GbE RJ-45 or 10/25GbE SFP+/SFP28 adapter cards to expand network capabilities*
• Features 4 GB of DDR4 SODIMM non-ECC memory, expandable up to 32 GB ECC
• Two built-in M.2 slots provide SSD caching* capability without occupying drive bays

Ease of Use and Security Features

A suite of convenience and security features, combined with DSM's intuitive UI, ensures a seamless experience for users of all levels of expertise.

• Easily access your system from any web browser via QuickConnect
• Adaptive Multi-Factor Authentication (AMFA) triggers upon suspicious external logins,providing an additional layer of security
• Improve management efficiency with customizable delegation roles, allowing admins to quickly assign roles to non-admin users while restricting access to critical system settings
• Active Insight, Synology’s cloud-based fleet monitoring solution, leverages machine learning to detect malware and other malicious activity and automatically creates immutable snapshots to protect your data

Built-in Data and Uptime Protection Solutions

License-free solutions help protect data and configurations on your Synology system, ensure maximum system uptime, and back up and restore all your devices, VMs, and cloud applications.

• Synology High Availability provides fast failover between two identical Synology units to keep services available without interruption
• Snapshot Replication provides schedulable, near-instantaneous data protection with version control, ensuring that all shared folders and LUNs on your Synology system remain safe and available
• Hyper Backup backs up your Synology system data to multiple destinations securely and efficiently with integrity checks and powerful deduplication, compression, and versioning options
• Synology Active Backup Suite lets you consolidate protection of Windows clients and servers,Linux endpoints, Synology systems, VMware and Hyper-V VMs, and SaaS applications,maximizing storage efficiency with data deduplication technology
• C2 Storage for Hyper Backup offers a dedicated secure public cloud destination for Synology NAS backup data

A Collaboration, Communication, and Organization Hub

Synology provides a private cloud solution for on-site and remote workers, as well as home users, to concurrently edit documents, share files, manage emails, send instant messages, manage photos, and more

• Synology Drive serves as a centralized hub to keep your files labeled and organized for easy access, offering granular file sharing permissions and customizable security features to ensure file safety
• Synology Photos provides a comprehensive solution for storing, organizing, and sharing photos and videos, with powerful features suitable for both personal and professional use
• Synology Office enables users to collaborate on documents, spreadsheets, and presentation slides in real time, supported by convenient options such as file versioning for easy restoration and password protection
• Synology Chat brings teams together with one-on-one chats, group chats, and encrypted private channels over multiple platforms
• Synology MailPlus* provides a secure, reliable, and private email server
• Synology Calendar helps teams keep track of priorities with convenient calendar sharing and scheduling
• Synology Hybrid Share enhances multi-site teamwork with a global hybrid cloud file system which combines the scalability of the cloud with the fast local access provided by Synology systems

Reliable Virtualization and Containerization

Leverage your Synology system as virtual machine storage, or as an alternative container or VM host. With certification for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack environments, Synology systems seamlessly integrate with common virtualization and cloud platforms.

• Synology Storage Console for VMware or Windows platforms lets you manage VM storage components directly from your hypervisor. VMware VAAI integration and Windows ODX help offload storage operations and speed up data transfers
• Host lightweight containers and VMs with Container Manager and Synology Virtual Machine Manager, a native hypervisor that supports Windows, Linux, and virtual versions of DSM

CPU

• CPU Model: AMD Ryzen V1500B
• CPU Quantity: 1
• CPU Cores: 4
• CPU Threads: 8
• CPU Architecture: 64-bit
• CPU Frequency: 2.2 GHz
• Hardware Encryption Engine: Yes

Memory

• System Memory: 4 GB DDR4 non-ECC SODIMM
• Memory Module Pre-installed: 4 GB (4 GB × 1)
• Total Memory Slots: 2
• Maximum Memory Capacity: 32 GB (16 GB x 2)

Note: Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

Storage

• Drive Bays: 8 × 3.5" SATA HDD or 2.5" SATA SSD / 2 × M.2 2280 NVMe SSD
• Hot Swappable Drive: Yes

Notes: The hot swappable drive feature is not supported by M.2 SSD slots.

External Ports

• RJ-45 2.5GbE LAN Port: 2
• USB 3.2 Gen 1 Port: 3
• Expansion Port: 2
• Expansion Port Type: USB Type-C

PCIe

PCIe Expansion: 1 x Gen3 ×8 slot (x4 link)

Others

• System Fan: 120 mm × 120 mm × 2 pcs
• Power Supply Unit / Adapter: 250 watts
• AC Input Power Voltage: 100V to 240V AC
• Power Frequency: 50/60 Hz, Single Phase

General DSM Specifications

Maximum Single Volume Size

• 200 TB (32 GB memory required)
• 108 TB

Maximum Internal Volume Number: 32

SSD Read/Write Cache (Determining cache size): Yes

Storage Efficiency: V

Supported RAID Type: Synology Hybrid RAID,Basic,JBOD,RAID 0,RAID 1,RAID 5,RAID 6,RAID 10

Notes:

• Volumes over 108 TB require 32 GB of memory or more.
• Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.
• Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
• Creating M.2 storage pools requires the use of Synology-verified SSDs, which are rigorously tested under extreme temperature conditions. Thermal parameters for SSDs and NAS units are fine-tuned to ensure optimal management of thermal conditions under I/O-intensive environments.
• Storage efficiency helps reduce storage space consumption through deduplication and compression. For more information about this feature and its support requirements, please refer to this article.

File System

• Internal Drives: Btrfs,ext4
• External Drives: Btrfs,ext4,ext3,FAT32,NTFS,HFS+,exFAT

File Protocol

• SMB,AFP,NFS,FTP,WebDAV,RsynC
• Maximum Number of SMB Connections (FSCT-Based): 60
• Windows Access Control List (ACL) Integration: Yes
• NFS Kerberos Authentication: Yes

Account & Shared Folder

• Maximum Local User Accounts: 1024
• Maximum Local Groups: 256
• Maximum Shared Folder: 256
• Maximum Shared Folder Sync Tasks: 8

Warranty: 3-year hardware warranty

Note: Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
