Features:

• 140mm F.D.B Fan: Unique blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA).
• Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span.
• New patented technology of Buckle (20+4) Pin connector
• Innovative Design for gaming System & PSU protection
• DC output +12V/+5V/+3.3V remain stable
• Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V
• +12V Output With Exceptional Low Ripple Measurements
• Low Output Voltage Ripple
• ECO-design
• Auto & ECO Fan Control
• High efficiency on all rails, including 5VSB
• 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.
• 80 PLUS Platinum Certified,90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
• 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)
• Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
• Comply With ATX 12V v3.1, EPS 12V v2.92 Specification.
• Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
• Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
• Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready)
• Support NVIDIA SLI & ATI CrossFireX High Performance Graphic Card
• More than 2,000 times On/Off test
• Lead-free Green Materials with RoHS / WEEE Compliance
• Perfect For Professional & High Performance Gaming System
• PCI-E (6+2) Pin Connector For High-End Graphic Card Requirements.

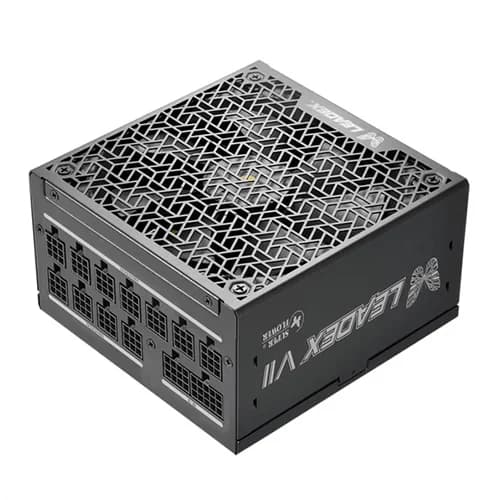

LEADEX VII Platinum PRO is fully compatible with Intel ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual Patented 9-Pin Super Connector on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode.

HIGHLY EFFICIENCY FROM ULTRA-LIGHT LOADING TO FULL POWER

LEADEX VII Platinum ATX3.1 PSU has achieved triple efficiency certification with 80PLUS Platinum badge & Cybenetics Platinum badges both in 115V & 230V input that assures extremely low power consumption and waste

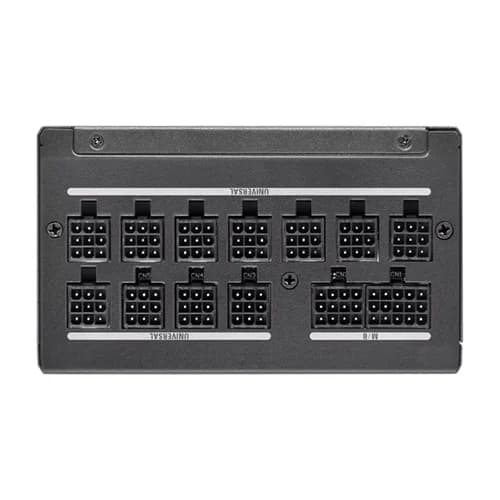

CABLE & CONNECTOR INNOVATIVE DESIGN

Compact 150mm size,Fully modularity with all flat cables design makes it easy for installation and cable management.Patented connector design makes it fully com-patible with all motherboards connection (20-24 pin for MB/8, 8+4 or 8+8 for CPU).

PATENED UNIVERSAL 9-PIN TERMINAL

LEADEX VII Platinum ATX 3.1 uses a universal 9-pin terminal and can be used in any location with PCI-E/CPU/IDE/SATA or 12VHPWR Connector

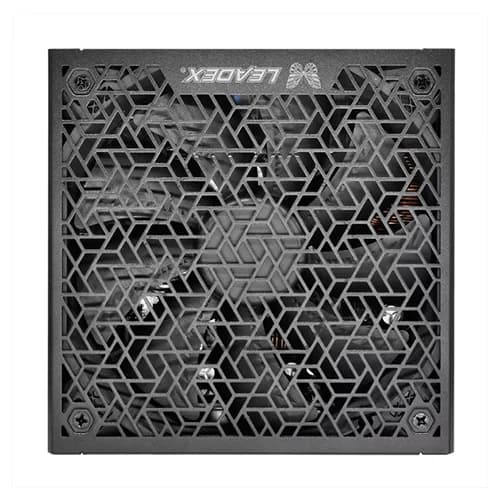

14CM FDB FAN WITH ECO DESIGN WHICH MINIMIZES THE NOISE (dBA)

Linear fan grill design and 140mm & F.D.B Fan with ECO function provides superb airflow for better heat dissipation thus maintaining overall efficiency.

Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span.

• LLC resonance conversion in the primary range and DC –DC conversion for the +3.3V and +5V rails ensure overall system stability
• 105 degree electrolytic capacitors of Japanese brands and polymer solid capacitors are used on the mainboard in order to offer the best quality
• Complete protection: with protection against over – and undervoltage (OVP,UVP),short circuit (SCP), overload (opp),and over temperature (OTP),LEADEX VII have complete protections to prevent valuable hardware from damanging
