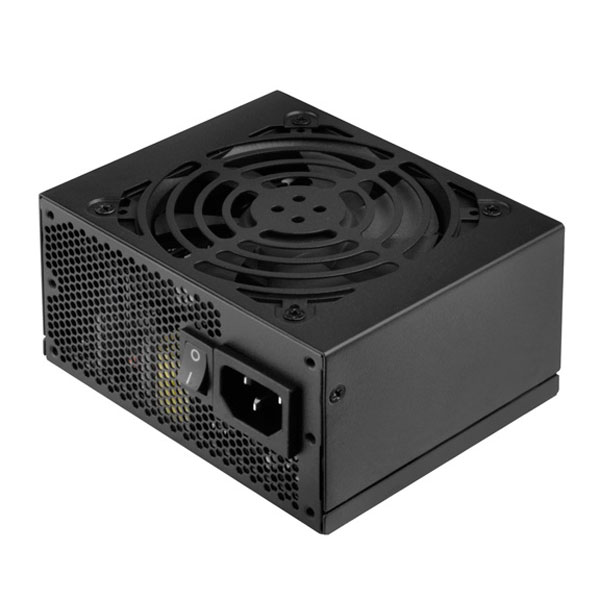

SilverStone ST45SF SFX SMPS - 450 Watt 80 Plus Bronze Certification PSU With Active PFC
Bank Credit & Debit Card EMI Offer
M D SANTA SALE LIVE NOW for T&Cs CLICK HERE
- Brand: SILVERSTONE
- Product Code: SST-ST45SF
- Availability: Out Of Stock
SilverStone ST45SF SFX SMPS - 450 Watt 80 Plus Bronze Certification PSU With Active PFC
₹6,450
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features
- Support standard SFX form factor and ATX via included bracket
- 450W continuous power output at 50℃ temperature rated for 24/7 operation (V2.0)
- 450W continuous power output at 40℃ temperature rated for 24/7 operation (V3.0)
- 80 PLUS Bronze level efficiency (82%~85% efficiency at 20%~100% loading)
- Class-leading single +12V rail with 36A
- Silent running 80mm fan (V2.0)
- Silent running 92mm fan (V3.0)
- Single PCI-E 8pin and dual PCI-E 6pin connectors support
- Active PFC
- Designed for 80 PLUS Bronze level of efficiency to reduce wasted heat and save on electricity.

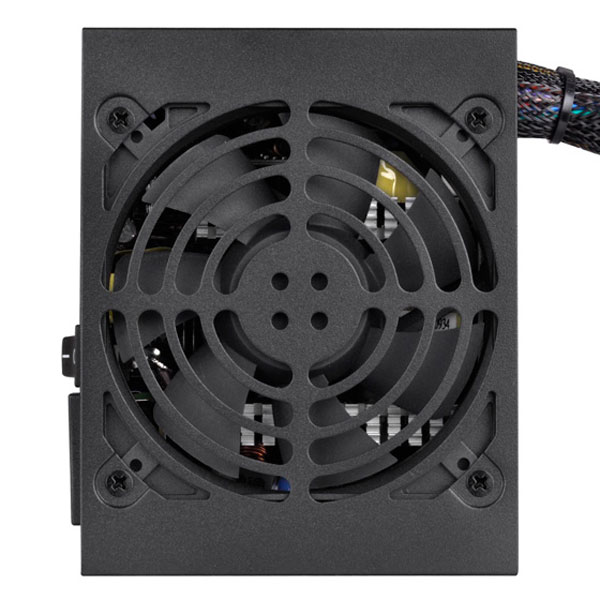

- Built-in 92mm fan has excellent airflow and low noise, perfect for quiet home or office use. (V3.0)
- Built-in 80mm fan has excellent airflow and low noise, perfect for quiet home or office use. (V2.0)
Specification

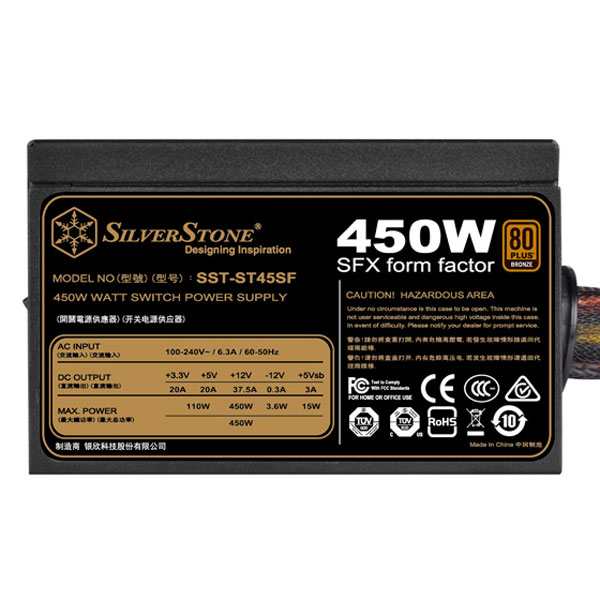

| Model No. | SST-ST45SF |
| Max. DC Output | 450W |
| Power density | 567W per liter |
| Color | Black（Lead-Free Paint) |
| Combined +3.3V & +5V |
110W (V3.0) 120W (V2.0) |
| Combined +12V |
450W / 37.5A (V3.0) 432W / 36A (V2.0) |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC.（PF>0.9 at Full Load) |
| Efficiency | 82%~85%（20% to 100% loading) |
| MTBF | 100,000 hours |
| Operating temperature |
0 ~ 40℃ (V3.0) 10°C ~ 50°C (V2.0) |
| Protection |
Over current protection Over voltage protection Short circuit protection Over power protection (V3.0 only) Under voltage protection (V3.0 only) |
| Connectors |
1 x 24 / 20-Pin motherboard connector（300mm） 1 x 8 / 4-Pin EPS / ATX 12V connector（400mm） 1 x 8/6-Pin PCIE connector（400mm） 1 x 6-Pin PCIE connector（400mm / 150mm） 3 x SATA connector（300mm / 200mm / 100mm） 2 x 4-Pin Peripheral connector （300mm / 200mm） 1 x 4-Pin Floppy connector（300mm / 200mm / 200mm） |
| Cooling System |
Single 92mm silent fan (V3.0) Single 80mm silent fan (V2.0) |
| Form factor | SFX |
| Noise Level | 18dBA minimum |
| Dimension |
125 mm (W) x 63.5 mm(H) x 100 mm(D) 4.92" (W) x 2.5" (H) x 3.94" (D) |
| Weight |
1.1 kg (V3.0) 1 kg (V2.0) |
| Other |
Includes SFX to ATX bracket for use in ATX case GPU Spport list Compatible with ATX12V v2.4 |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Psu | |
| Wattage | 450 Watt |
| Series | STRIDER SERIES |
| Certification | 80 Plus Bronze |
| SATA Connector | 3 |
| Peripheral (4-Pin) | 3 |
| Warranty | 3 Years |
