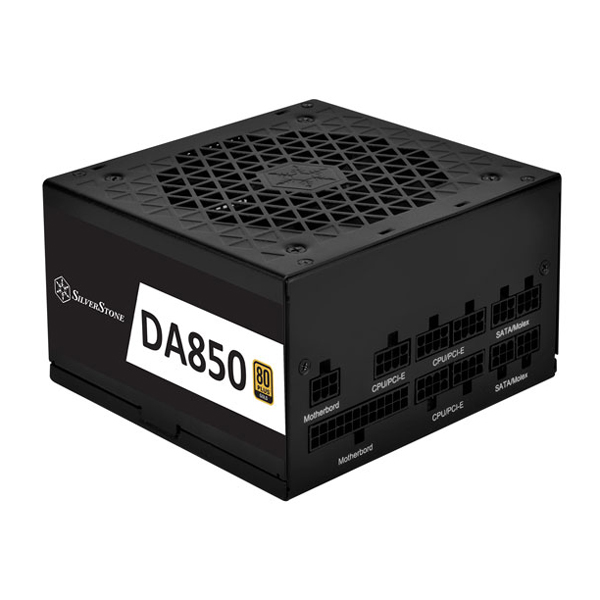

SilverStone DA850 Gold Fully Modular SMPS
- Brand: SILVERSTONE
- Product Code: SST-DA850-G
- Availability: Out Of Stock
SilverStone DA850 Gold Fully Modular SMPS
₹9,800
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features:
- High efficiency with 80 PLUS certification
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Active PFC Circuitry
- Silent running 120mm fan with 18dBA
- All Japanese capacitors
- Specially designed cover designed to effectively dissipate the residual heat
- Compact design with a 140mm depth for easy integration
- Strict ±3% voltage regulation and low ripple & noise
- Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity

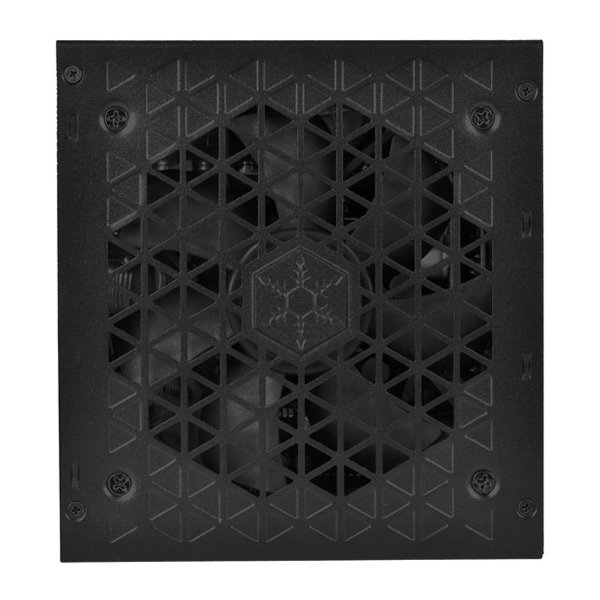

- Built-in 120 mm fan has excellent airflow and low noise, perfect for quiet home or office use
- Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
- Flat cables have much greater flexibility to allow for tighter folding and management of cables
- Specially designed cover designed to effectively dissipate the residual heat
Specifications
| Model No. | SST-DA850-G |
| Max. DC Output | 850W |
| Power density | 471W per liter |
| Model (on safety) | SST-AX0850MCGD-A |
| Color | Black(Lead-Free Paint) |
| Combined +3.3V & +5V | 110W |
| Combined +12V | 846W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz~63Hz |
| PFC | Active PFC（PF>0.9 at full load) |
| Efficiency | 82% ~ 85% (at 20% ~ 100% loading) |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection |
Over current protection Over power protection Over voltage protection Short circuit protection Over temperature protection |

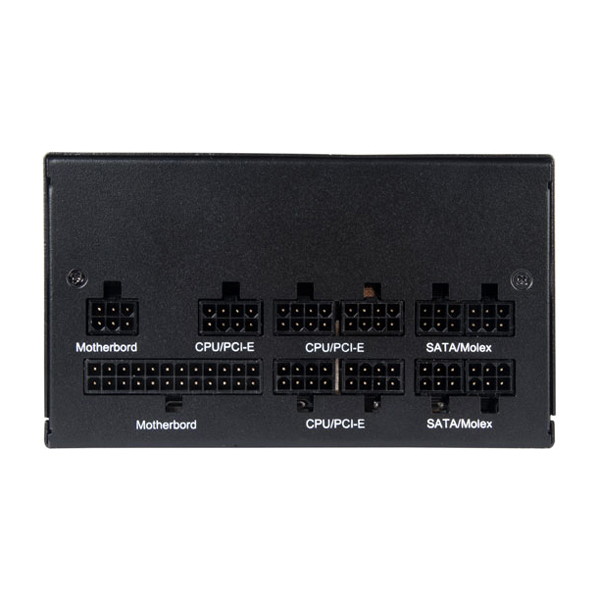

| Connectors |
1 x 24 / 20-Pin motherboard connector（600mm） 1 x 8 / 4-Pin EPS / ATX 12V connector（"750mm" x 2) 4 x 8 / 6-Pin PCIE connector（"650mm / 150mm" x 2) 8 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 2) 6 x 4-Pin Peripheral connector + 2 x 4-Pin Floppy adapter connector ("600mm / 150mm / 150mm / 150mm" x 2) |
| Cooling System | Single 120mm silent fan |
| Form factor | ATX ( PS2) |
| Noise Level | 18 dBA minimum |
| Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D) |
| Weight | 1.46 kg |
| Certification | 80 PLUS |
| Other | Compatible with ATX12V v2.4 |
| Warranty | 5 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
