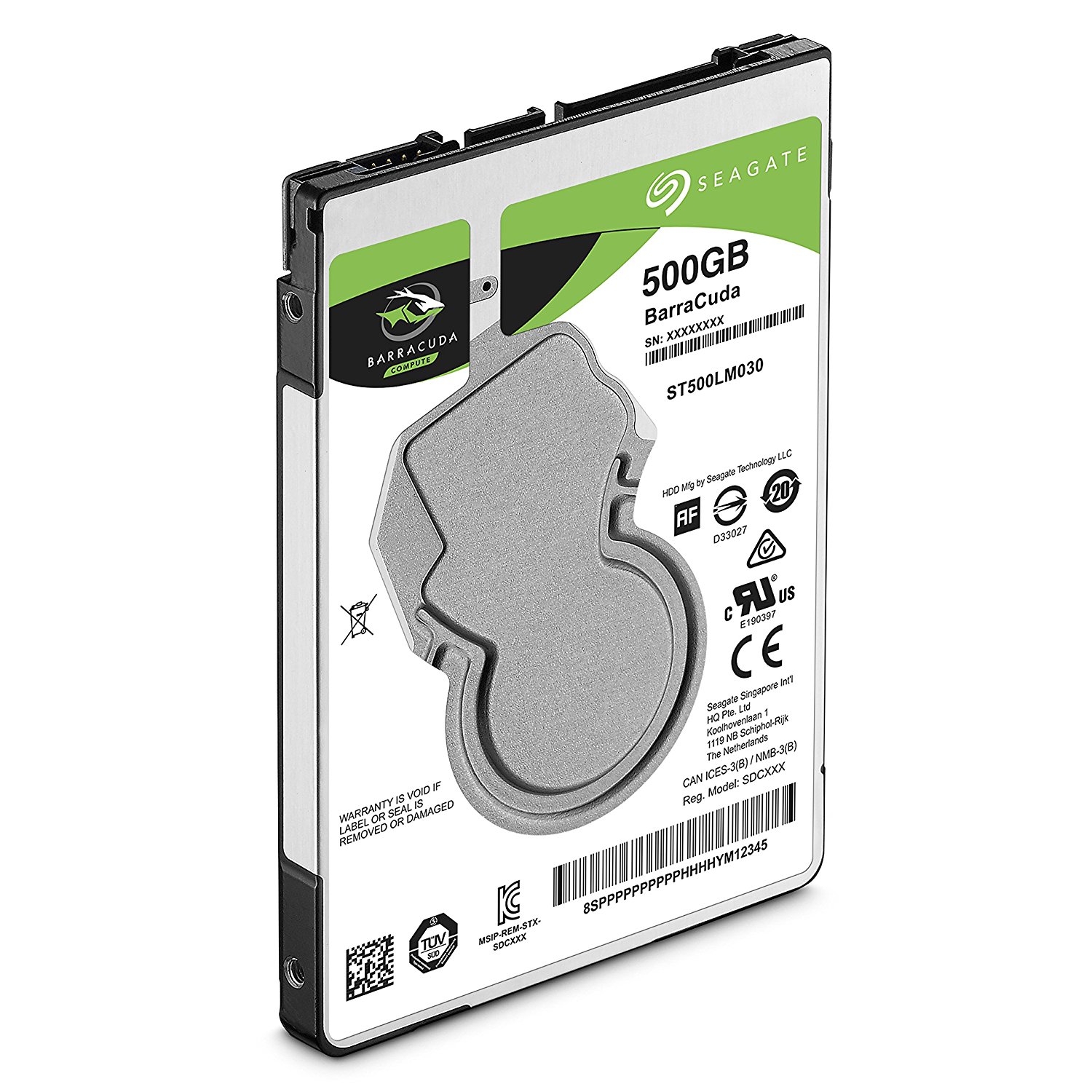

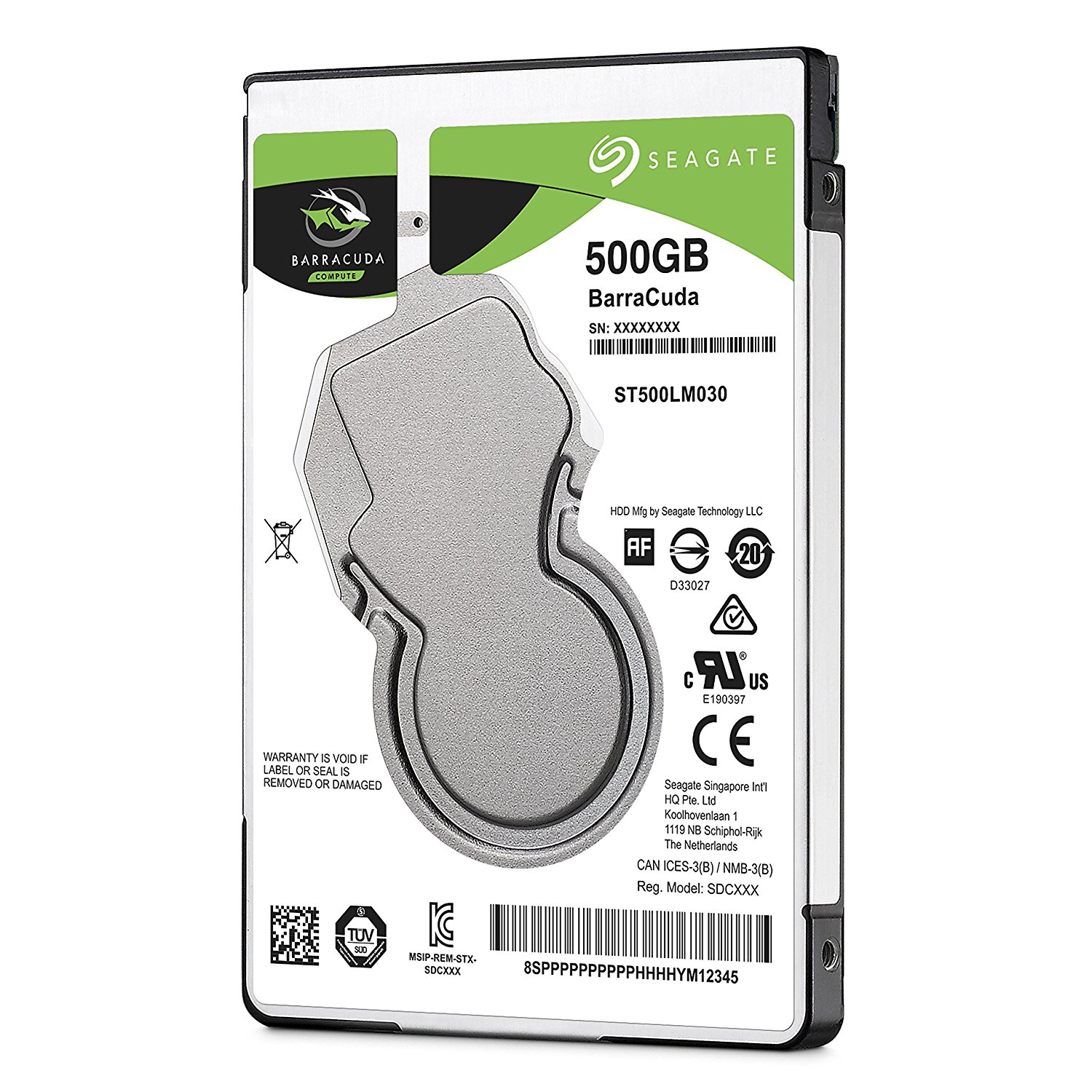

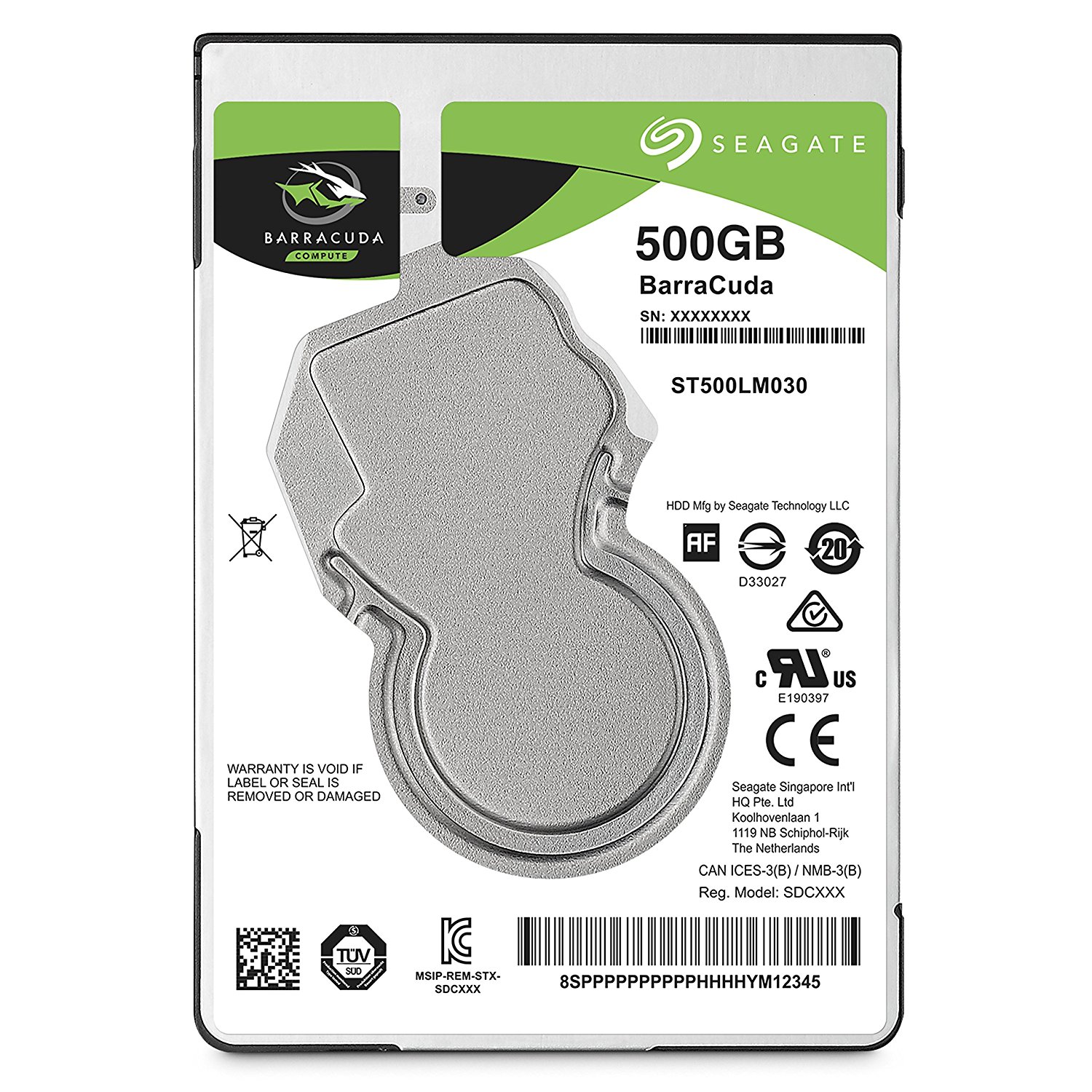

Seagate 500GB Barracuda 5400 RPM
Bank Credit & Debit Card EMI Offer
M D SANTA SALE LIVE NOW for T&Cs CLICK HERE
- Brand: SEAGATE
- Product Code: ST500LM030
- Availability: Out Of Stock
Seagate 500GB Barracuda 5400 RPM
₹3,052
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Specification
|
Capacity |
500GB |
|
Guaranteed sectors |
976,773,168 |
|
Heads |
2 |
|
Disks |
1 |
|
Bytes per sector |
512 (logical) / 4096 (physical) |
|
Recording density |
2276 Kb/in |
|
Track density |
580 Ktracks/in avg |
|
Areal density |
1320 Gb/in |
|
Spindle speed |
5400 RPM |
|
Maximum sustained data rate, OD read |
140 MB/s |
|
Interface |
SATA 6Gb/s |
|
ATA data-transfer modes supported |
PIO modes 0–4 Multiword DMA modes 0–2 Ultra DMA modes 0–6 |
|
Cache buffer |
128 MB |
|
Height (mm/in) |
7.0 (± 0.2) / 0.276 (± 008) |
|
Width (mm/in) |
69.85 (± 0.25) / 2.750 (± 0.010) |
|
Length (mm/in) |
100.35 (+0.20/-0.25) / 3.951 (+0.008/-0.010) |
|
Average latency |
5.6 ms |
|
Startup current, Max (+5V) |
1.0 A |
|
Voltage tolerance (including noise) |
5V ± 5% |
|
Non-Operating (Ambient °C) |
–40° to 70° |
|
Operating ambient temperature (min °C) |
0° |
|
Operating temperature (drive case max °C) |
60° |
|
Temperature gradient |
20°C per hour max (operating) 35°C per hour max (non-operating) |
|
Relative humidity |
5% to 95% (operating) 5% to 95% (non-operating) |
|
Relative humidity gradient (max) |
30% per hour |
|
Wet bulb temperature |
37.7°C max (operating) 40.0°C max (non-operating) |
|
Altitude, operating |
–304.8 m to 3048 m (–1000 ft to 10,000+ ft) |
|
Altitude, non-operating |
–304.8 m to 12,192 m (–1000 ft to 40,000+ ft) |
|
Operational Shock |
400 Gs at 2 ms max |
|
Non-Operational Shock |
1000 Gs at 1 ms max |
|
Vibration, operating |
5–200 Hz: 2.0 Gs 201–500 Hz: 1.0 Gs |
|
Vibration, non-operating |
5–500 Hz: 5.0 Gs |
|
Non-recoverable read errors |
1 per 1014bits read |
|
Warranty |
3 Years |
|
Note |
***Features, Price and specifications are subject to change without notice. |
Features
- 128MB buffer.
- 5400-RPM spindle speed.
- Full-track multiple-sector transfer capability without local processor intervention.
- High instantaneous (burst) data-transfer rates (up to 6Gb/s).
- MTC Technology, proprietary data flow management
- Native Command Queuing (NCQ) with command ordering.
- Perpendicular recording technology.
- Quiet operation. Fluid Dynamic Bearing (FDB) motor.
- SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
- State-of-the-art cache and on-the-fly error-correction algorithms.
- Support for Read Multiple and Write Multiple commands.
- Support for S.M.A.R.T. drive monitoring and reporting.
- Worldwide Name (WWN) capability uniquely identifies the drive
| Storage | |
| Category | Internal HDD |
| Series | Barracuda |
| Capacity | 500GB |
| Form Factor | 2.5 INCH |
| Interface | SATA 6Gb/s |
| Write Speed | N/A |
| Read Speed | N/A |
| TBW | N/A |
| RPM | 5400 |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
