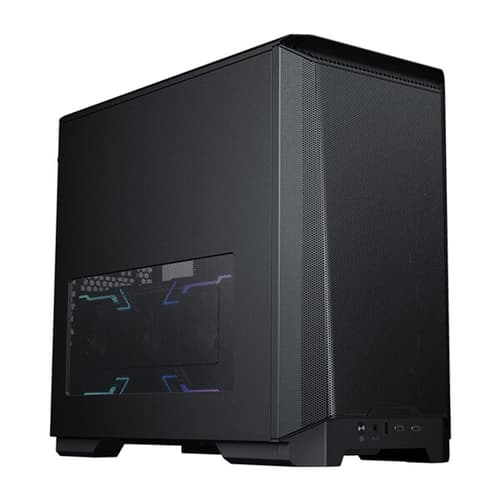

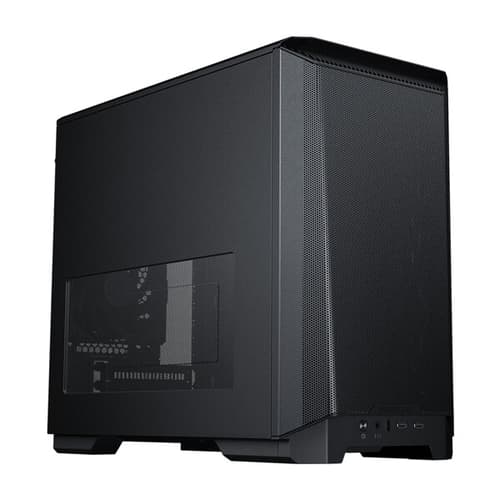

Phanteks Eclipse P200A Performance Edition (M-ITX) Cabinet (Stain Black)
Bank Credit & Debit Card EMI Offer
- Brand: PHANTEKS
- Product Code: PH-EC200AC-BK01
- Availability: Out Of Stock
Phanteks Eclipse P200A Performance Edition (M-ITX) Cabinet (Stain Black)
Offer Price
₹5,099
(29% off ) ₹7,199
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features:
- Ultra-fine Performance Mesh front and side panels for the highest cooling performance
- Spacious open interior supports ATX power supplies,triple slot graphics cards, vertical GPU mounting support (with PH-CBRS-FL15) and up to 240/280mm front and 240mm side radiators
- Storage support for 2x 2.5” SSD and up to 4 HDD
- Compact form-factor, within 30-liter volume
Specification:
| Product Name | Eclipse P200A Performance |
| Model NO | PH-EC200AC-BK01 |
| UPC Code | 886523302179 |
| Dimension (WxHxD) | 205 mm x 365 mm x 400 mm / 8.07 in x 14.37 in x 15.75 in |
| Form Factor | Mini-ITX Tower |
| Material(s) | Steel Chassis |
| Motherboard Support | mini-ITX, mini-DTX |
| Front I/O | 2x USB 3.0, Microphone/Headphone, Reset Button, Power Button |
| Internal Connectors | Power Switch, Reset Switch, Power LED, HD-audio, USB 3.0, Sata |
| Side Window | No |
| PCI slots & Storage Bays | |
| PCI slots | 3 |
| Vertical GPU | Yes 3-slots, Riser Cable sold separately |
| Internal 3.5” bay | 4 (Stackable 3.5” Bracket sold separately) |
| Internal2.5" bay | 4 (4x included) |
| Fan Positions | |
| Front |
|
| Side | 2x120mm fan |
| Rear | 1x120mm fan |
| Bottom | 2x120mm fan |
| Radiator Positions | |
| Front |
|
| Side | Up to 240(120mm radiator) |
| Rear | 120(120mm radiator) |
| Clearances | |
| GPU length | 355 mm / 13.98 in |
| GPU thickness | 3-slot, 65mm |
| CPU cooler height | 165 mm / 6.5 in |
| CPU cooler height with V-GPU | 72mm or 92mm depending on Vertical PCI slot |
| Front Radiator Clearance | 140x325mm |
| Radiator Clearance behind front panel | 240 radiators only, 30mm thickness |
| Side Radiator Clearance | 120x279mm |
| PSU length | 205mm (190mm recommended) |
| Packaging | |
| Dimensions (WxHxD) | 415 x 285 x 485mm / 16.3 x 11.2 x 19.1 in |
| Net Weight | 5.3kg / 12lbs |
| Gross Weight | 6.4kg / 14lbs |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Cabinet | |
| Cabinet Size | MINI-TOWER |
| Expansion Slots | 3 |
| Motherboard Size | M-ITX |
| Max Gpu Length | 355mm |
| Max 3.5" HDD | 4 |
| Max 2.5" SSD | 4 |
| Max Fan Support | 7 |
| Radiator Support | 280mm |
| Warranty | 5 YEARS |
