Features:

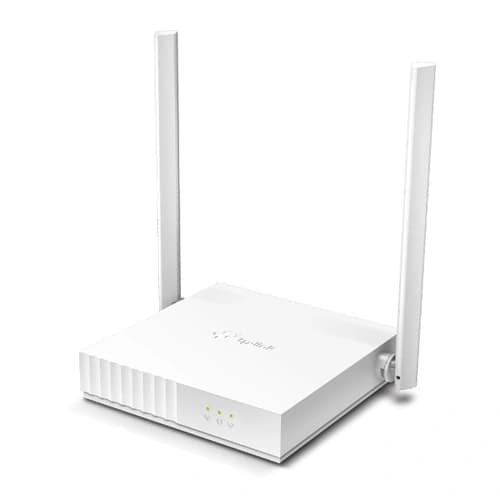

TL-WR820N 300 Mbps Multi-Mode Wi-Fi Router

• 300 Mbps Wi-Fi speed is ideal for daily tasks including browsing, emailing, and video streaming
• IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
• Guest Network provides separate access for guests while securing the host network
• Parental Controls manage when and how connected devices can access the internet
• SPI firewall and wireless encryption protect your home network
• Compatible with IPv6 (Internet Protocol version 6)

Wi-Fi Ideal for Everyday Use

300 Mbps Multi-Mode Wi-Fi Router

High-Speed Wi-Fi

Enjoy web browsing, HD streaming, and downloading with your family. 300 Mbps wireless speeds on the 2.4 GHz band meet your daily needs.

Strong Signal, Great Coverage

Two powerful 5 dBi antennas and 2×2 MIMO enhance wireless transmission to deliver broader wireless coverage with stronger signal intensity.

Multi-Mode 4 in 1

Router Mode (Default)

Plug in an Ethernet cable to instantly create a private wireless network and share internet access with all your Wi-Fi devices.

Access Point Mode

Transform your existing wired network into a wireless one.

Range Extender Mode

Boost the existing wireless coverage in your house.

WISP Mode

Connect to the ISP network wirelessly in areas without wired service.

Smooth Video Streaming

IGMP Proxy/Snooping, Bridge, and Tag VLAN support optimizes IPTV streaming so you can enjoy your favorite movies and shows lag-free.

IPv6 Compatible

Compatible with the most recent Internet Protocol version (IPv6). Keep your router future-proof and enjoy the IPv6 services provided by your ISP.

Elegant Design

Designed to conserve space and complement virtually any décor while delivering stable Wi-Fi to your home.

Easy Setup at Your Fingertips

Set up Wi-Fi in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.

Wireless

Standards and Protocols :Wi-Fi 4
                                        IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds : N300
                     2.4 GHz: 300 Mbps (802.11n)

WiFi Range: 2 Bedroom Houses

                  2× Fixed Antennas

WiFi Capacity : Legacy

Working Modes: Router Mode
                        Access Point Mode
                        Range Extender Mode
                        WISP Mode

SECURITY

Network Security: SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network : 1× 2.4 GHz Guest Network

WiFi Encryption : WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)

HARDWARE

Processor : Single-Core CPU

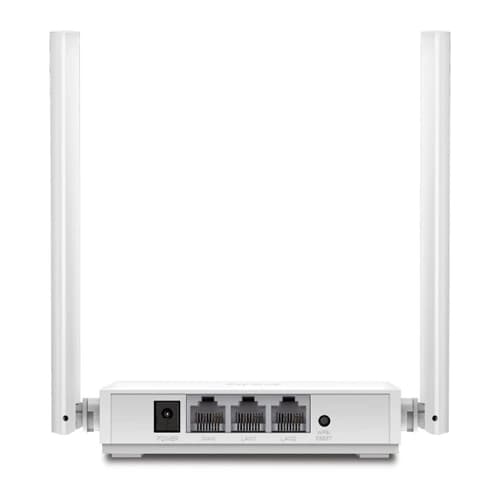

Ethernet Ports: 1× 10/100 Mbps WAN Port
2× 10/100 Mbps LAN Ports
Buttons :Reset Button
Power : 5 V ⎓ 0.6 A

SOFTWARE

Protocols: IPv4
IPv6

Parental Controls : URL Filtering
Time Controls

WAN Types :Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service: QoS by Device

NAT Forwarding : Port Forwarding
Port Triggering
DMZ
UPnP

IPTV : IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP :Address Reservation
DHCP Client List
Server

DDNS : NO-IP
DynDNS
Management Features Tether App
Webpage

OTHER

Network Services Enabled by Default : Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP

DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP

App management
Manage and configure device through app
• Port: 20002   Protocol: UDP

System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications :FCC, CE, RoHS

Environment :Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power : CE:
<20dBm(2.4GHz)
FCC:
<30dBm

WiFi Reception Sensitivity 270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -87dBm@8% PER
6M: -90dBm@10% PER
1M: -98dBm@8% PER

PHYSICAL

Dimensions (W×D×H) : 4.5 × 4.2 × 1.0 in
(115 × 106.7 × 24.3 mm)

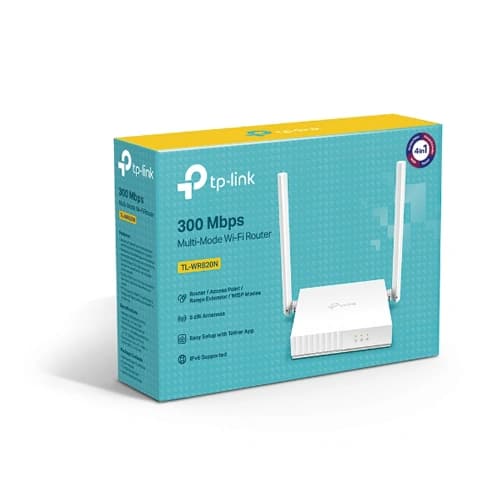

Package Content :Wi-Fi Router TL-WR820N
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

Warranty: 3 Years

Note:Features, Price, Specifications are subject to change without notice.Images use for Representation Purpose Only.
