Features:

The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

• Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
• Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.
• High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
• Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
• Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
• Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
• Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
• Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Dedicated GPU Cooling

Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.

Out-of-the-Box Performance

Comes equipped with 3 x 120mm front-mounted fans for exceptional out-of-the-box cooling performance.

Optimized for Airflow

High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.

Large Radiator Support

Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.

Easily Manage Cables

Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.

10-Fan Capacity

Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.

Top I/O Ports

Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

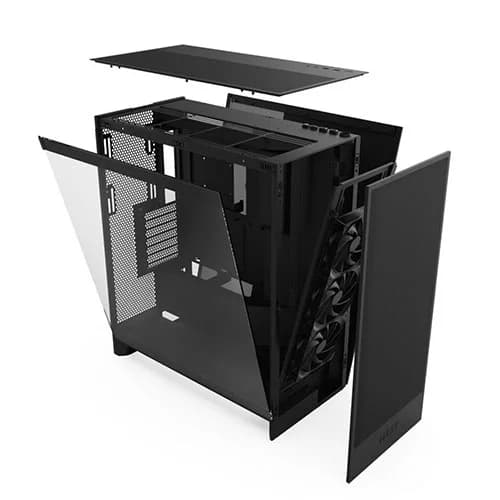

Tool-less Panel Access

Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Tech Specs

Motherboard Support: E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX
Enclosure Type: Mid-Tower
Case Material: SGCC Steel, Dark Tinted Tempered Glass (Black)

Dimensions

• Height (with feet): 544 mm
• Width: 244 mm
• Depth: 468 mm

Compatibility & Clearance:

• CPU Cooler Height: Up to 185 mm
• GPU Length: Up to 410 mm
• PSU Length: Up to 200 mm
• Cable Management: Up to 34.5 mm
• Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness: Up to 57 mm

I/O Ports:

• USB 3.2 Gen 1 Type-A: 2
• USB 3.2 Gen 2x2 Type-C (20 Gbps): 1
• Headset Audio Jack: 1

Expansion Slots: 7

Drive Bays

• 2.5": 2+2
• 3.5": 2

Fan Support

• Front: 3 x 120 mm / 3 x 140 mm (3 x F120Q included)
• Top: 3 x 120 mm / 2 x 140 mm
• Rear: 1 x 120 mm / 1 x 140 mm
• Bottom: 3 x 120 mm

Filters:High-Performance Mesh

Radiator Support

• Front: Up to 420 mm
• Top: Up to 360mm
• Rear: Up to 140mm

Fan Spec

• Model: F120Q Airflow Fan (Case Version)
• Speed: 1,350 ± 150 RPM
• Airflow: 60.2 CFM
• Static: 1.05 mm - H2O
• Noise: 24.1 dBA
• Fan Connector: 3-pin DC
