Nzxt H5 Flow 2024 Edition E-ATX Mid Tower Case
- Brand: NZXT
- Product Code: CC-H52FB-01
- Availability: In Stock
Nzxt H5 Flow 2024 Edition E-ATX Mid Tower Case
Offer Price
₹7,900
(44% off ) ₹13,999
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features:
The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
- Equipped with two 120mm Quiet Airflow fans (CV) —one in front, one in rear—for solid out-of-the-box performance.
- Effortlessly route and conceal cables using the wide channels, hooks, and straps.
H5 Flow
Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.
More Air to the GPU
Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).
Fits Large Radiators
Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.
Optimized for Airflow
Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.
Pre-Installed Fans*
Equipped with two 120mm Quiet Airflow fans (CV)—one in front, one in rear—for out-of-the-box cooling. *Case Version (3-pin DC)

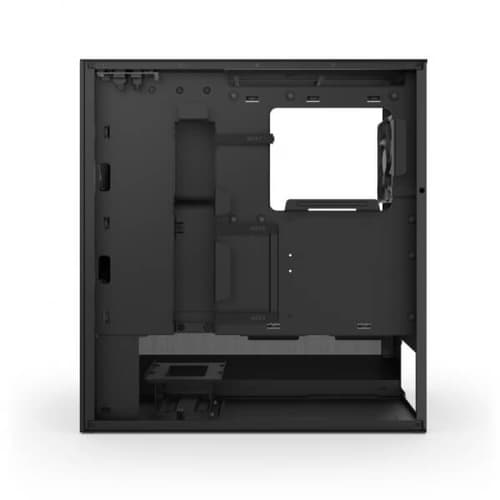

Easy Cable Management
Effortlessly route and conceal cables using the wide channels, hooks, and straps.

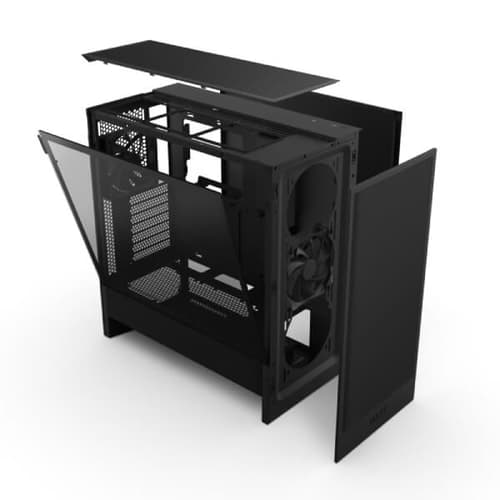

Tool-less Access
Easily open up the front, side, and top panels without any tools.

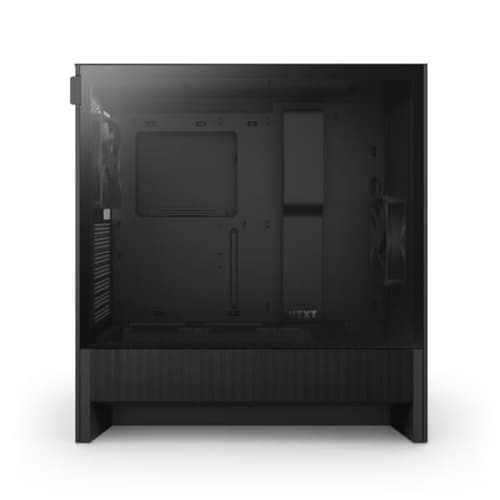

Strong and Sleek
Crafted from thick steel and tempered glass for long-lasting quality.
Specification:
| Model Name | CC-H52FB-01 |
| Key Specs | |
| Motherboard Support | E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX |
| Enclosure Type | Mid-Tower |
| Case Material | SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black) |
| Dimensions | |
| Height (with feet) | 465 mm / 18.31 in |
| Width | 225 mm / 8.86 in |
| Depth | 430 mm / 16.93 in |
| Weight | 7.28 kg / 16.04 lb |
| Compatibility & Clearance | |
| CPU Cooler Height | Up to 170 mm |
| GPU Length | Up to 410 mm |
| PSU Length | Up to 200 mm |
| Cable Management | Up to 28.7 mm |
| Top Radiator | Up to 240 mm (280 mm with low-profile memory) |
| Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness | Up to 55 mm |
| Front Ports | |
| USB 3.2 Type-A | 1 |
| USB 3.2 Type-C | 1 |
| Headset Audio Jack | 1 |
| Expansion Slots | |
| Standard | 7 |
| Vertical | 0 |
| Drive Bays | |
| 2.5" | 2 |
| 3.5" | 1 |
| Fan Support | |
| Front | 3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included) |
| Top | 2 x 120 mm / 2 x 140 mm |
| Bottom | 2 x 120 mm |
| Rear | 1 x 120 mm (1 x F120Q Case Version included) |
| Radiator Support | |
| Front | Up to 360 mm |
| Up to 360 mm | Up to 240 mm (280mm with low-profile memory only) |
| Fan Specs | |
| Model | F120Q (Case Version) |
| Speed | 1,350 ± 150 RPM |
| Airflow | 60.2 CFM |
| Static | 1.05 mm-Hâ‚‚O |
| Noise | 24.1 dBA |
| Fan Connector | 3-pin |
| Warranty | 2Years |
| Note |
*** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice. |
| Cabinet | |
| Cabinet Size | MID-TOWER |
| Color | Black |
| Material | Steel, Tempered Glass |
| Expansion Slots | 7 |
| Motherboard Size | E-ATX,ATX,M-ATX,M-ITX |
| Max CPU Cooler Height | 170mm |
| Max PSU Length | 200mm |
| Max Gpu Length | 410mm |
| Max 3.5" HDD | 1 |
| Max 2.5" SSD | 2 |
| Dust Filters | Top |
| Pre Installed Fans | 2 |
| Max Fan Support | 8 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Front I/O Panel | USB 3.2, USB Type-C, Headset Audio Jack |
| Warranty | 2 Years |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
