Nzxt C550 550 Watt 80 Plus Bronze SMPS
7.5% Instant Discount on HDFC Credit & Debit Card EMI
Tech Yatra Sale T&C - Click Here For Details
Enjoy Instant UPI Discount on Every Transactions.
- Brand: NZXT
- Product Code: PA-5B1BB-IN
- Availability: Out Of Stock

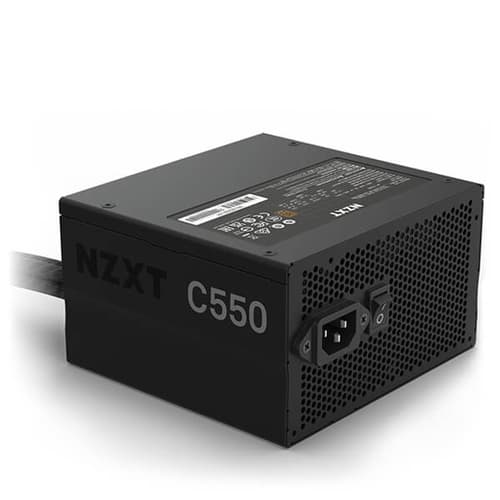

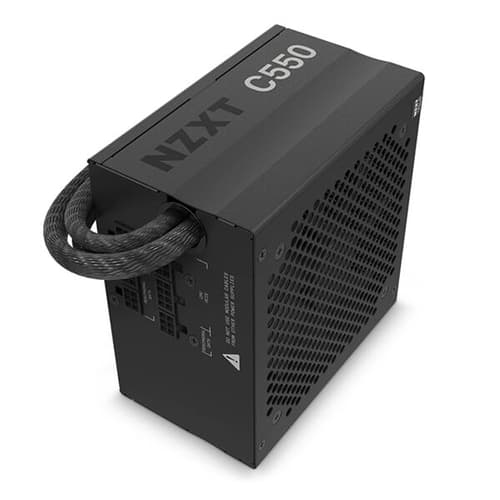

Nzxt C550 550 Watt 80 Plus Bronze SMPS
Offer Price
₹4,530
(35% off ) ₹6,999
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features:
The C550 brings 550 watts of reliable power to your battlestation and is ideal for users who require less power for their builds.
Specification:
| KEY SPECS | |
| Dimensions | W 150mm x L 140mm x H 86mm |
| Material(s) | Steel, PCB and plastic |
| Compliance Standard | ATX12V v2.4 / EPS12V v2.92 |
| AC Input Rating | 100V-240V 8A-4A 50Hz-60Hz |
| GENERAL | |
| Regulations & Certifications (EMC & Safety) | CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE / |
| Hazardous Materials | RoHS & China RoHS |
| DC OUTPUT RATING | |
| Voltage | +3.3V / +5V / +5VSB /+12V / -12V |
| Max Load | 20A / 20A / 2.5A / 45.5A / 0.3A |
| Voltage Regulation | ±5% / ±5% / ±5% / ±5% / ±10% |
| Ripple & Noise | < 50 mV p-p / < 50 mV p-p / < 50 mV p-p / < 120 mV p-p / < 120 mV p-p |
| Output Power (watt) | 110 / 110 / 12.5 / 546 / 3.6 |
| Total | 550 |

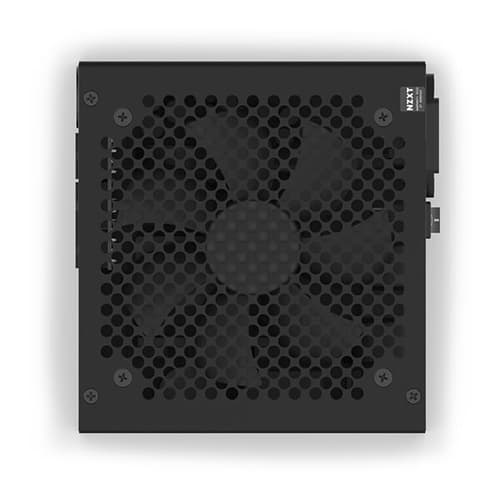

| FAN SPECS | |
| Dimensions | 120 x 120 x 25 (mm) |
| Speed | 2400 ±10% RPM |
| Airflow | 72.90 CFM |
| Noise | <44 dBA |
| Bearing | FDB (Fluid Dynamic Bearing) |
| ENERGY EFFICIENCY | |
| Rating | 80 Plus Bronze |
| 10% loading | 82% |
| 20% loading | 83% |
| 50% loading | 87% |
| 100% loading | 83% |
| OPERATION | |
| PF Correction | [email protected] |
| MTBF | 100,000 hours |
| Operation Temperature | 0 to 40°C |

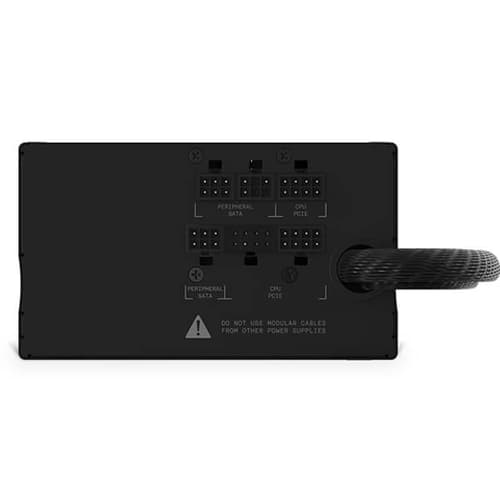

| OUTPUT CONNECTOR(S) | |
| 24-pin ATX Power | 1 |
| 4+4-pin CPU power | 2 |
| 6+2-pin PCIe power | 4 |
| SATA Power | 6 |
| Peripherals | 3 |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Psu | |
| Wattage | 550 Watt |
| Series | POWER SERIES |
| Certification | 80 Plus Bronze |
| Modular | SEMI MODULAR |
| PCIe Connector (6+2) | 4 |
| SATA Connector | 6 |
| Peripheral (4-Pin) | 3 |
| Warranty | 5 Years |
