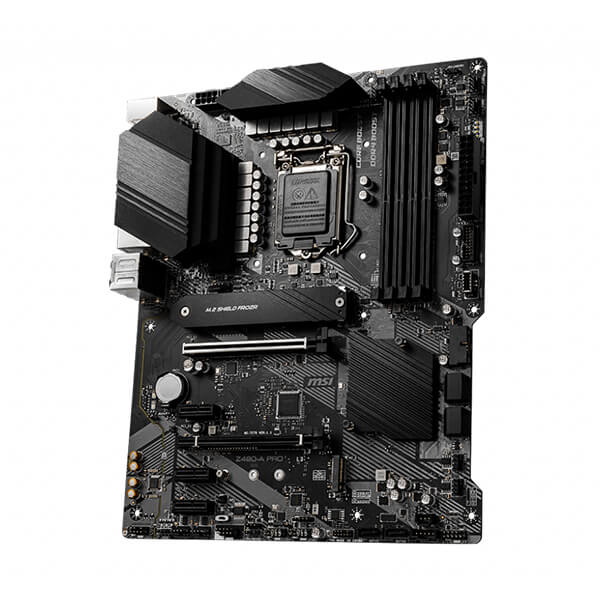

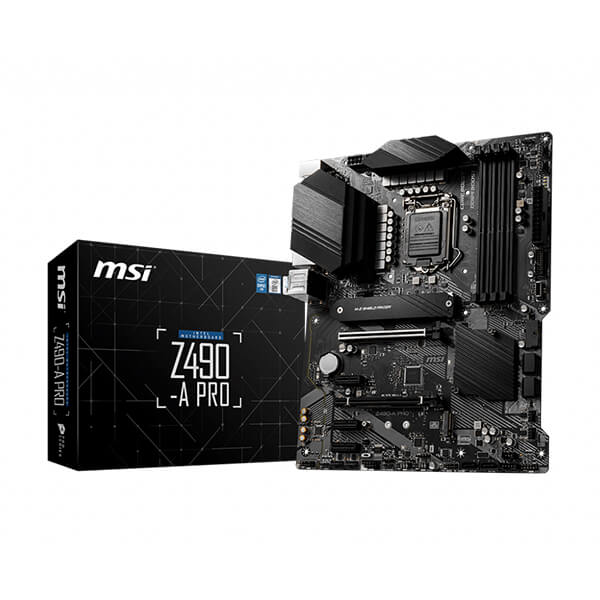

MSI Z490-A PRO
MSI Z490-A PRO
MSI Z490-A PRO
MSI Z490-A PRO

MSI Z490-A PRO

/ Write a review

HDFC bank Offer



  • Brand: MSI
  • Product Code: Z490-A-PRO
  • Availability: Out Of Stock

MSI Z490-A PRO

Offer Price

₹13,140

(43% off ) ₹23,250
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 4800(OC) MHz
  • Set Core Power Free: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™

Specification

Processor

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket

1 Please go to intel.com for compatibility information.

2 Onboard graphics output are disabled when using the F SKU processors.
Chipset Intel® Z490 Chipset
Memory
  • 4 x DDR4 memory slots, support up to 128GB
    • Supports 1R 2133/2666/2933 MHz
      • 1DPC 1R Max speed up to 4800+ MHz
      • 1DPC 2R Max speed up to 4266+ MHz
      • 2DPC 1R Max speed up to 4400+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe 3.0 x16 slot (from CPU)
  • 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode)
  • 3x PCIe x1 slots (from PCH)
Onboard Graphics
  • 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
  • 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
Multi-GPU Supports 2-Way AMD® CrossFire™ Technology
Storage

Intel® Z490 Chipset

  • 6x SATA 6Gb/s ports 1
  • 2x M.2 slots (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
    • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 2
    • Intel® Optane™ Memory Ready 3
    • Supports Intel® Smart Response Technology for Intel Core™ processors
  1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
  2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
  3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID

Intel® Z490 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB

Intel® Z490 Chipset

  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel)
  • 7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
Audio

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio
LAN 1x Realtek® RTL8125B-CG 2.5G LAN Controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water pump connector
  • 6x 4-pin system fan connectors
  • 1x front panel audio connector
  • 2x system panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x serial port connector
  • 1x TPM module connector
  • 1x TBT connector 1
  1. Thunderbolt card need support RTD3
Back panel ports
  1. Keyboard / Mouse
  2. 2.5G LAN
  3. Audio Connectors
  4. USB 2.0
  5. HDMI
  6. DisplayPort
  7. USB 3.2 Gen 2 10Gbps Type-A + Type-C
  8. USB 3.2 Gen 1 5Gbps Type-A
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting 9 mounting holes
Operating System Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1200
Chipset Z490
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX
Warranty 3 Years

Questions and Answers

Q. Before shipping, Is it possible for the seller to update the bios such that 11th gen CPU are supported out of the box. 13/05/2023

A. Yes we can.

Dominic P E (Verified Buyer )

Q. Does it support rtx 3060 31/03/2022

A. Yes.

Vidhya (Verified Buyer )

Q. Is GIGABYTE Z490 UD AC or MSI Z490-A PRO is better for i5 10600k....,need to overclock 21/10/2020

A. Both the products are best at their range you can compare them on our website and get the best one for yourself.
We do not recommend for OC.

Abishek Menon (Verified Buyer )

Q. Which one is better MSI Z490-A PRO or Gigabyte Z490M? 20/08/2020

A. Both are good.

Anindo Mazumdar (Verified Buyer )
