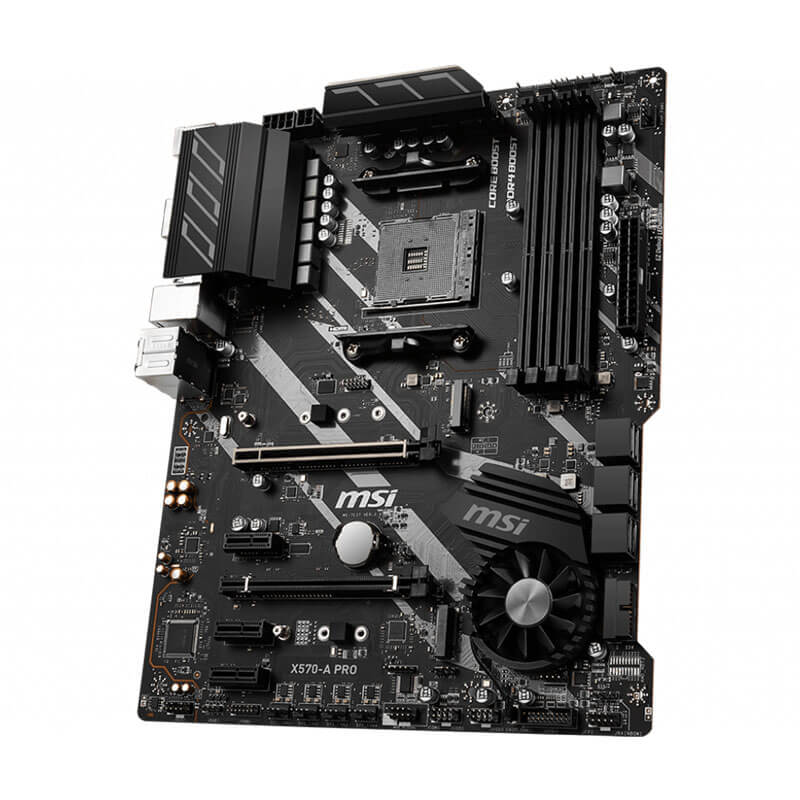

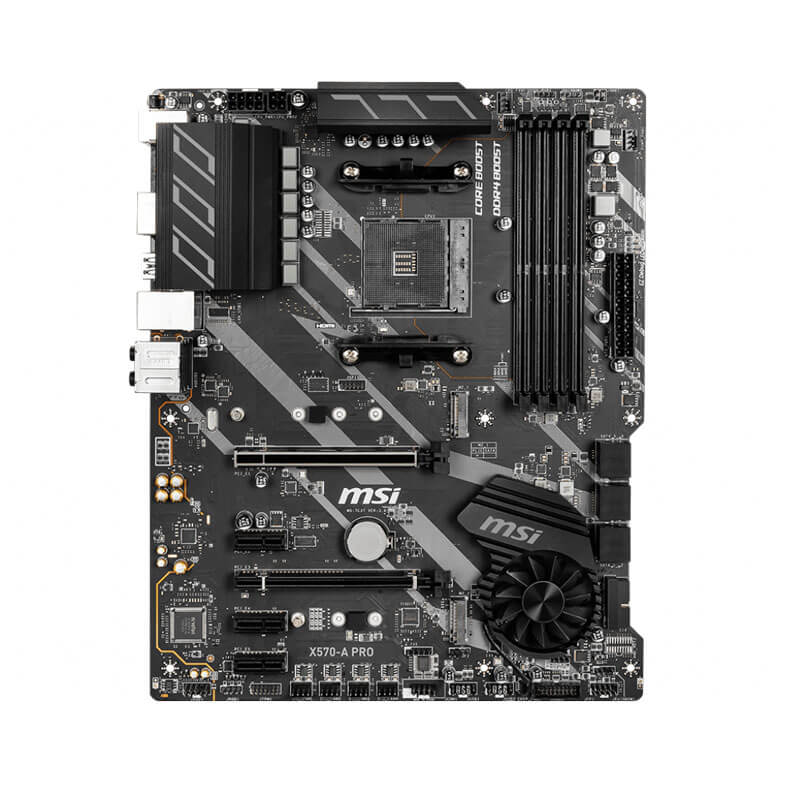

Msi X570-A Pro ATX Motherboard
Msi X570-A Pro ATX Motherboard
Msi X570-A Pro ATX Motherboard
Msi X570-A Pro ATX Motherboard
Msi X570-A Pro ATX Motherboard
Msi X570-A Pro ATX Motherboard
Msi X570-A Pro ATX Motherboard
Msi X570-A Pro ATX Motherboard
Msi X570-A Pro ATX Motherboard
Msi X570-A Pro ATX Motherboard

Msi X570-A Pro ATX Motherboard

/ Write a review

Bank Card Offer
  • Brand: MSI
  • Product Code: X570-A-PRO
  • Availability: Out Of Stock

Msi X570-A Pro ATX Motherboard

Offer Price

₹16,700

(31% off ) ₹24,150
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.



FEATURES



Inspired from architectural design, with Lightning Gen 4 PCIe and M.2 solution, Frozr Heasink, Core Boost, DDR4 Boost, Audio Boost 4, USB 3.2 Gen2 connector

  • Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
  • Supports 4 DIMMs, Dual Channel Memory DDR4
  • Lightning Gen 4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed and performance.
  • Frozr Heatsink Design : Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
  • Set Core Power Free: Core Boost, 8+4 pin CPU power connectors, DDR4 Boost
  • Audio Boost 4 with NAHIMIC: Reward your ears with studio grade sound quality.
  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
  • AMD Turbo USB 3.2 Gen2: Powered by AMD USB 3.2 Gen2 controller, ensures an uninterrupted connection with more stability and fastest USB speeds

SPECIFICATIONS





PROCESSOR Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
CHIPSET AMD® X570 Chipset
MEMORY
  • 4 DDR4 memory slots, support up to 128GB (depending on the processor)
    • 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
    • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • ports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
  • Please refer to Compatibility for more information on compatible memory
SLOTS
  • 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
    • 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
    • 2nd Gen AMD Ryzen™ support PCIe 3.0 x16 mode
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
  • 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
  • 3 x PCIe 3.0 x1 slots
  • PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
  • The speeds may vary for different devices
ONBOARD GRAPHICS
  • 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
  • Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
  • Maximum shared memory of 2048 MB
MULTI-GPU Supports 2-Way AMD® CrossFire™ Technology
STORAGE
  • 6 x SATA 6Gb/s ports
  • 2 x M.2 slot (Key M)
    • M2_1 slot (from AMD® Processor)
      • Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
      • Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (from AMD® X570 Chipset)
      • Supports PCIe 3.0 x4 and SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
RAID Supports RAID 0, RAID 1 and RAID 10
USB

AMD® X570 Chipset

  • 6 x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors)
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® Processor

  • 2 x USB 3.2 Gen 2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
  • 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports Optical S/PDIF output
LAN 1 x Realtek® 8111H Gigabit LAN Controller
INTERNAL CONNECTORS
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water-pump connector
  • 4 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x TPM module connector
  • 1 x Serial port connector
  • 1 x Clear CMOS jumper
  • 1 x Chassis Intrusion connector
  • 2 x 4-pin RGB LED connectors
  • 2 x 3-pin RAINBOW LED connectors
  • 4 x EZ Debug LEDs

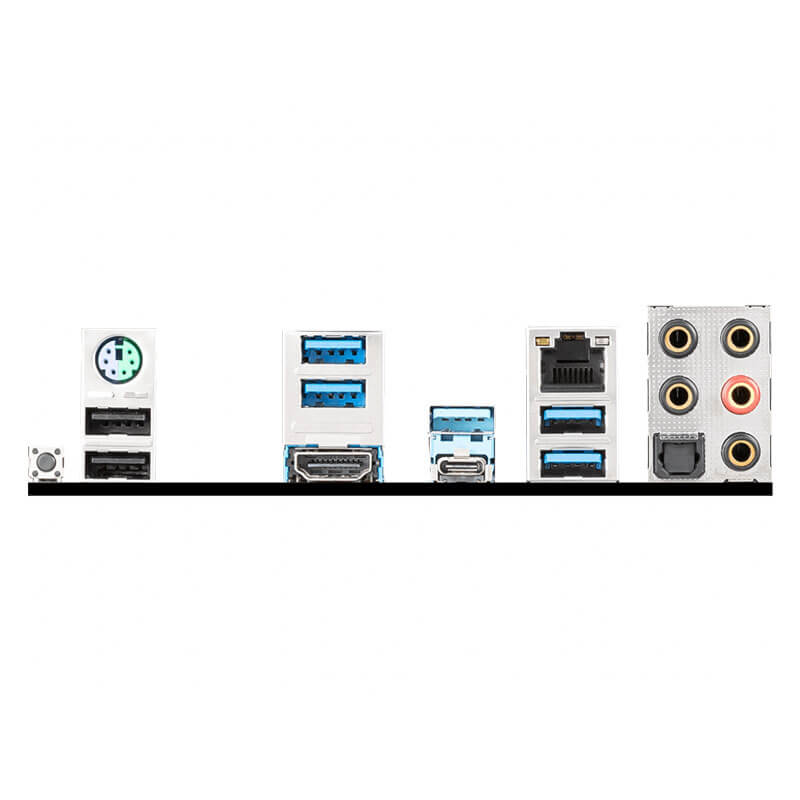

BACK PANEL PORTS
  • Keyboard / Mouse
  • USB 3.2 Gen1 Type-A
  • LAN Port
  • HD Audio Connectors
  • Flash BIOS Button
  • USB 2.0 Ports
  • HDMI Port
  • USB 3.2 Gen2 Ports (Type-A + C)
  • USB 3.2 Gen1 Type-A Ports
  • Optical S/PDIF out
DIMENSIONS
  • 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
  • ATX Form Factor
MOUNTING 9 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform AMD
Socket AM4
Chipset X570
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX

Questions and Answers

Q. Can i overclock with this mother board with ryzen 5 5600 x 02/04/2022

A. Not recommended.

Vidhya (Verified Buyer )

Q. Does it support rtx 3060 and ryzen 5 5600 x does this mother board comes with bios update or we need to update 01/04/2022

A. Will support, BIOS update is needed.

Vidhya (Verified Buyer )

Q. Please suggest supported GPUs. I am looking for 2GB GPU only. 25/09/2021

A.

https://mdcomputers.in/graphics-card?bfilter=a84:1573;

Rahul D (Verified Buyer )

Q. Does this motherboard supports AMD ryzen 5600x? 07/11/2020

A. After BIOS update it will support.

rohit giri (Verified Buyer )

Q. When this product will be back in stock???!!! 05/06/2020

A. In stock now!!

Saptarshi Chatterjee (Verified Buyer )
