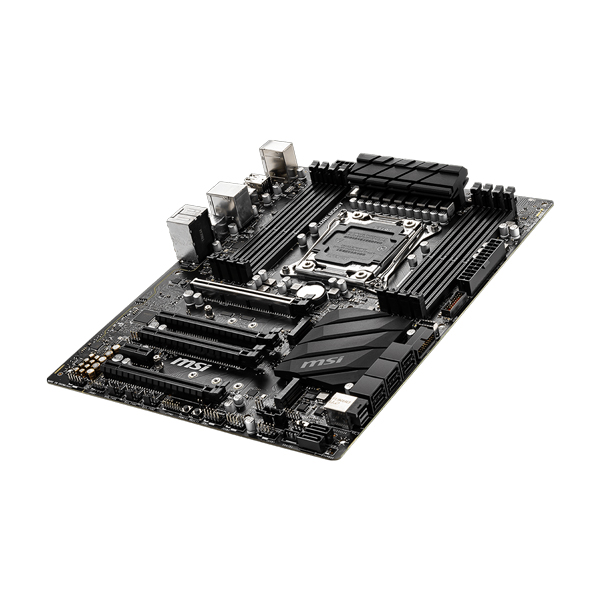

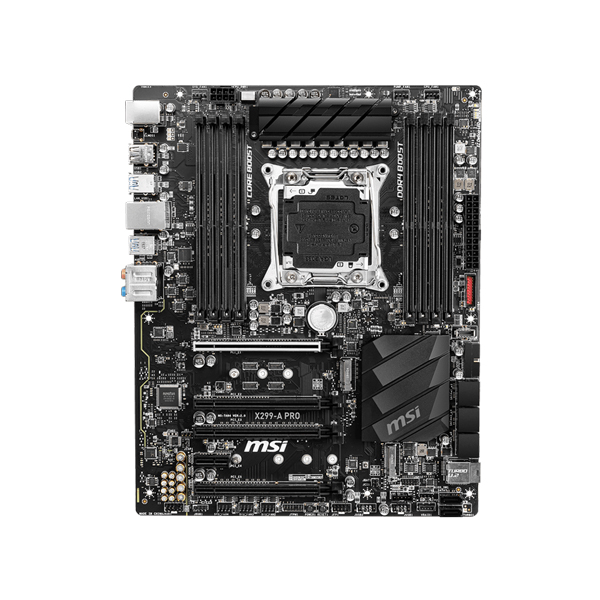

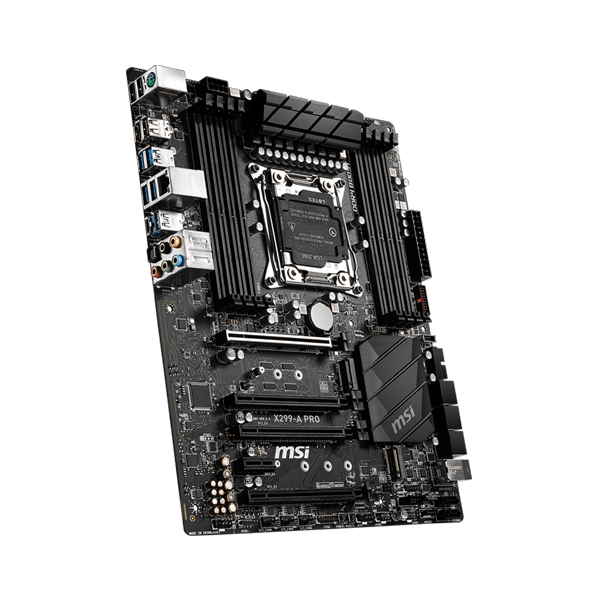

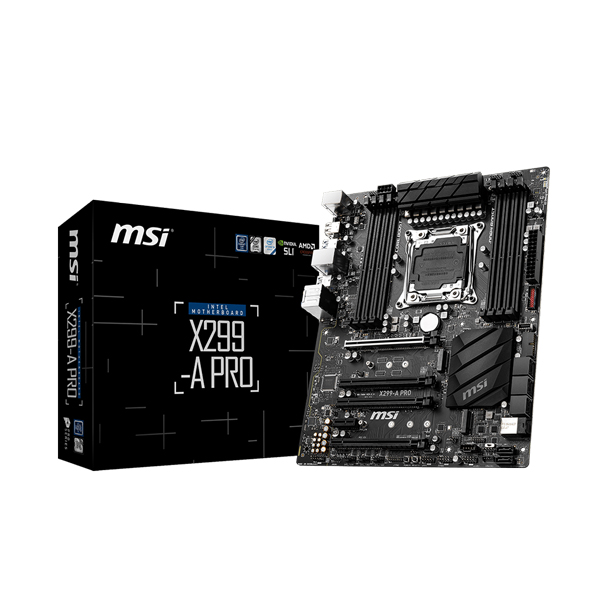

Msi X299-A Pro Motherboard

/ Write a review

HDFC bank Offer



  • Brand: MSI
  • Product Code: X299-A-PRO
  • Availability: Out Of Stock

Msi X299-A Pro Motherboard

₹23,500

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.
Processor Supports Intel® Core™ X-series 10000/ 9000/ 78xx (above) processors for socket LGA2066
Chipset Intel® X299 Chipset
Memory
  • 8 x DDR4 memory slots, support up to 256GB
    • Supports DDR4 4200+(OC)/ 4000(OC)/ 3800 (OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133 MHz
  • Quad channel memory architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • Supports non-ECC UDIMM memory
  • Supports un-buffered memory
Slots
  • 4x PCIe 3.0 x16 slots
    • Support x16/x4/x16/x8 mode with the 48-lane CPU
    • Support x16/x4/x16/x8 mode with the 44-lane CPU
    • Support x16/x4/x8/x4 modes with the 28-lane CPU
    • Support x8/x4/x8/x0, x8/x4/x4/x4 modes with the 16lane CPU
  • 1x PCIe 3.0 x1 slot
Multi GPU
  • Supports NVIDIA® SLI™ Technology
  • Supports AMD® CrossFire™ Technology
Storage

Intel® X299 Chipset

  • 8 x SATA 6Gb/s ports
  • 2 x M.2 slot (Key M)
    • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
    • M2_1 slot supports 2242/ 2260 /2280 storage devices
    • M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices
    • Supports Intel® Optane™ Memory Ready for all M.2 slots
  • 1 x U.2 port
    • Supports PCIe 3.0 x4 NVMe storage
  • Supports Intel® Smart Response Technology
Raid

Intel® X299 Chipset

  • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB

USB 2.0 Hub GL850G

  • 3x USB 2.0 (High-speed USB) ports available through the internal USB connectors.

ASMedia® ASM3142 Chipset

  • 2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)

  • 1x USB 3.2 Gen2 Type-C port internal USB connector

Intel® X299 Chipset

  • 8x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

  • 5x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 1 port available

Audio



1x Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN 1 x Intel I219-V Gigabit LAN controller
Internal Connectors
  • 1 x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 1x USB 3.2 Gen2 Type-C port
  • 1x 4-pin CPU fan connector
  • 1x 4-pin Water Pump connector
  • 4x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x Virtual RAID on CPU connector
  • 1x Thunderbolt Add-on Card Connector
  • 1x RGB extension connector

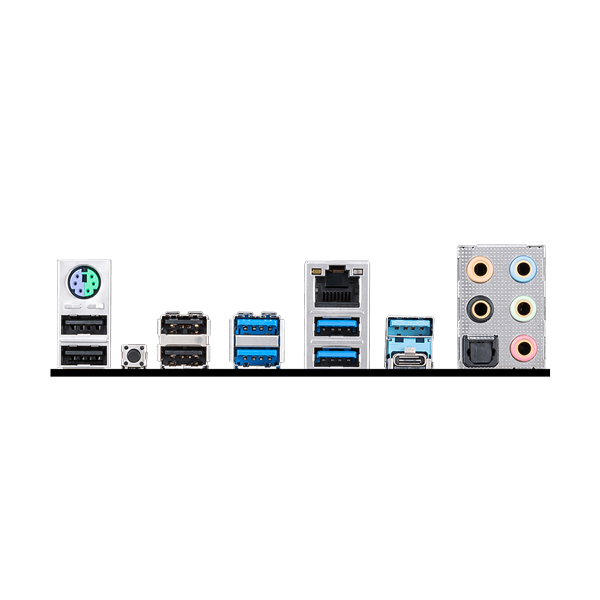

Back Panel Ports
  1. Keyboard / Mouse
  2. USB 2.0
  3. USB 3.2 Gen1 Type-A
  4. Gigabit LAN
  5. Audio Connectors
  6. USB 2.0
  7. Clear CMOS Button
  8. USB 3.2 Gen1 Type-A
  9. USB 3.2 Gen2 Type-A+C
  10. Optical S/PDIF out
Dimensions
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
Mounting holes 9 Mounting holes
Operating System Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and specifications are subject to change without notice.



Motherboard
Platform INTEL
Socket LGA2066
Chipset X299
Max Memory Support 256 GB
Supported Memory Type DDR4
Form Factor ATX
