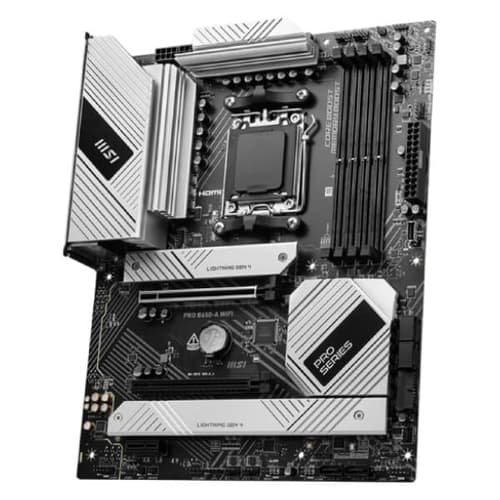

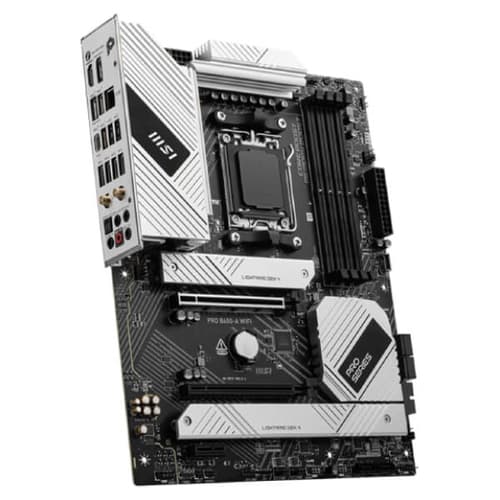

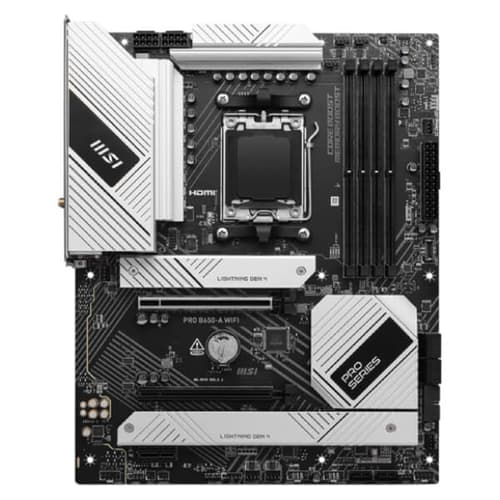

MSI Pro B650-A WIFI ATX Motherboard

/ Write a review

  • Brand: MSI
  • Product Code: PRO-B650-A-WIFI
  • Availability: In Stock

MSI Pro B650-A WIFI ATX Motherboard

Offer Price

₹16,999

(50% off ) ₹33,999
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features:

  • Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 7600+MHz (OC)
  • Enhanced Power Design: 14+2 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Lightning Fast experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specification:

Model PRO B650-A WIFI
Chipset Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7600+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

Onboard Graphics 1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4 port with HBR3, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G
* The M2_2 slot will be unavailable when using Ryzen™ 5 8500G processor
** M2_3 & PCI_E2 share the bandwidth. M2_3 will run at x2 speed and PCI_E2 will run at x2 speed when installing devices in both slots.
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
* SATA_A1 & SATA_A2 do not support RAID function.
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN Realtek RTL8125B 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.

Internal IO
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 6x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports
LED FEATURE 4x EZ Debug LED

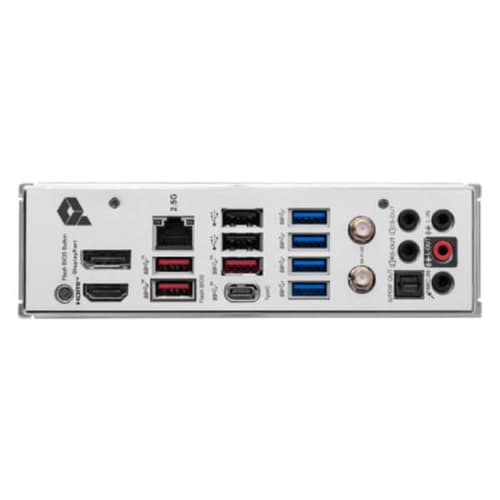

BACK PANEL PORTS
  • DisplayPort
  • 2.5G LAN
  • USB 2.0
  • USB 5Gbps Type-A
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • Flash BIOS Button
  • HDMI™
  • USB 10Gbps Type-A
  • USB 20Gbps Type-C
  • Optical S/PDIF OUT
OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
PCB Info ATX
243.84mmx304.8mm
Warranty 3 Years
Note

*** Images are for Representation purposes only

*** Features, Price, Specifications are subject to change without notice.

Motherboard
Platform AMD
Socket AM5
Cpu Type Ryzen 9000,Ryzen 8000,Ryzen 7000
Chipset B650
Memory Speed up to 7600+
Max Memory Support 256 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Supports non-ECC, un-buffered memory
Supports AMD EXPO
Graphics Port 1x HDMI,1x DisplayPort
Expansion Slots 2x PCI-E x16 slot
• Supports x16/x2 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x2 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x2 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Wireless Networking WiFi 6E,Bluetooth 5.3
Back Panel I/O Ports DisplayPort
2.5G LAN
USB 2.0
USB 5Gbps Type-A
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI
USB 10Gbps Type-A
USB 20Gbps Type-C
Optical S/PDIF OUT
Internal I/O Connector 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Form Factor ATX
Warranty 3 Years
Note

Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
