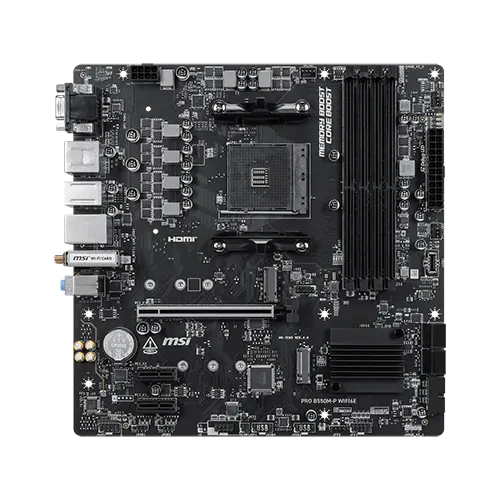

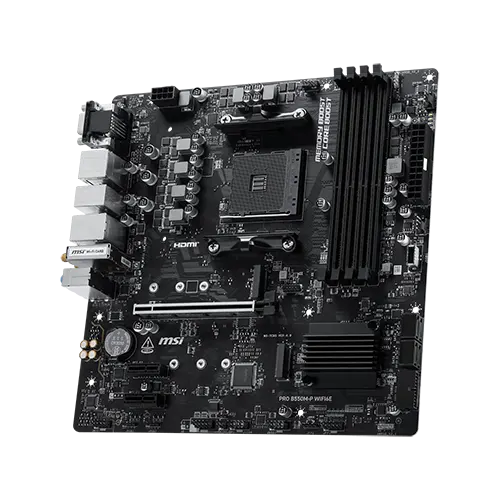

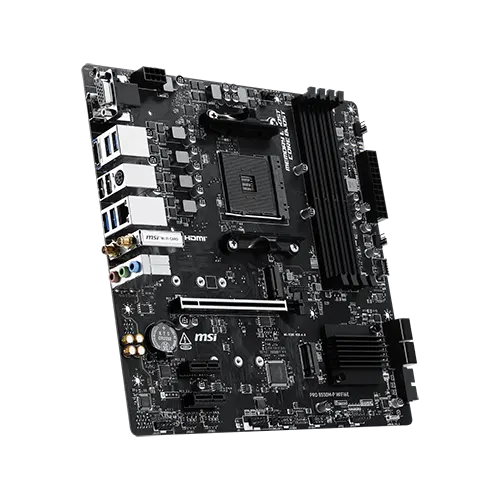

Msi Pro B550M-P WIFI6E Motherboard
Msi Pro B550M-P WIFI6E Motherboard
Msi Pro B550M-P WIFI6E Motherboard
Msi Pro B550M-P WIFI6E Motherboard
Msi Pro B550M-P WIFI6E Motherboard
Msi Pro B550M-P WIFI6E Motherboard
Msi Pro B550M-P WIFI6E Motherboard
Msi Pro B550M-P WIFI6E Motherboard
Msi Pro B550M-P WIFI6E Motherboard
Msi Pro B550M-P WIFI6E Motherboard

Msi Pro B550M-P WIFI6E Motherboard

/ Write a review

  • Brand: MSI
  • Product Code: PRO-B550M-P-WIFI6E
  • Availability: In Stock

Msi Pro B550M-P WIFI6E Motherboard

Offer Price

₹9,450

(37% off ) ₹14,999
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

PRO B550M-P WIFI6E is engineered with PCIe 4.0 M.2, Frozr AI Cooling, Front Type-C, and the Wi-Fi 6E solution, ready for the AMD Ryzen 5000 series processors.

  • Supports AMD Ryzenâ„¢ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors
  • Supports DDR4 Memory, up to 4400+ MT/s (OC)
  • Lightning Fast Experience: PCIe 4.0 slot and Lightning Gen4 x4 M.2
  • EZ DIY: EZ Debug LED and EZ Mounting
  • Wi-Fi 6E Solution: the ideal solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio-grade sound quality
  • MSI Center: A brand-new software which integrates all MSI exclusive tools with user-friendly user interface.
Motherboard
Platform AMD
Socket AM4
Cpu Type Ryzen 5000, Ryzen 5000-G, Ryzen 4000-G, Ryzen 3000,Ryzen 3000-G
Chipset B550
Memory Speed up to 4400+
Max Memory Support 128 GB
Supported Memory Type DDR4
Channel Supported Dual Channel
Memory Feature

4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4400+ MT/s
• 1DPC 2R Max speed up to 3733+ MT/s
• 2DPC 1R Max speed up to 3866+ MT/s
• 2DPC 2R Max speed up to 3466+ MT/s

Supports JEDEC Speed
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Memory Overclocking by A-XMP OC mode

• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information visit MSI official website
Graphics Port 1x HDMI,1x VGA
Expansion Slots

1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
*The supported specification depends on installed processor.
Wireless Networking Wi-Fi 6E,Bluetooth 5.3
Back Panel I/O Ports

VGA

Keyboard / Mouse

Wi-Fi / Bluetooth

DisplayPort

USB 2.0

USB 5Gbps Type-A

LAN port

Audio connectors

HDMI
Internal I/O Connector

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Form Factor Micro-ATX
Warranty 3 Years
Note

Features, Price, Specifications are subject to change without notice. Images used for representation purposes only
