• Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel ® Core™ Processors, Pentium® Gold and Celeron® Processors
• Processor socket LGA1200

• 4x DDR4 memory slots, support up to 128GB¹
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)¹
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel ® CPU (by JEDEC & POR)¹
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 5333 MHz
  • 1DPC 2R Max speed up to 4700+ MHz
  • 2DPC 1R Max speed up to 4400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

• 3x PCIe x16 slots
  • Support x16/x4/x4
  • PCI_E1 (From CPU)
    • Supports up to PCIe 4.0 for 11th Gen Intel® CPU
    • Supports up to PCIe 3.0 for 10th Gen Intel® CPU
  • PCI_E3 & PCI_E5 (From Z590 chipset)
    • Support up to PCIe 3.0
• 2x PCIe 3.0 x1 slots (From Z590 chipset)
  PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot.

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

• Supports 2-Way AMD® CrossFire™ Technology

• 6x SATA 6Gb/s ports (From Z590 Chipset)
• 3x M.2 slots (Key M)
  • M2_1 slot (From CPU)
    • Available only on 11th Gen Intel® CPU
    • Supports up to PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 & M2_3 slots (From Z590 Chipset)
    • Support up to PCIe 3.0 x4 and SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready
• Supports Intel® Smart Response Technology for Intel Core ™ processors

1. PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
2. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.
3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices

Intel® Z590 Chipset

• 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A port on the back panel and 2 ports are available through the internal connectors)
• 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 3 Type-A ports on the back panel)

Hub-GL850G

• 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports are available through the internal connectors)

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 1x 6-pin ATX PCIE power connector
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Clear CMOS jumper
• 1x TBT connector (supports RTD3)

• 2x 4-pin RGB LED connectors
• 2x 3-pin RAINBOW LED connectors
• 1x EZ LED Control switch
• 4x EZ Debug LED

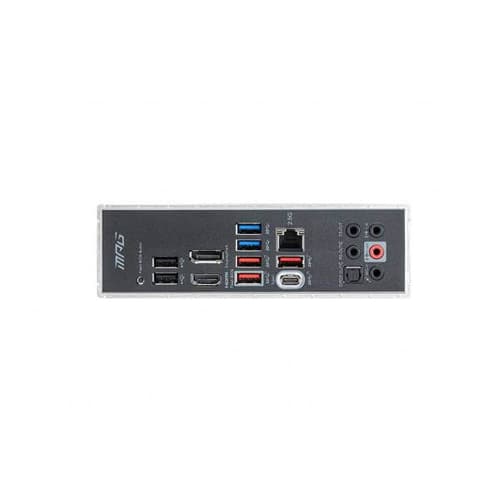

• DisplayPort
• USB 3.2 Gen 1 5Gbps Type-A
• 2.5G LAN
• Audio Connectors
• Flash BIOS Button
• USB 2.0
• HDMI
• USB 3.2 Gen 2 10Gbps Type-A
• USB 3.2 Gen 2x2 20Gbps Type-C
• Optical S/PDIF Out

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
