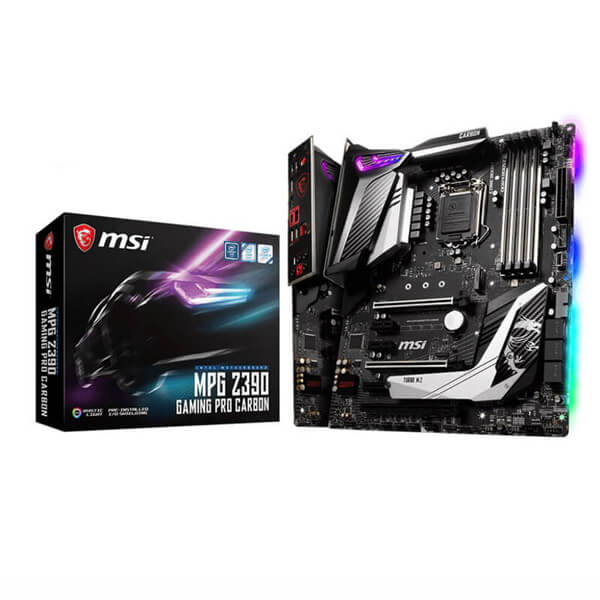

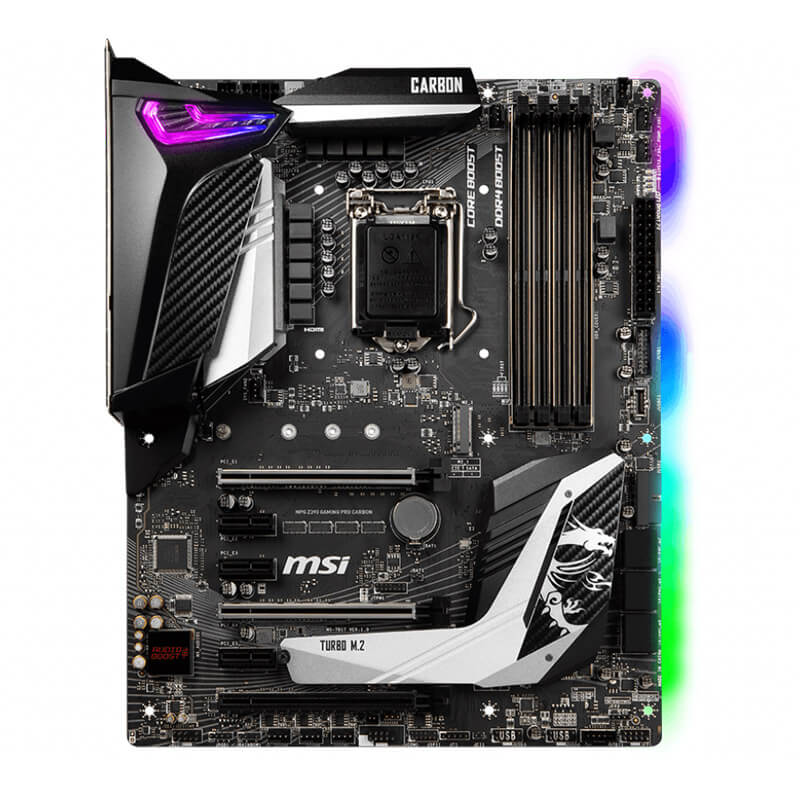

Msi MPG Z390 GAMING PRO CARBON
Msi MPG Z390 GAMING PRO CARBON
Msi MPG Z390 GAMING PRO CARBON
Msi MPG Z390 GAMING PRO CARBON
Msi MPG Z390 GAMING PRO CARBON
Msi MPG Z390 GAMING PRO CARBON
Msi MPG Z390 GAMING PRO CARBON
Msi MPG Z390 GAMING PRO CARBON
Msi MPG Z390 GAMING PRO CARBON
Msi MPG Z390 GAMING PRO CARBON

Msi MPG Z390 GAMING PRO CARBON

/ Write a review

HDFC bank Offer



  • Brand: MSI
  • Product Code: MPG-Z390-GAMING-PRO-CARBON
  • Availability: Out Of Stock

Msi MPG Z390 GAMING PRO CARBON

₹20,100

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

Inspired by the curve and shape of supercars, offers colorful customization with MSI Mystic Light RGB, tuned for better performance by Core boost, DDR4 Boost, M.2 Shield Frozr, Intel Gaming LAN, Front USB 3.1 Gen2 connector



  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
  • Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. M.2 Shield Frozr, Turbo USB 3.1 GEN2
  • Set Core Power Free: Core Boost, 8+4 pin CPU power connector, Game Boost, DDR4 Boost with Steel Armor
  • AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

Specifications

PROCESSOR Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
CHIPSET Intel® Z390 Chipset
MEMORY
  • 4 x DDR4 memory slots, support up to 128GB
    • Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
SLOTS
  • 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
  • 3 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hz
  • 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

*No Display support when using the Processor model with suffix “F”
MULTI-GPU
  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology
STORAGE

Intel® Z390 Chipset

  • 6 x SATA 6Gb/s ports1
  • 2 x M.2 slot (Key M)1
    • Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • Intel® Optane™ Memory Ready2
  1. M.2 slots and SATA ports share the bandwidth.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID

Intel® Z390 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 for M.2 PCIe storage devices
USB

Intel® Z390 Chipset

  • 5x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel, 1 Type-C internal connector)
  • 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
  • 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO

Realtek® ALC1220P-VB2 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1 x Intel® I219-V Gigabit LAN controller
INTERNAL CONNECTORS
  • 1 x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 1x USB 3.1 Gen2 Type-C port
  • 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin Water Pump connector
  • 5x 4-pin system fan connectors
  • 1x Serial port connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Thunderbolt Add-on Card Connector
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 2x 4-pin RGB LED connectors
  • 1x 3-pin RAINBOW LED connector
  • 1x 3-pin CORSAIR LED connector
BACK PANEL PORTS
  1. PS/2 Combo Port
  2. LAN
  3. HD Audio Connectors
  4. USB 2.0
  5. DisplayPort
  6. HDMI
  7. USB 3.1 Gen2 Type-A + C
  8. USB 3.1 Gen2 Type-A
  9. Optical S/PDIF out
DIMENSIONS
  • 9.6 in. x 12 in. (24.3 cm x 30.4 cm)
  • ATX Form Factor
MOUNTING 9 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1151
Chipset Z390
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX
Warranty 3 Years

Questions and Answers

Q. i have pressed notify already
still can u tell me how long i need to wait for this item's stock? 10/01/2020

A. It is in stock now!!!

ajeesh yacob (Verified Buyer )

Q. When will it be back in stock? I would like to buy it. 13/09/2019

A.

For stock updates we recommend you to press that notify me button so you can have the updates whenever it will come back in stock.

Nitesh (Verified Buyer )

Q. Can I over lock i5 9900k and pair with GTX 1080 TI in this board 07/05/2019

A. We do not recommend OC.

Aneeket Alfred Beck (Verified Buyer )

Ask a question

Note: HTML is not translated!

Ratings & Reviews

  • 5
  • 4
  • 3
  • 2
  • 1
  • 0
  • 1
  • 0
  • 0
  • 0
    4.0
    1 rating &
    1 review

4 15th December 2019

The MSI MPG Z390 Gaming Pro, this motherboard has been fitted with two M2 slots, a lot of connectivity, as well as pretty nice looks with a new shroud over the VRM heatsink which makes the motherboard very cool. The temperature didn't exceed 38 C after overclocking i5 8600k to 4.7 GHz.More than just a cosmetic upgrade, the MPG Z390 Gaming Pro Carbon’s new M.2 heat spreader design makes sense because the lower M.2 slot is potentially subject to greater heat (from the nearby graphics card) than the upper slot (which sits above the first graphics card slot)
Extras:-
Wi-Fi aerials, RGB LED extension cable, the M.2 heatsink
Sound Eight-channel Realtek ALC 1220

Cons-
Heat for the second M.2 slot should only be an issue, though, when installing a second graphics card.
Fewer I/O-panel USB ports than the board it replaces

Varun Upreti (Verified Buyer )
