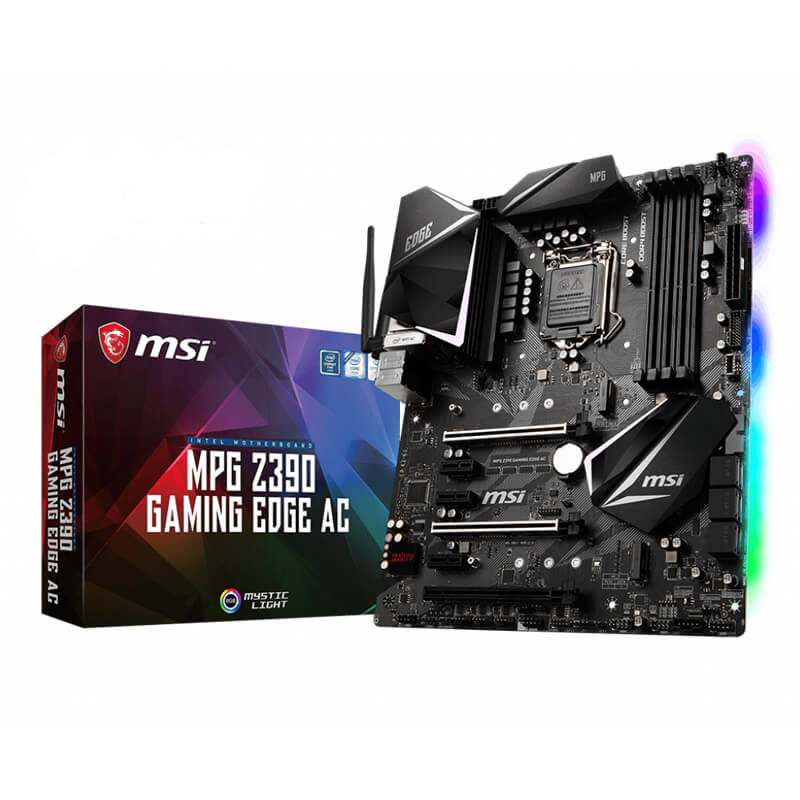

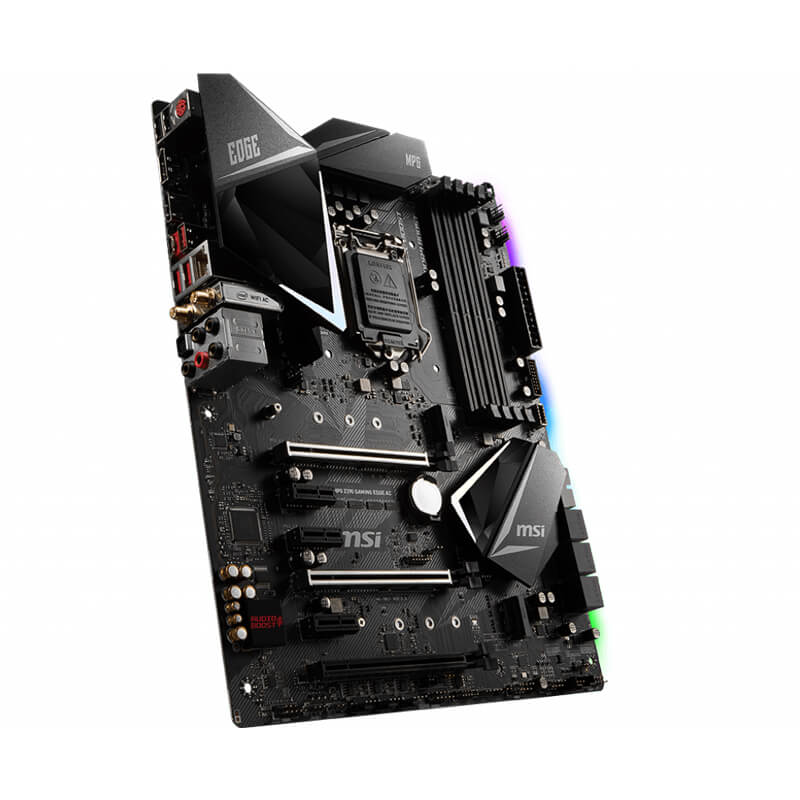

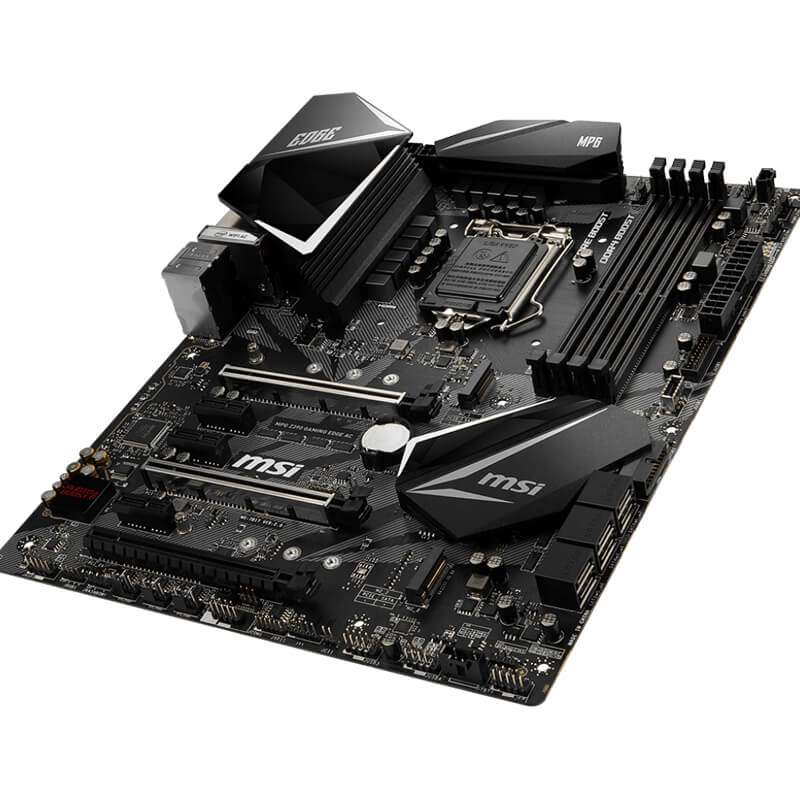

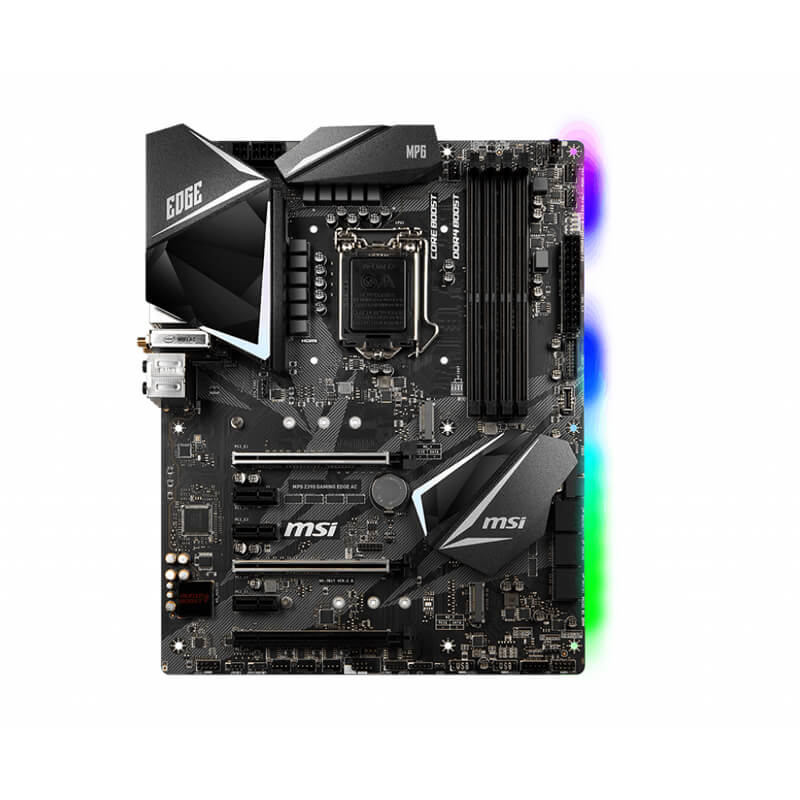

Msi MPG Z390 Gaming Edge AC (Wi-Fi)
Msi MPG Z390 Gaming Edge AC (Wi-Fi)
Msi MPG Z390 Gaming Edge AC (Wi-Fi)
Msi MPG Z390 Gaming Edge AC (Wi-Fi)
Msi MPG Z390 Gaming Edge AC (Wi-Fi)
Msi MPG Z390 Gaming Edge AC (Wi-Fi)
Msi MPG Z390 Gaming Edge AC (Wi-Fi)
Msi MPG Z390 Gaming Edge AC (Wi-Fi)
Msi MPG Z390 Gaming Edge AC (Wi-Fi)
Msi MPG Z390 Gaming Edge AC (Wi-Fi)

Msi MPG Z390 Gaming Edge AC (Wi-Fi)

/ Write a review

HDFC bank Offer



  • Brand: MSI
  • Product Code: MPG-Z390-GAMING-EDGE-AC
  • Availability: Out Of Stock

Msi MPG Z390 Gaming Edge AC (Wi-Fi)

₹18,900

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

Full of sharp and salient lines reflecting gorgeous colors design, perfect balance between appearance and performance with Extended Heatsink Design, Core boost, Twin Turbo M.2, Front USB 3.1 Gen2 connector and Mystic Light



  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2
  • Set Core Power Free: Extended Heatsink Design, Core Boost, 8+4 pin CPU power connector, Game Boost, DDR4 Boost
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
  • AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE  with user friendly user interface.

Specifications

PROCESSOR Supports Intel® Core™ 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
CHIPSET Intel® Z390 Chipset
MEMORY
  • 4 x DDR4 memory slots, support up to 128GB
    • Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
SLOTS
  • 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
  • 3 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hzz
  • 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

*No Display support when using the Processor model with suffix “F”
MULTI-GPU
  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology
STORAGE

Intel® Z390 Chipset

  • 6 x SATA 6Gb/s ports1
  • 2 x M.2 slot (Key M)1
    • Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • Intel® Optane™ Memory Ready2
  1. M.2 slots and SATA ports share the bandwidth.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID

Intel® Z390 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 for M.2 PCIe storage devices
USB

Intel® Z390 Chipset

  • 3x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector)
  • 6x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
  • 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO

Realtek® ALC1220P Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1 x Intel® I219-V Gigabit LAN controller
WIFI & BLUETOOTH

Intel® Wireless-AC 9462 card

  • Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433 Mbps
  • Supports Bluetooth® 2.1, 2.1+EDR, 3.0,4.0, 5
INTERNAL CONNECTORS
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen2 Type-C port
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin Water Pump connector
  • 5 x 4-pin system fan connectors
  • 1 x Serial port connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Thunderbolt Add-on Card Connector
  • 1 x Chassis Intrusion connector
  • 1 x TPM module connector
  • 2 x 4-pin RGB LED connectors
  • 1 x 3-pin RAINBOW LED connector
  • 1 x 3-pin CORSAIR LED connector

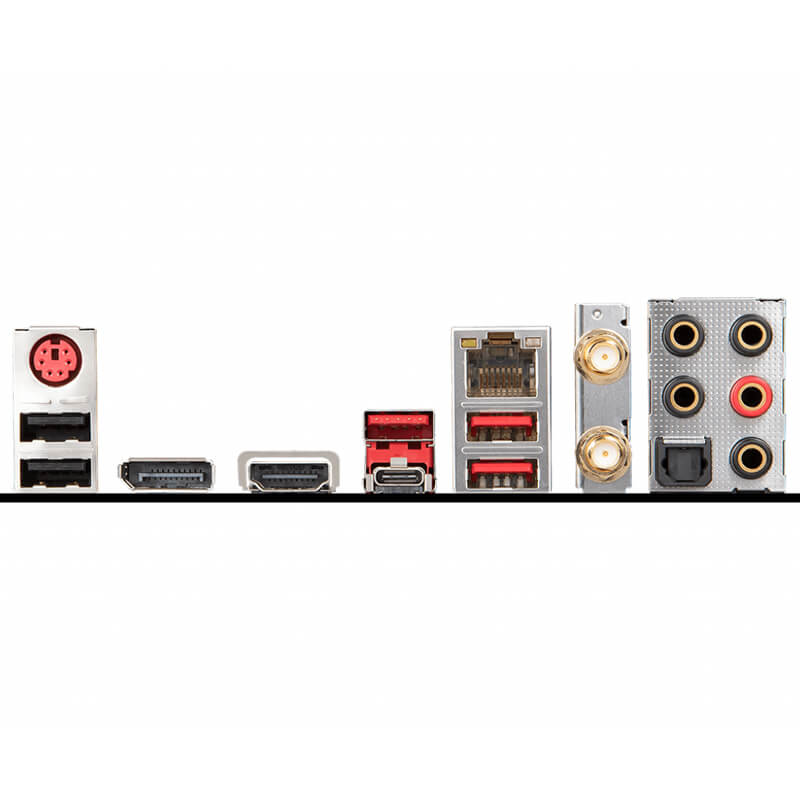

BACK PANEL PORTS
  1. PS/2 Combo Port
  2. LAN
  3. Wireless / Bluetooth
  4. HD Audio Connectors
  5. USB 2.0
  6. DisplayPort
  7. HDMI
  8. USB 3.1 Gen2 Type-A + C
  9. USB 3.1 Gen1
  10. Optical S/PDIF out
DIMENSIONS
  • 9.6 in. x 12 in. (24.3 cm x 30.4 cm)
  • ATX Form Factor
MOUNTING 9 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1151
Chipset Z390
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX
Warranty 3 Years

Questions and Answers

Q. Does it support RTX 1660 models and Can it support RTX 2080 models (Both are Different Questions) 19/02/2021

A. Yes.

Anshuman Yadav (Verified Buyer )

Q. Will it support m.2 nvme ssd?
 25/03/2020

A. Yes, it would support this motherboard.

Orsburn Azaredo (Verified Buyer )

Q. How about the cooling of this motherboard? 03/02/2020

A.

Extended Heatsink Design - Leading heatsink design, extended for maximum cooling and performance.


Arijeet Pattnaik (Verified Buyer )

Q. Sir, does this motherboard support GDDR5 Graphic Cards like GTX 1070, GTX 1080, RX 580...etc? 19/01/2020

A. Yes, supported.

Shrichandra (Verified Buyer )

Q. Can I overclock my rtx 2080 ti upto 2000 MHz on this board??? 14/12/2019

A.

We don't test hardware ourselves. Please go through the reviews of the product about overclocking capabilities and more.

Abhijit (Verified Buyer )

Ask a question

Note: HTML is not translated!

Ratings & Reviews

  • 5
  • 4
  • 3
  • 2
  • 1
  • 2
  • 0
  • 0
  • 0
  • 0
    5.0
    2 ratings &
    2 reviews

5 24th October 2019

I built my PC using MSI Z390 Gaming Edge AC motherboard & MSI Geforce RTX 2070 Super Gaming X Trio, it's been 5 days since I built it. So far the experience has been amazing.

Pros:
- Build: The build quality is the best I have ever seen.
- Compatibility: It is compatible with most cases and components out there.
- RGB: The lights on the board look great, the mobo also supports a large variety of RGB headers.
- Gaming mode: I have been using this to get the best performance out of my peripherals.
- Looks: It has a very minimal & classy look which goes really well with my case and rest of the peripherals.
- Extensive manuals: This was my first time building a PC and I had no issues whatsoever thanks to the manuals that I got with the motherboard.
- Several ports: I have a lot of peripherals that I needed to connect to my PC and I never fell short on ports.

Cons: 0

Conclusion: I would highly recommend this motherboard to anyone who wants to build a solid gaming PC.

Siddharth Sareen (Verified Buyer )
5 2nd October 2019

splendid!!
I used this motherboard for i9... it feels too good to experience gaming in this !!

biswajit prasad (Verified Buyer )
