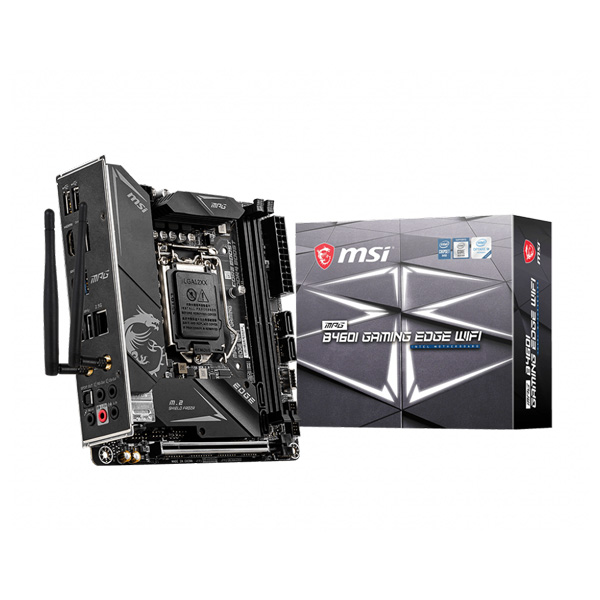

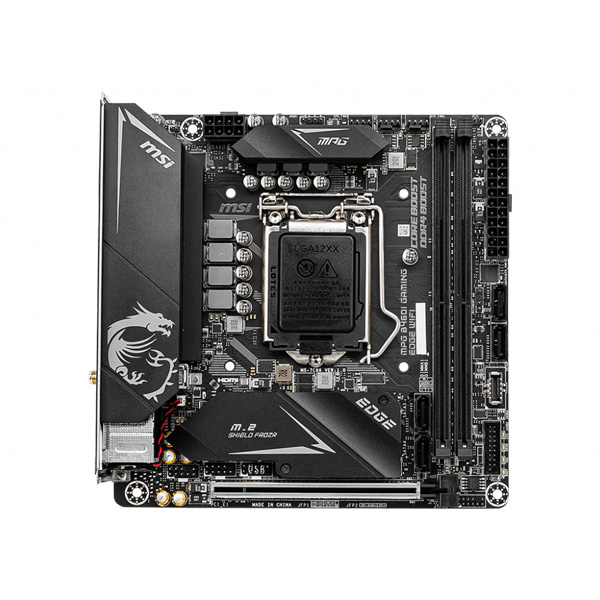

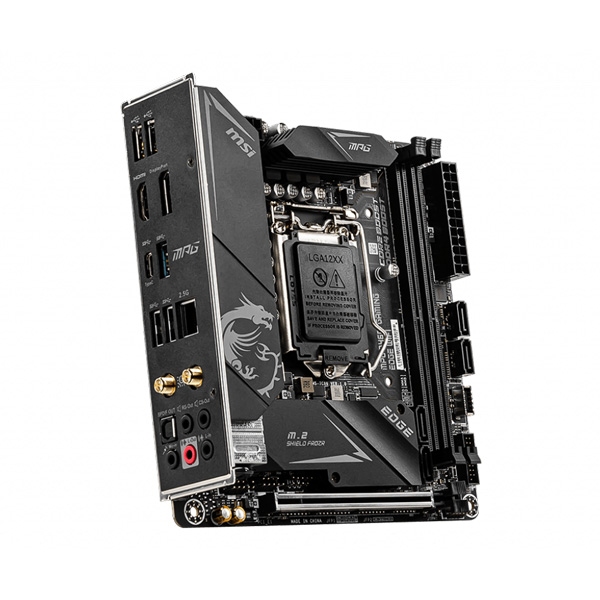

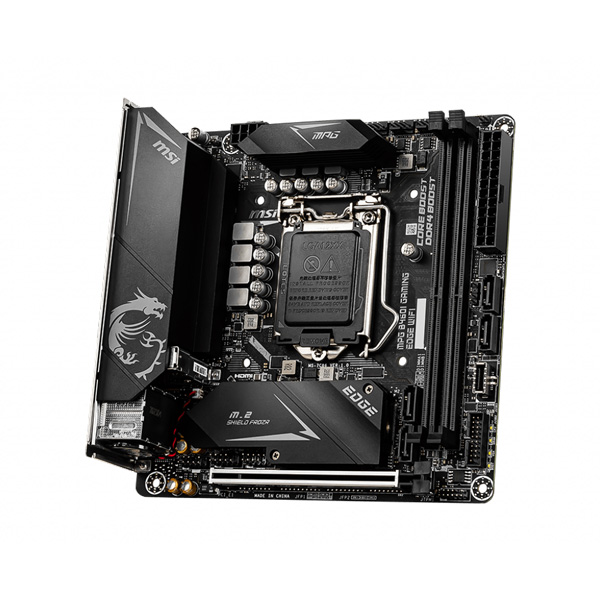

Msi MPG B460I Gaming Edge WI-FI Motherboard
Msi MPG B460I Gaming Edge WI-FI Motherboard
Msi MPG B460I Gaming Edge WI-FI Motherboard
Msi MPG B460I Gaming Edge WI-FI Motherboard
Msi MPG B460I Gaming Edge WI-FI Motherboard
Msi MPG B460I Gaming Edge WI-FI Motherboard
Msi MPG B460I Gaming Edge WI-FI Motherboard
Msi MPG B460I Gaming Edge WI-FI Motherboard
Msi MPG B460I Gaming Edge WI-FI Motherboard
Msi MPG B460I Gaming Edge WI-FI Motherboard

Msi MPG B460I Gaming Edge WI-FI Motherboard

/ Write a review

HDFC bank Offer



  • Brand: MSI
  • Product Code: MPG-B460I-GAMING-EDGE-WI-FI
  • Availability: Out Of Stock

Msi MPG B460I Gaming Edge WI-FI Motherboard

₹15,050

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

MPG B460I GAMING EDGE WIFI

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933 MHz(Max)
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • Enhanced Power Design: 6+1+1 Digital Power Design, Core Boost, DDR4 Boost
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Intel Turbo USB 3.2 Gen 1: Powered by Intel USB 3.2 Gen 1 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

Specifications

CPU Supports Intel® 10th Gen processors for LGA 1200 socket
Chipset Intel® B460 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB
  • Intel® Core™ i7 / i9
    • Supports up to DDR4 2933 MHz
  • Intel® Core™ i5 and below
    • Supports up to DDR4 2666 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot 1x PCIe 3.0 x16 slot (From CPU)
Onboard Graphics
  • 1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
  • 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
Storage

Intel® B460 Chipset

  • 4x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices
    • M2_2 supports up to PCIe 3.0 x4, 2280 storage devices
    • Intel® 0ptane™ Memory Ready for M2_2 slot.
RAID

Intel® B460 Chipset

  • Supports RAD 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB

Intel® B460 Chipset

  • 2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port is available through the internal USB 3.2 Gen 1 5Gbps Type-C connector)
  • 5x USB 3.2 Gen 1 5Gbps ports (3 Type-A ports on the back panel, 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector
Audio

Realtek® ALC1200 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN 1x Realtek® RTL8125B 2.5Gbps LAN controller
Wireless LAN & 8luetooth

Intel® AX200

  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
  • WiFi 6 Pre-Certified
  • Supports Bluetooth® 5.1 , FIPS, FISMA
  • The Wireless module is pre-install in the M2 (Key-E) slot
  1. Only support windows 10 64-bit
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 1x System panel connector
  • 1x 4-pin RGB LED connector
  • 1x 3-pin RAINB0W LED connector
  • 1x Chassis Intrusion connector
  • 1xTPM module connector
  • 1x Clear CM0S jumper
  • 4x EZ Debug LED

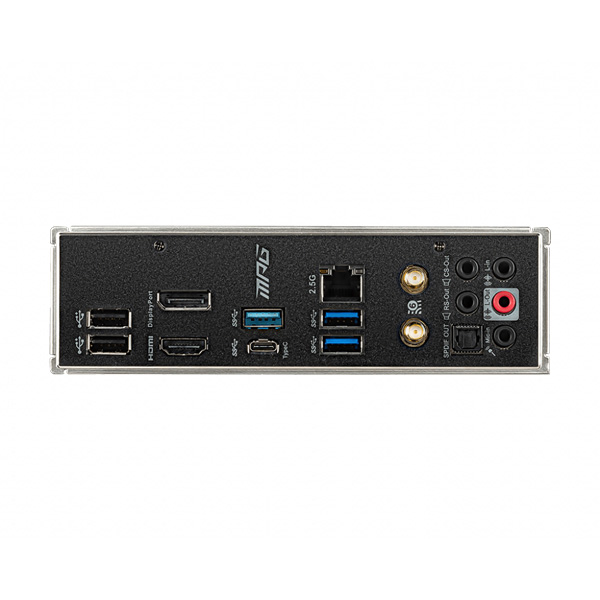

Back panel ports
  1. DisplayPort
  2. USB 3.2 Gen 1 5Gbps (Type-A)
  3. 2.5G LAN
  4. Wi-Fi / Bluetooth
  5. HD Audio Connectors
  6. USB 2.0
  7. HDMI
  8. USB 3.2 Gen 1 5Gbps (Type-C)
  9. USB 3.2 Gen 1 5Gbps (Type-A)
  10. Optical S/PDIF OUT
I/O Controller NUVOTON NCT6687 Controller Chip
Dimensions
  • Mini-ITX Form Factor
  • 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1200
Chipset B460
Max Memory Support 64 GB
Supported Memory Type DDR4
Form Factor Mini-ITX
Warranty 3 Years

Questions and Answers

Q. can i overclock i7 10700k on it
 01/04/2021

A. Not recommend.

Ankush Maurya (Verified Buyer )

Q. can i use i7 10700k on it 01/04/2021

A. Yes.

Ankush Maurya (Verified Buyer )

Q. Does it have msi mystic light sync? 27/02/2021

A. Yes.
