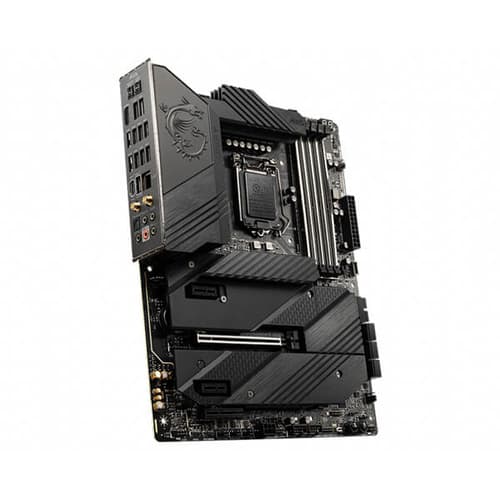

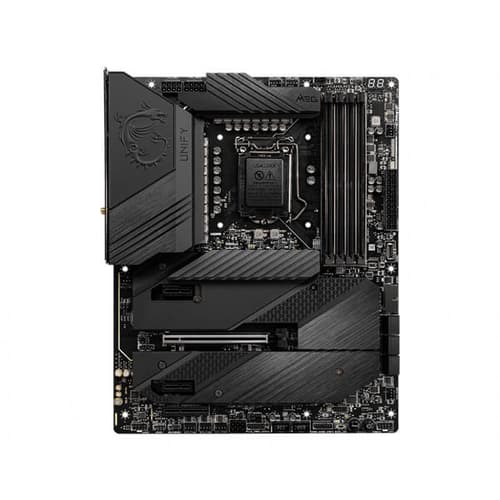

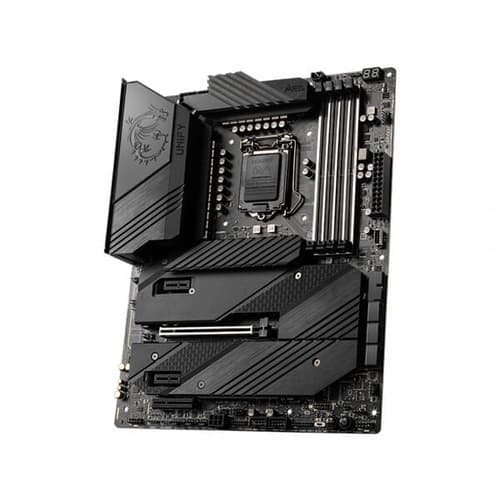

MSI MEG Z590 Unify (Wi-Fi) Motherboard
MSI MEG Z590 Unify (Wi-Fi) Motherboard
MSI MEG Z590 Unify (Wi-Fi) Motherboard
MSI MEG Z590 Unify (Wi-Fi) Motherboard
MSI MEG Z590 Unify (Wi-Fi) Motherboard
MSI MEG Z590 Unify (Wi-Fi) Motherboard
MSI MEG Z590 Unify (Wi-Fi) Motherboard
MSI MEG Z590 Unify (Wi-Fi) Motherboard
MSI MEG Z590 Unify (Wi-Fi) Motherboard
MSI MEG Z590 Unify (Wi-Fi) Motherboard

MSI MEG Z590 Unify (Wi-Fi) Motherboard

/ Write a review

Tech Yatra sale 2025



Enjoy Instant UPI Discount on Every Transactions.

  • Brand: MSI
  • Product Code: MEG-Z590-UNIFY
  • Availability: Out Of Stock

MSI MEG Z590 Unify (Wi-Fi) Motherboard

Offer Price

₹27,049

(48% off ) ₹52,500
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

  • Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5600(OC) MHz
  • Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with three Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
  • Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate ensure the extreme performance with low temp.
  • 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
  • Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
  • Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
  • 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
  • Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.

Specifications



Processor
  • Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  • Processor socket LGA1200
Chipset Intel® Z590 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5600 MHz
    • 1DPC 2R Max speed up to 4800+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC mode, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slots
  • 1x PCIe x16 slot (PCI_E2, from CPU)
    • Supports up to PCIe 4.0 x16 with11th Gen CPU
    • Supports up to PCIe 3.0 x16 with10th Gen CPU
  • 1x PCIe 3.0 x4 slot (PCI_E4, from Z590 chipset)
  • 2x PCIe 3.0 x1 slots (from Z590 chipset)
  1. PCI_E2 will only support x8 speed, when M2_2 and M2_3 are from CPU by BIOS selection.
  2. PCI_E4 and M2_4 share the same bandwidth, if you want to use both of them simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will only support x2 speed. But if you want to install and enable the graphics card in PCI_E4 slot, the M2_4 slot should be empty.
Multi-GPU Supports 2-Way AMD® CrossFire™ Technology
Onboard Graphics/td>
  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
  1. Available for the processor with integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
Storage
  • 6x SATA 6Gb/s ports (from Z590 chipset)
  • 4x M.2 slots (Key M)
    • M2_1 (from CPU)
      • Available only on 11th Gen Intel® CPU
      • Supports up to PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_21, M2_32 slots
      • Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default)3
      • Support up to PCIe 4.0 x4 (from CPU, by BIOS selection)4
      • M2_2 supports 2242/ 2260/ 2280 storage devices
      • M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_4 slot (from Z590 chipset) 3 5
      • Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
  • Supports Intel® Smart Response Technology for Intel Core™ processors
  1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/ PCIe SSD in the M2_3 slot.
  3. Intel® Optane™ Memory Ready. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
  4. PCIe 4.0 specification is available only on 11th Gen Intel® CPU.
  5. PCI_E4 and M2_4 share the same bandwidth, if you want to use both of them simultaneously, the PCI_E4 will only support x1 speed and the M2_4 will only support x2 speed. But if you want to install and enable the graphics card in PCI_E4 slot, the M2_4 slot should be empty.
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
  • Intel® Z590 Chipset
    • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
    • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port on the back panel and 1 Type-C internal connector)
    • 10x USB 3.2 Gen 1 5Gbps ports (8 Type-A ports on the back panel, 2 ports are available through internal USB 3.2 Gen 1 connector)
    • 2x USB 2.0 ports on the back panel
  • Hub-GL850G
    • 4x USB 2.0 ports through internal USB 2.0 connector
Audio Realtek® ALC4080 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN 1x Intel® I225-V 2.5Gbps LAN controller
Wireless LAN & Bluetooth Intel® WiFi 6E AX210
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2, FIPS, FISMA
  1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
  2. Bluetooth 5.2 will be ready in WIN10 21H1.
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 1x 6-pin ATX PCIE power connector
  • 6x SATA 6Gb/s connectors
  • 4x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 2-pin Thermal Sensors connector
  • 1xTPM module connector
  • 1x Tuning Controller connector
  • 1x TBT connector (Supports RTD3)
LED Features
  • 1x 2-Digit Debug Code LED
  • 4x EZ Debug LED
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1x 3-pin JCORSAIR LED connector

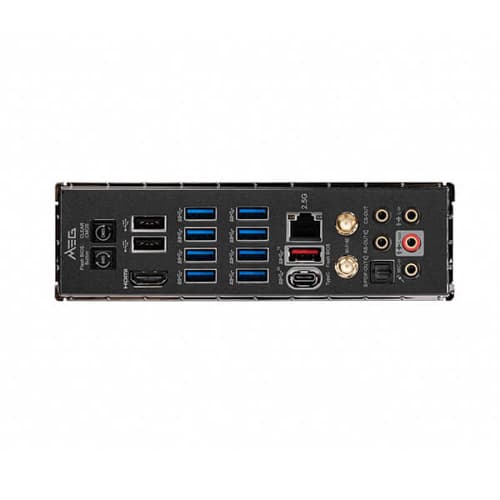

Back panel ports
  1. Clear CMOS Button
  2. USB 2.0
  3. USB 3.2 Gen 1 5Gbps (Type-A)
  4. USB 3.2 Gen 1 5Gbps (Type-A)
  5. 2.5G LAN
  6. Wi-Fi / Bluetooth
  7. HD Audio Connectors
  8. Flash BIOS Button
  9. HDMI
  10. USB 3.2 Gen 2 10Gbps (Type-A)
  11. USB 3.2 Gen 2x2 20Gbps (Type-C)
  12. Optical S/PDIF-Out
Dimensions
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
Mounting 9 mounting holes
Operating System Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.



Motherboard
Platform INTEL
Socket LGA1200
Chipset Z590
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX
Warranty 3 Years
