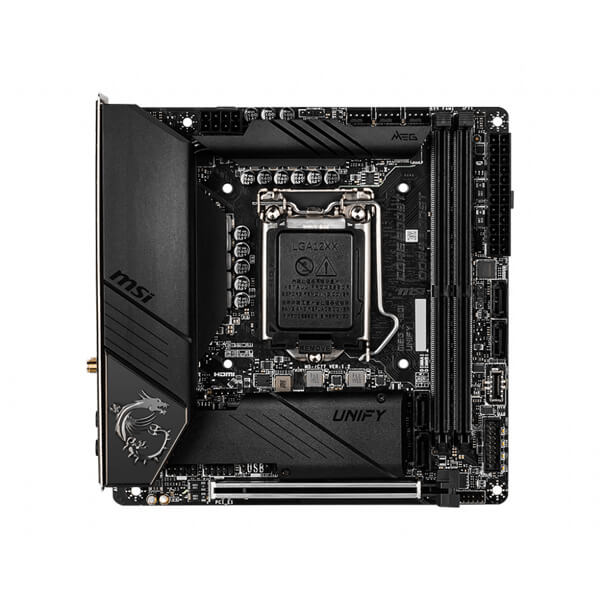

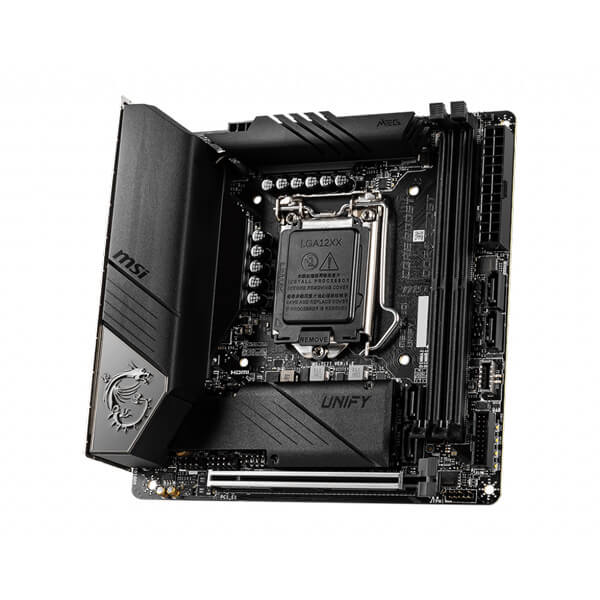

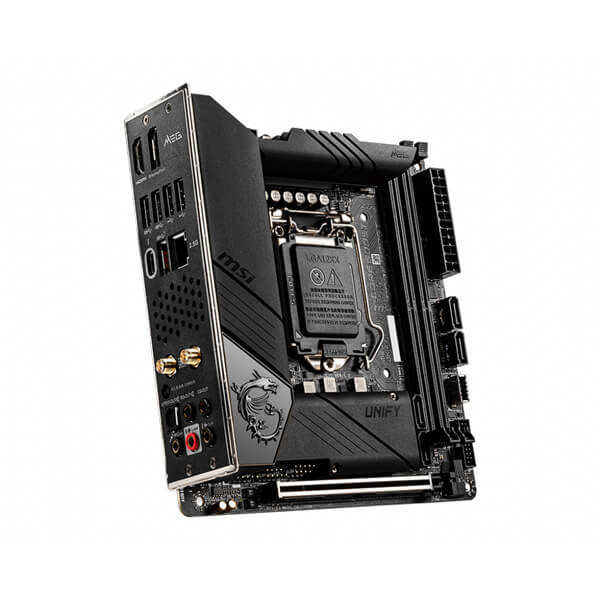

MSI Meg Z490i Unify WiFi M-ITX Motherboard
MSI Meg Z490i Unify WiFi M-ITX Motherboard
MSI Meg Z490i Unify WiFi M-ITX Motherboard
MSI Meg Z490i Unify WiFi M-ITX Motherboard
MSI Meg Z490i Unify WiFi M-ITX Motherboard
MSI Meg Z490i Unify WiFi M-ITX Motherboard
MSI Meg Z490i Unify WiFi M-ITX Motherboard
MSI Meg Z490i Unify WiFi M-ITX Motherboard
MSI Meg Z490i Unify WiFi M-ITX Motherboard
MSI Meg Z490i Unify WiFi M-ITX Motherboard

MSI Meg Z490i Unify WiFi M-ITX Motherboard

/ Write a review

Bank Card Offer
  • Brand: MSI
  • Product Code: MEG-Z490I-UNIFY
  • Availability: Out Of Stock

MSI Meg Z490i Unify WiFi M-ITX Motherboard

Offer Price

₹17,899

(50% off ) ₹35,700
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

  • Supports 10th Gen Intel® Coreâ„¢ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5000(OC) MHz
  • Ready 4 the Future: Support Lightning Gen 4 Solution for the future
  • Thunderboltâ„¢ 3 ports: Experience Thunderbolt 3 with unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices.
  • Extreme Power Design: INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors.
  • Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr ensure the extreme performance with low temp.
  • Latest Network Solution: Onboard 2.5G LAN and latest Wi-Fi 6 solution deliver the best online experience without lag.
  • Twin Turbo M.2 with Shield Frozr: Turbo M.2 delivers PCI-E Gen3 x4 performance with transfer speeds up to 32 Gb/s for the latest SSDs.
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

Specifications

Processor Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors
Chipset Intel® Z490 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB
  • Supports 1R 2133/2666/2933 MHz
    • 1DPC 1R Max speed up to 5000+ MHz
    • 1DPC 2R Max speed up to 4500+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC mode, un-buffered memory
  • Supports Intel® Extreme Memory Profile [XMP]
Expansion Slots 1x PCIe 3.0 x16 slot
Onbaord Graphics
  • 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
  • 1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
  • Intel® JHL7540 Thunderboltâ„¢ 3 Controller
  • 1x Thunderboltâ„¢ 3 [Type-C] port on the back panel
    • Supports Thunderboltâ„¢ 3 with a maximum resolution of 3840x2160 @60Hz or DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 Hz
  • Maximum shared memory is 1GB
Thunderbolt™ 3 Intel® JHL7540 Thunderbolt™ 3 Controller
  • 1x Thunderboltâ„¢ 3 [USB Type-C] port on the back panel
  • Supports up to 40 Gbps transfer rate with Thunderbolt 3 devices
  • Supports up to 10 Gbps transfer rate with USB 3.2 Gen2 10Gbps devices
  • Supports up to 5V/3A , 15W power charging
  • Supports Daisy-chain up to six Thunderboltâ„¢ 3 devices
Storage Intel® Z490 Chipset
  • 4x SATA 6Gb/s ports
  • 2x M.2 slots [Key M]
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices
    • M2_2 supports up to PCIe 3.0 x4, 2280 storage devices
    • Intel® Optaneâ„¢ Memory Ready
    • Supports Intel® Smart Response Technology for Intel Coreâ„¢ processors
RAID Intel® Z490 Chipset
  • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB
  • Intel® Z490 Chipset
    • 2x USB 3.2 Gen2 10Gbps ports [1 Type-A port on the back panel, 1 Type-C internal connector]
    • 4x USB 3.2 Gen1 5Gbps ports [2 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen1 5Gbps connector]
    • 4x USB 2.0 ports [2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]
  • Intel® JHL7540 Thunderboltâ„¢ 3 Controller
    • 1x USB 3.2 Gen2 10Gbps Type-C port on the back panel
Audio Realtek® ALC1220 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN 1x Realtek® RTL8125B 2.5Gbps LAN controller
Wireless LAN & Bluetooth Intel® AX201
  • The Wireless module is pre-installed in the M.2 [Key-E] slot
  • Supports MU-MIM0 TX/RX, 2.4GHz/ 5GHz [160MHz] up to 2.4Gbps
  • Supports 802.11ac
  • WiFi 6 pre-certified
  • Supports Bluetooth® 5.1, FIPS, FISMA
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots [M-Key]
  • 1x USB 3.2 Gen2 10Gbps Type-C port
  • 1x USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports]
  • 1x USB 2.0 connector [supports additional 2 USB 2.0 ports]
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 2x 3-pin RAINB0W LED connectors
  • 1xTPM module connector
LED Features 4x EZ Debug LED

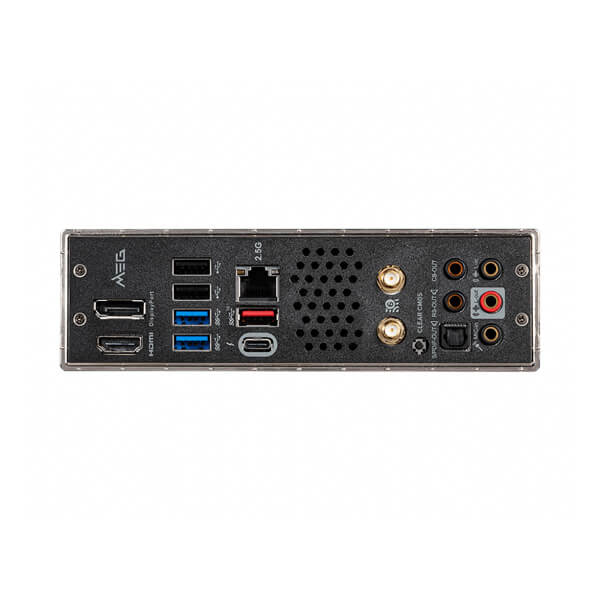

Back Panel Connectors
  • Display port
  • USB 2.0 ports
  • 2.5G LAN
  • Wi-Fi /Bluetooth Antenna Connectors
  • HD Audio Connectors
  • HDMI port
  • USB 3.2 Gen1 5Gbps (Type-A)
  • Thunderbolt 3 (40Gbps)
  • USB 3.2 Gen2 10Gbps (Type-A)
  • Clear CM0S Button
  • 0ptical S/PDIF 0ut
Dimensions
  • 6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]
  • Mini-ITX Form Factor
Mounting 4 mounting holes
Operating System Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1200
Chipset Z490
Max Memory Support 64 GB
Supported Memory Type DDR4
Form Factor M-ITX
Warranty 3 Years
