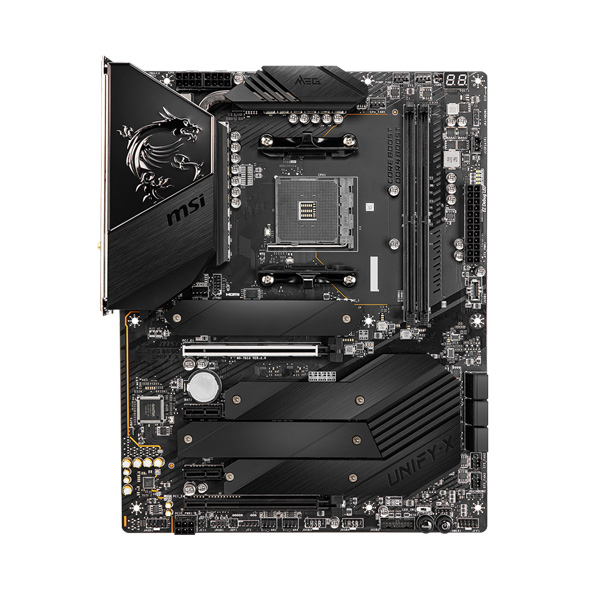

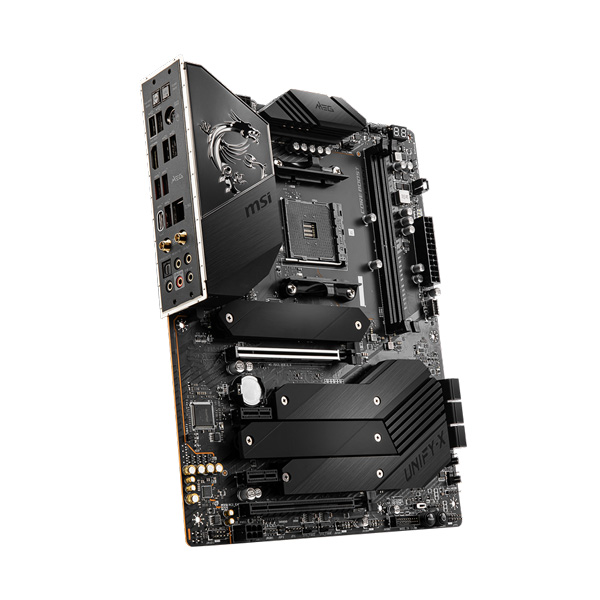

Msi MEG B550 Unify-X (Wi-Fi) Motherboard
Bank Credit & Debit Card EMI Offer
MSI – END USER PROMOTION IS BACK Offer T&C for Details Click Here
- Brand: MSI
- Product Code: MEG-B550-UNIFY-X
- Availability: Out Of Stock
Msi MEG B550 Unify-X (Wi-Fi) Motherboard
Offer Price
₹27,999
(27% off ) ₹38,550
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Important Notice :
- BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
- The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
- For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website
Features
MEG B550 UNIFY-X
- Supports AMD Ryzenâ„¢ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzenâ„¢ 5 3400G & Ryzenâ„¢ 3 3200G) and AMD Ryzenâ„¢ 4000 G-Series desktop processors
- Supports DDR4 Memory, Dual Channel 5300(OC) MHz+ (MAX5800)
- Quadruple M.2 Connectors: Maximum onboard 4x M.2 slots, support the latest Gen 4 solution with up to 64GB/s bandwidth for maximum transfer speed.
- Extreme Power Design: Direct 14+2 phases with 90A Power Stage and dual CPU power connectors to unleash your true power.
- Premium Thermal Solution: Aluminum Cover with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, AMD Turbo USB 3.2 GEN 2.
- Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
| Motherboard | |
| Platform | AMD |
| Socket | AM4 |
| Cpu Type | Ryzen 5000, Ryzen 4000 G, Ryzen 3000 |
| Chipset | B550 |
| Memory Speed | up to 5300+ |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Graphics Port | 1 x HDMI |
| Expansion Slots | AMD Processor 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) AMD B550 Chipset 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 speed 2x PCIe 3.0 x1 slots (PCI_E2 & PCI_E3) |
| Wireless Networking | WiFi 6,Bluetooth 5.1 |

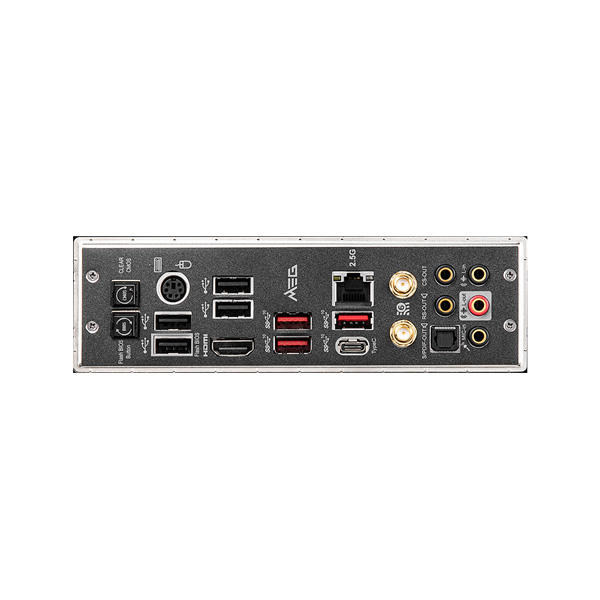

| Back Panel I/O Ports | Clear CMOS Button Keyboard / Mouse USB 2.0 Ports 2.5G LAN Wi-Fi /Bluetooth HD Audio Connectors Flash BIOS Button USB 2.0 Ports HDMIâ„¢ 2.1 Port USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A+C) Optical S/PDIF-Out |
| Internal I/O Connector | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector 1x TPM module connector 1x Clear CMOS jumper 1x Power button 1x Reset button |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | Features, Price, Specifications are subject to change without notice. Images used for representation purposes only |
