Features:

• Efficiency Rating: 80 PLUS Titanium (up to 94%)
• Modular: Yes (Fully Modular)
• Fan Size: 135 mm
• Fan Bearing: Double Ball Bearing
• PFC Type: Interleaved PFC
• Input Voltage Range: 100-240
• Power Watt: 1600W
• Power Excursion: 3840W (*up to 240% of the PSU's rated power for 100μs)
• Input Frequency Range: 50~60 Hz
• Protection: OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO

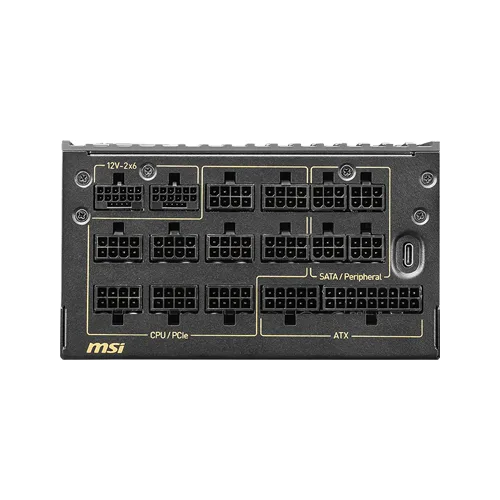

• ATX (24 pin): 1
• EPS (4+4 pin): 2
• PCI-E 5.1 (16 pin): 2 (600W)
• PCI-E (6+2 pin): 9
• SATA (15 pin): 8
• PERIPHERAL (4 pin): 8

Full Digital Design

This power supply comes with MCU to control PFC,LLC and protection significantly enhance accuracy.This architecture enables manage dynamic adjustments,delivering more stable and efficient power output.

Dual-native 12V-2x6 Connector

This power supply stands as a cornerstone for powering advanced computing environments. Whether you’re training machine learning models or image processing, this PSU ensures stability and performance without compromise.

Ultimate Proof PSU

It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 240% total power excursion and 3x GPU power excursion.

SiC MOSFET

The first of server-grade materials are used in the interleaved PFC MOSFETs to enhance stability, improve overall efficiency, reduce losses, and optimize heat dissipation.

Titanium Efficiency Certification

The efficiency of your power supply significantly impacts overall power consumption.A Titanium certification serves as an outstanding benchmark for energy efficiency,ensuring lower power consumption while maintaining optimal performance at higher efficiency levels.

Server-grade Electrolytic 105°C Capacitor

Aiming for unwavering product quality and performance stability,he MEG gaming power supply comes with 100% Japanese 105° C capacitors.It is designed for efficient power conversion and long-lasting, safe operation.

Double-ball Bearing

This power supply’s comes with 135 mm fan sports a Double-ball bearing, chosen to increase the life span of the fan while maintaining low noise level.

Dual-color 12V-2x6 cable

The 12V-2x6 cable’s connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly.

COMPACT SIZE

Compared with the general titanium power supply on the market.The power supply’s dimensions ensure a comfortable and easy fit in most PC cases,effectively providing more space for cable management and airflow to the rest of the system.

Soft Braided Modular Cable

Thanks to the thicker individual braiding, the power supply cables offer enhanced durability, in addition the fully modular design further improves organization and extends the system's lifespan.

Soft Braided Modular Cable

Thanks to the thicker individual braiding, the power supply cables offer enhanced durability,in addition the fully modular design further improves organization and extends the system's lifespan.

Cable Organizer

Pre-install the cable organizer to make organizing cables more convenient.Additionally, the cable manager's position can be adjusted freely as needed.

SOFTWARE SYNC

This power supply is fully supported by MSI Gaming Intelligence,which helps optimize user experience with adjustable settings.Please connect the type-C cable to sync the power supply’s information.
