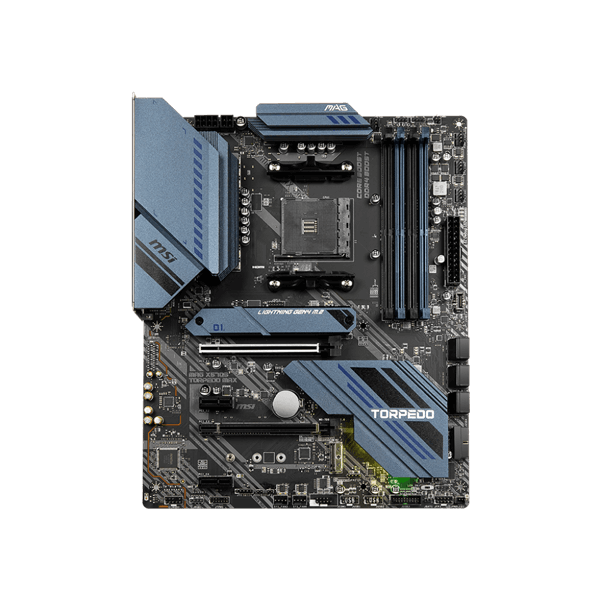

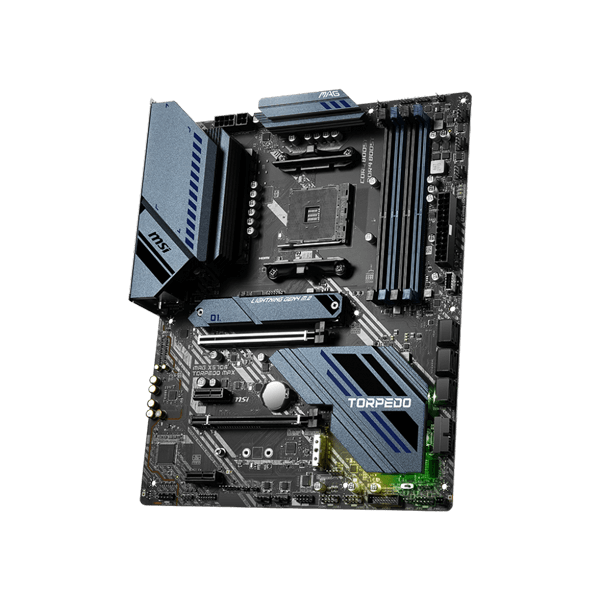

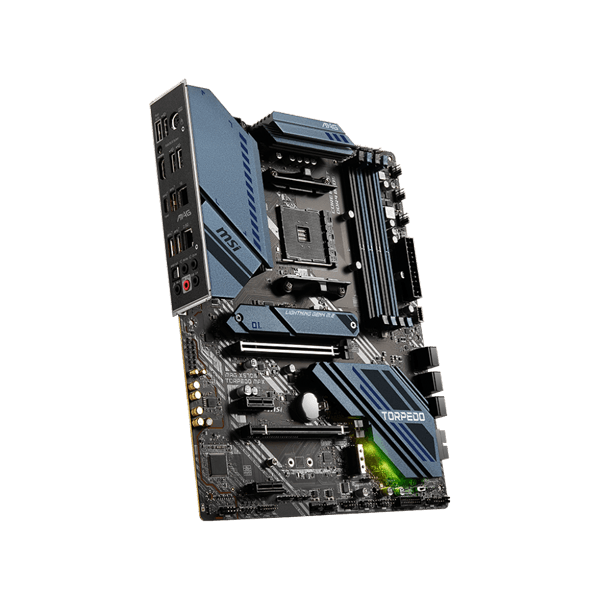

MSI MAG X570S Torpedo Max ATX Motherboard
MSI MAG X570S Torpedo Max ATX Motherboard
MSI MAG X570S Torpedo Max ATX Motherboard
MSI MAG X570S Torpedo Max ATX Motherboard
MSI MAG X570S Torpedo Max ATX Motherboard
MSI MAG X570S Torpedo Max ATX Motherboard
MSI MAG X570S Torpedo Max ATX Motherboard
MSI MAG X570S Torpedo Max ATX Motherboard
MSI MAG X570S Torpedo Max ATX Motherboard
MSI MAG X570S Torpedo Max ATX Motherboard

MSI MAG X570S Torpedo Max ATX Motherboard

/ Write a review

Bank Card Offer
  • Brand: MSI
  • Product Code: MAG-X570S-TORPEDO-MAX
  • Availability: Out Of Stock

MSI MAG X570S Torpedo Max ATX Motherboard

Offer Price

₹17,649

(46% off ) ₹32,400
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features:

  • Supports AMD Ryzenâ„¢ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
  • Supports DDR4 Memory, up to 5100(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
  • Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfireâ„¢

Specifications:

CPU
  • Supports AMD Ryzenâ„¢ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
  • Supports Socket AM4
Chipset
  • AMD X570 Chipset
MEMORY
  • 4x DDR4 memory slots, support up to 128GB
  • Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1
  • Max overclocking frequency by A-XMP OC mode:
  • For Ryzenâ„¢ 5000 G-Series & 4000 G-Series processors
  • 1DPC 1R Max speed up to 5100 MHz
  • 1DPC 2R Max speed up to 4000 MHz
  • 2DPC 1R Max speed up to 4266 MHz
  • 2DPC 2R Max speed up to 3600 MHz
  • For Ryzenâ„¢ 5000 Series & 3000 Series processors
  • 1DPC 1R Max speed up to 5100 MHz
  • 1DPC 2R Max speed up to 3866 MHz
  • 2DPC 1R Max speed up to 4000 MHz
  • 2DPC 2R Max speed up to 3600 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
EXPANSION SLOT
  • Supports PCIe 4.0 / PCIe 3.0 specification
  • PCIe 4.0 is available only on AMD Ryzenâ„¢ 5000 Series and 3000 Series desktop processors
  • 1x PCIe x16 slot (From processor)
  • PCI_E1 supports PCIe 4.0/ 3.0 x16
  • 1x PCIe x16 slot (From X570 chipset)
  • PCI_E3 supports PCIe 4.0/ 3.0 x4
  • 2x PCIe 3.0 x1 slots (From X570 chipset)
MULTI-GPU
  • Supports AMD CrossFireâ„¢ Technology
ONBOARD GRAPHICS
  • Supports AMD CrossFireâ„¢ Technology
STORAGE
  • 6x SATA 6Gb/s ports (from AMD X570 Chipset)
  • 2x M.2 slots (Key M)
  • Support up to PCIe 4.0 for AMD Ryzenâ„¢ 5000 Series and 3000 Series desktop processors
  • Support up to PCIe 3.0 for AMD Ryzenâ„¢ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor
  • Supports up to SATA 6Gb/s
  • M2_1 slot (from Processor)
  • Support 2280/22110 storage devices
  • M2_2 slot (from AMD X570 Chipset)
  • Supports 2242/ 2260/ 2280 storage devices
RAID
  • Supports RAID 0, RAID 1 and RAID 10

USB

AMD X570 Chipset

  • 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
  • 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A &Type-C)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO

Realtek® ALC4080 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1x Realtek® 8125B 2.5Gbps LAN Controller
  • 1x Realtek® RTL8111H 1Gbps LAN Controller
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump connector
  • 4x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
LED FEATURE
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED
  • 1X EZ LED Control switch

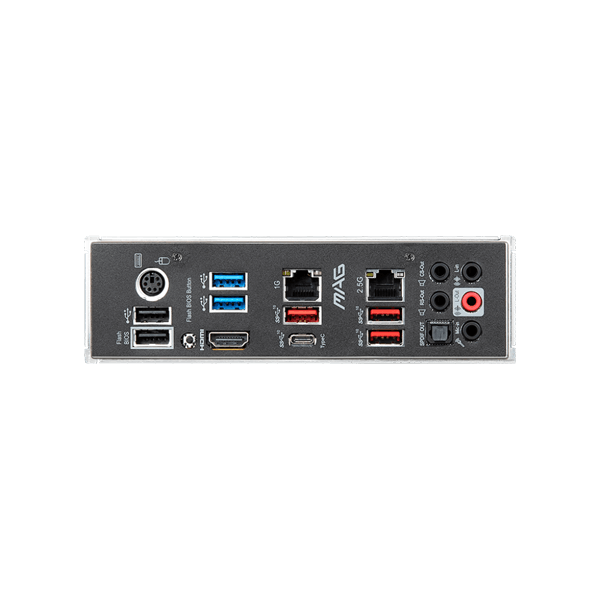

BACK PANEL PORTS
  • PS/2 Mouse / Keyboard
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • Gigabit LAN Port
  • 2.5G LAN Port
  • HD Audio Connectors
  • USB 2.0 Port
  • Flash BIOS Button
  • HDMI 2.1 Port
  • USB 3.2 Gen 2 10Gbps (Type-C)
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • Optical S/PDIF OUT
DIMENSIONS
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
OPERATING SYSTEM
  • Support for Windows® 10 64-bit

Warranty

3 years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform AMD
Socket AM4
Chipset X570
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX
Warranty 3 Years

Questions and Answers

Q. Dose is support Gigabyte RTX 3060 Gaming OC 12GB Graphics Card? 25/04/2023

A. Yes.

Vaibhav vaishnav (Verified Buyer )

Q. 1) Does it support windows 11 ?
2) Does it support ryzen 5 5600 out of the box ? It will need bios update 22/04/2023

A.

1. Yes Sir.


2. BIOS update is required.
