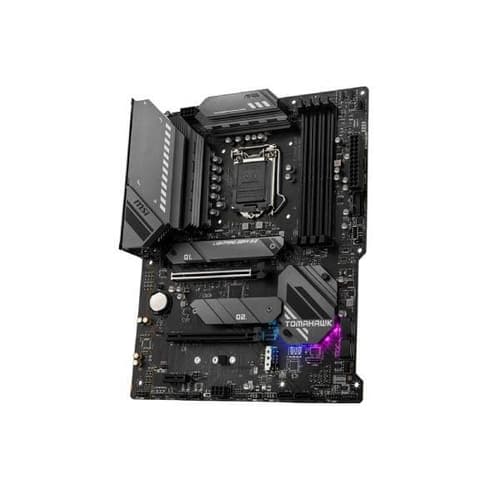

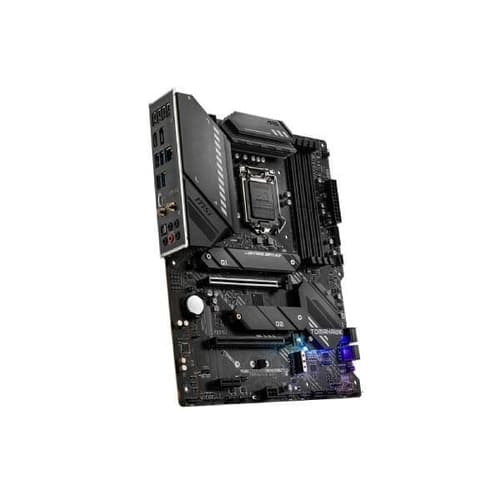

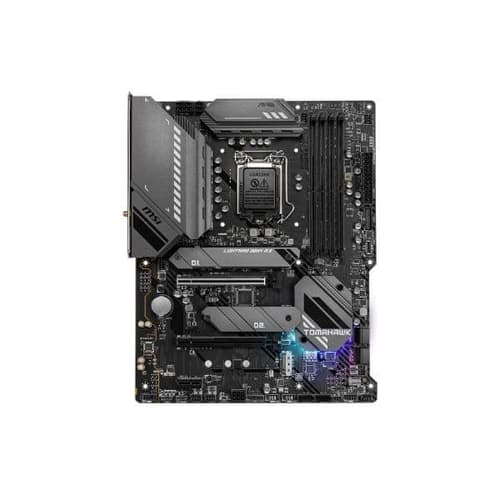

MSI MAG B560 Tomahawk WIFI Motherboard

Name: MSI MAG B560 Tomahawk WIFI Motherboard
Brand: MSI
SKU: MSI
Price: 17200.00 INR
Availability: OutOfStock

/ Write a review

7.5% Instant Discount on HDFC Credit & Debit Card EMI

Tech Yatra Sale T&C - Click Here For Details

Enjoy Instant UPI Discount on Every Transactions.

Brand: MSI
Product Code: MAG-B560-TOMAHAWK-WIFI
Availability: Out Of Stock

MSI MAG B560 Tomahawk WIFI Motherboard

Offer Price

₹17,200

₹26,700

Free Delivery

Check

Delivery is guaranteed as long as our locations stay open according to government regulations.

Description
Specification

Features

MAG B560 TOMAHAWK WIFI

Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5066(OC) MHz
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
Audio Boost: Reward your ears with studio grade sound quality
Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™

Specifications

PROCESSOR	Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processor socket LGA1200
CHIPSET	Intel® B560 Chipset
MEMORY	4 x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOTS	2x PCIe x16 slots PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel ® CPU PCI_E2 (from B560 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (from B560 chipset)
ONBOARD GRAPHICS	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics Graphics specifications may vary depending on the CPU installed.
MULTI-GPU	Supports 2-Way AMD® CrossFire™ Technology
STORAGE	6x SATA 6Gb/s ports (from B560 chipset) 3x M.2 slots (Key M) M2_1 slot (from CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from B560 chipset) Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from B560 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core™ processors SATA1 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB	Intel® B560 Chipset 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) 4x USB 2.0 ports on the back panel Hub-GL850G 4x USB 2.0 ports available through the internal connectors
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® RTL8125B 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH	Intel®Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 [Key-E] slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz(160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2, FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
INTERNAL CONNECTORS	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
LED FEATURE	1x EZ LED Control switch 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED

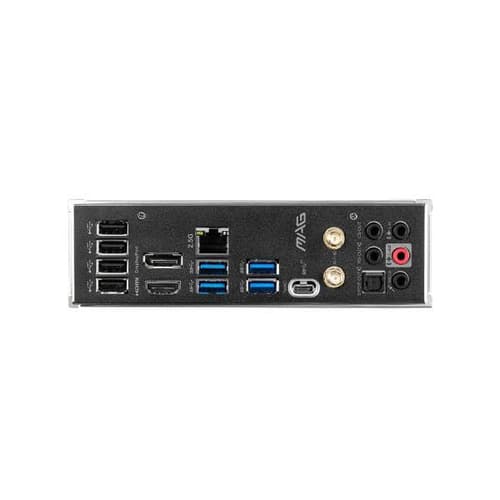

BACK PANEL PORTS	USB 2.0 DisplayPort 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Motherboard
Platform	INTEL
Socket	LGA1200
Chipset	B560
Max Memory Support	128 GB
Supported Memory Type	DDR4
Form Factor	ATX
Warranty	3 Years

Questions and Answers

Q. Can I use a unlocked processor on it like 11600K ? , if I can use it on without overcloking then can I get the performance is better then 11600 or less then 11600 ??? 15/09/2022

A. You can use the mentioned processor, but can not overclock. The performance will be better than the Intel i5 11600 processor.
