Features:

• Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
• High-Speed Connectivity: Intel Killer 5G LAN, Wi-Fi 6E Solution and Front USB Type-C - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• Lightning Fast Game experience: PCIe 5.0 slot & Lightning Gen 5 x4 M.2
• EZ DIY: EZ M.2 Shield Frozr II, EZ PCIe Clip II and EZ Antenna
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

One Finger for EZ GPU Installation

The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.

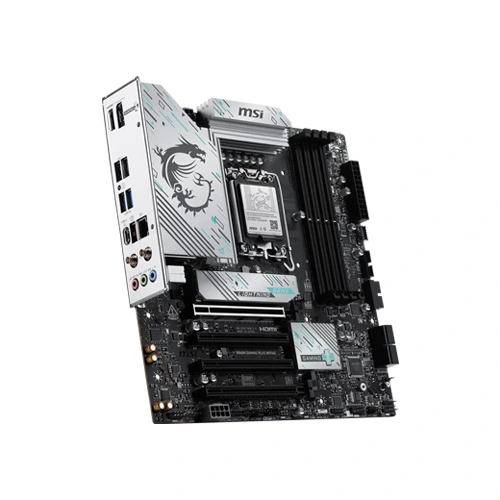

PRE-INSTALLED I/O SHIELD

The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.

EZ MOUNTING

MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.

EZ CONN-DESIGN

The MSI exclusive JAF_1 header allows MPG EZ120 ARGB fan to operate with a single cable. Alternatively, the JAF_1 header can be converted into additional ARGB Gen 1 and fan headers by using a dedicated 1-to-2 EZ Conn-cable, streamlining and optimizing the entire building process.

EZ DEBUG LED

Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.

EZ Memory Detection LED

This LED lights up when it detects faulty memory in slots, eliminating guesswork from troubleshooting.

EZ OVERCLOCKING

While overclocking can be overly complex for some, MSI Click BIOS X made it more accessible with multiple one-click overclock features, allowing users to easily enhance system performance without delving into intricate settings.

EZ OPTIMIZATION

A host of features inject artificial intelligence into key aspects of your computing experience to make smarter, real-time optimizations. The MSI Center offers a clean, minimal interface to customize and manage your PC settings. The AI Engine, for example, automatically adjusts settings based on the applications you're using, ensuring seamless performance.

6 + 1 + 1 + 1 P-PAK Power System

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 pin power connector and exclusive Core Boost technology, the B860M GAMING PLUS WIFI6E is ready to sustain heavy gaming loadings.

PCB DESIGN

MSI utilizes PCB Fabric Technology to enhance signal performance, resulting in higher bandwidth and faster data transfer while minimizing signal loss. The PCB Fabric Technology also offers better impedance control and improved thermal stability, allowing the boards to endure demanding conditions. Due to the high-quality materials used, MSI motherboards are highly reliable and well-suited for the requirements of modern technology.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Enlarged Chipset Heatsink

The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
