MSI B450I Gaming Plus Max WIFI Motherboard
Bank Credit & Debit Card EMI Offer
MSI – END USER PROMOTION IS BACK Offer T&C for Details Click Here
- Brand: MSI
- Product Code: B450I-GAMING-PLUS-MAX-WIFI
- Availability: Out Of Stock

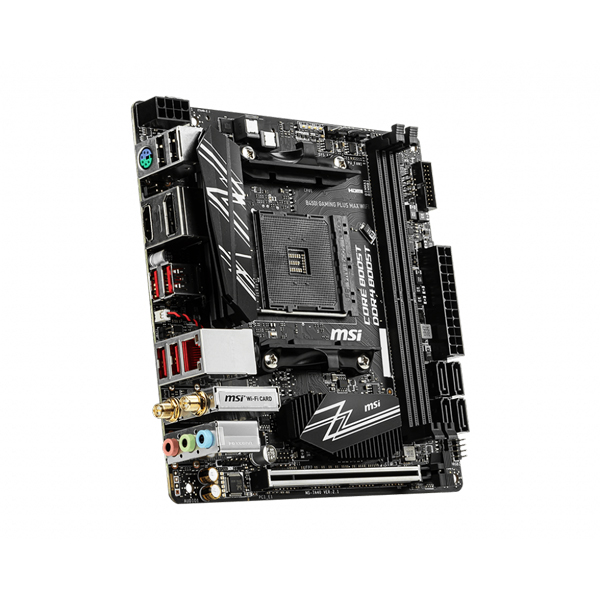

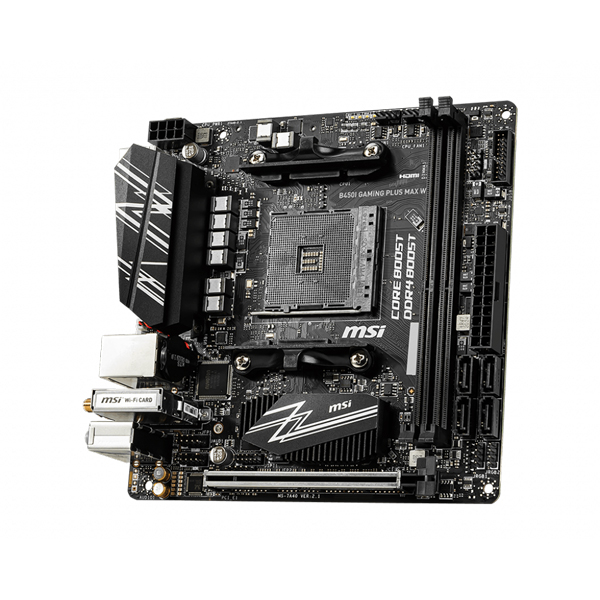

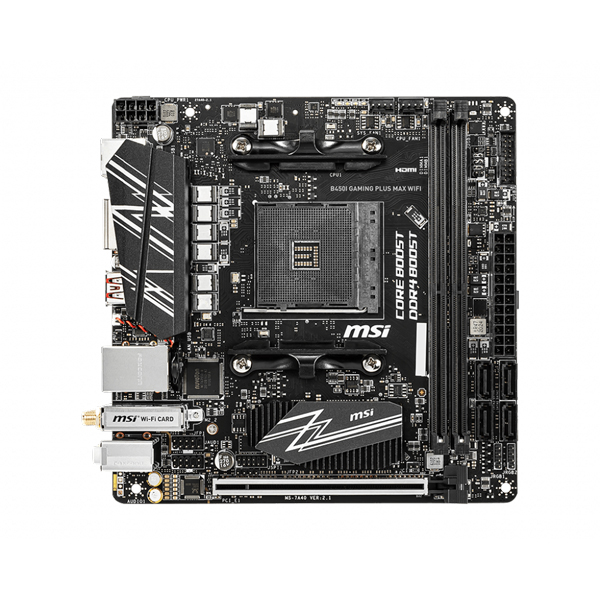

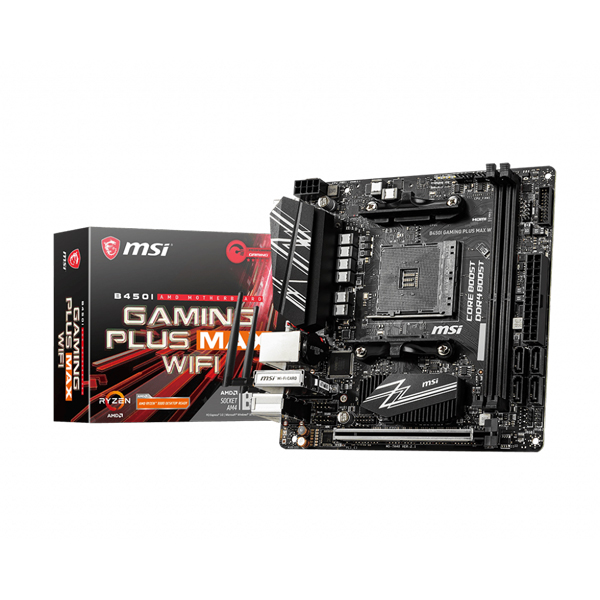

MSI B450I Gaming Plus Max WIFI Motherboard
₹11,800
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features
B450I GAMING PLUS MAX WIFI
- Supports 1st, 2nd and 3rd Gen AMD Ryzenâ„¢ / Ryzenâ„¢ with Radeonâ„¢ Vega Graphics and 2nd Gen AMD Ryzenâ„¢ with Radeonâ„¢ Graphics / Athlonâ„¢ with Radeonâ„¢ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 3466(OC) MHz
- Lightning Fast Game experience: Turbo M.2
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- DDR4 Boost: Give your DDR4 memory a performance boost with A-XMP
- Intel® Wireless support: delivers AC speeds up to 433Mbps with lower CPU loading and better long-term usage.
- In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
- Audio Boost: Reward your ears with studio grade sound quality
Specifications
| CPU | Support AMD® Ryzen™ 1st, 2nd and 3rd Generation / Ryzen™ with Radeon™ Vega Graphics / Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4 |
| Chipset | AMD B450 Chipset |
| Memory |
|
| Expansion Slots |
1x PCIe 3.0 x16 slot
|
| Onboard Graphics |
|
| Storage |
AMD® B450 Chipset
AMD® CPU
|
| RAID |
AMD® B450 Chipset
|
| USB |
AMD® B450 Chipset
AMD® CPU
|
| Audio |
Realtek® ALC887/ALC897 Codec
|
| LAN | 1x Realtek® 8111H Gigabit LAN controller |
| Wireless LAN & Bluetooth® |
Intel® Dual Band Wireless-AC 3168 module</p
|
| Internal connectors |
|
| Back panel ports |
|
| I/O Controller | NUVOTON NCT6795D Controller Chip |
| Dimensions |
|
| Warranty | 3 Year |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Motherboard | |
| Platform | AMD |
| Socket | AM4 |
| Cpu Type | Support AMD Ryzen 1st, 2nd and 3rd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors for Socket AM4 |
| Chipset | B450 |
| Memory Speed | up to 3466 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports 1866/ 2133/ 2400/ 2667Mhz by JEDEC Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC MODE Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory [non-ECC mode] |
| Graphics Port | 1 x DisplayPort, 1 x HDMI |
| Expansion Slots | 1x PCIe 3.0 x16 slot Supports x16 speed with AMD Ryzen 1st, 2nd and 3rd Generation processors Supports x8 speed with AMD Ryzen with Radeon Vega Graphics processors Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors |
| Wireless Networking | WiFi, Bluetooth 4.2 |

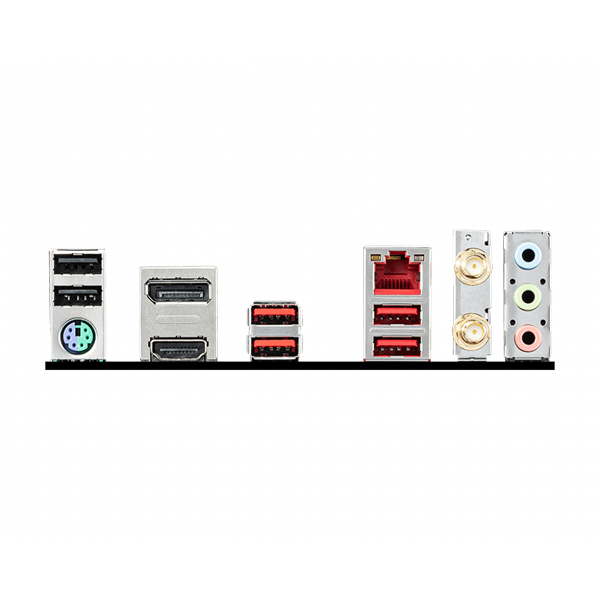

| Back Panel I/O Ports | USB 2.0 DisplayPort LAN Wireless / Bluetooth Keyboard / Mouse HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A Audio Connectors |
| Internal I/O Connector | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector [support additional 2 USB 2.0 ports] 1x USB 3.2 Gen1 connectors [support additional 2 USB 3.2 Gen1 ports] 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 2x 5050 RGB LED strip 12V connectors |
| Form Factor | Mini-ITX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
