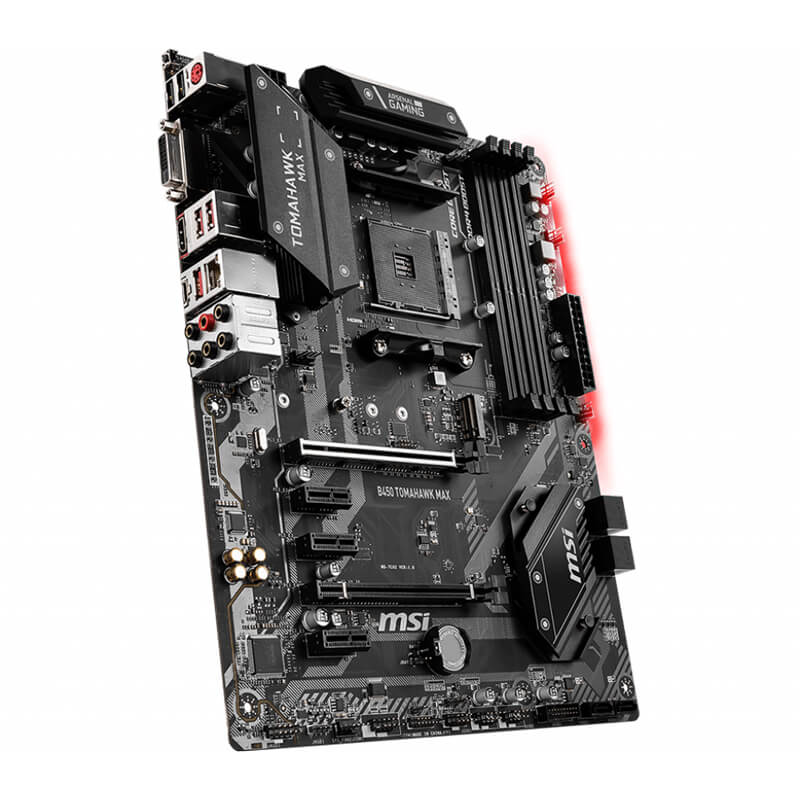

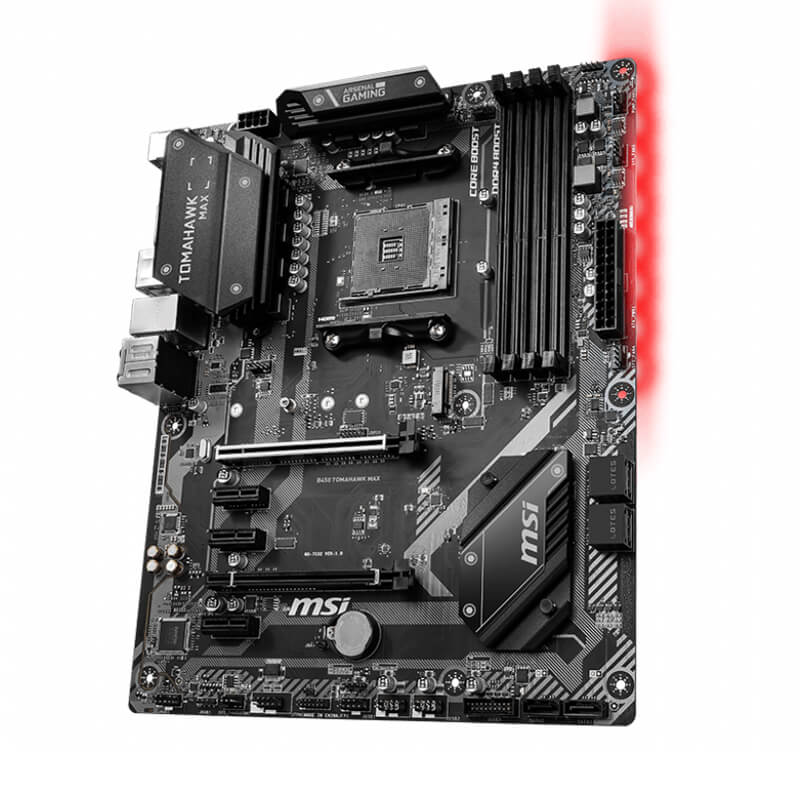

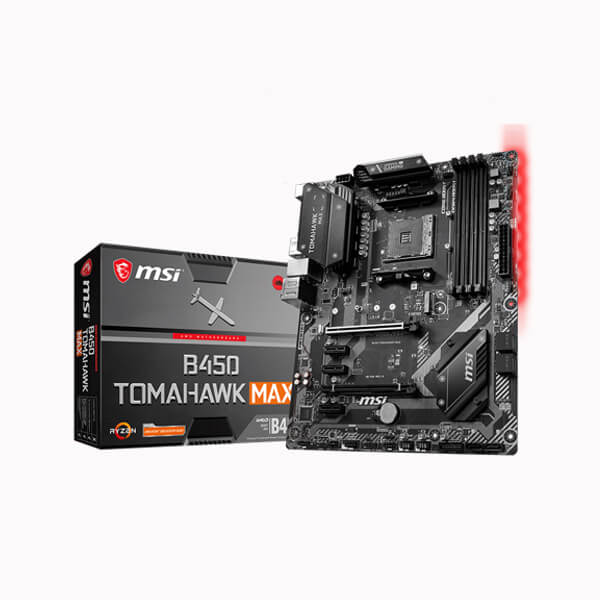

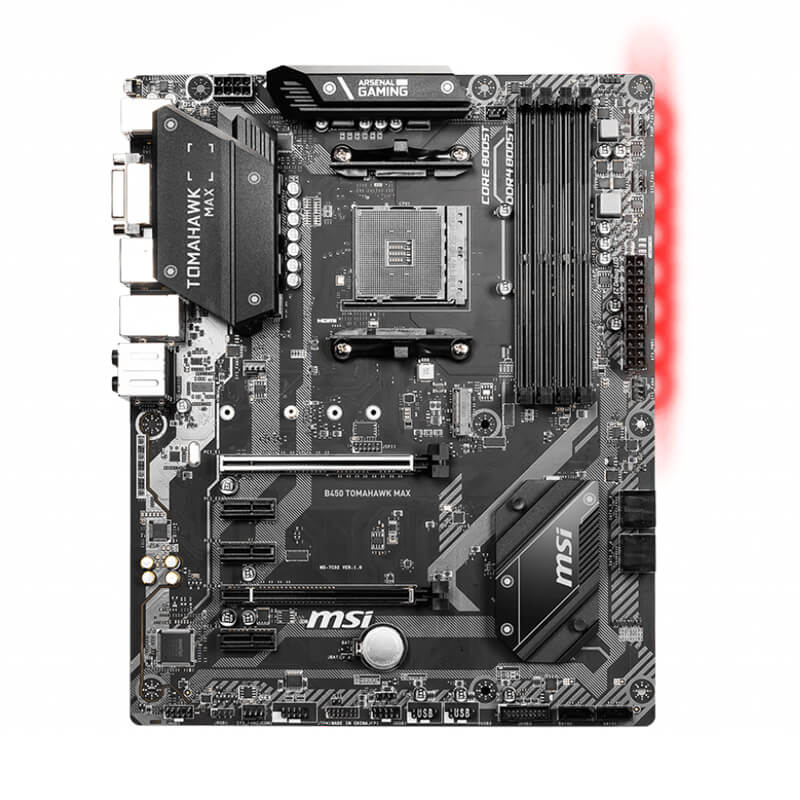

MSI B450 Tomahawk Max
Bank Credit & Debit Card EMI Offer
MSI – END USER PROMOTION IS BACK Offer T&C for Details Click Here

- AM4 Socket / B450 Chipset
- ATX Form Factor
- 4 x DDR4 Memory Slots
- Up to 128 GB Memory
- 1 x DVI-D, 1 x HDMI Video Outputs
- Brand: MSI
- Product Code: B450-TOMAHAWK-MAX
- Availability: Out Of Stock Inclusive of all taxes
MSI B450 Tomahawk Max
Offer Price
₹10,259
(36% off ) ₹15,999 36% off
Free Delivery
Check
Delivery is guaranteed, subject to courier serviceability and government regulations in your area.
Motherboard
- Platform
- AMD
- Socket
- AM4
- Cpu Type
- Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
- Chipset
- B450
- Memory Speed
- up to 4133
- Max Memory Support
- 128 GB
- Supported Memory Type
- DDR4
- Channel Supported
- Dual Channel
- Memory Feature
- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE)
For AMD Other CPU
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode) - Graphics Port
- 1 x DVI-D, 1 x HDMI
- Expansion Slots
- 1 x PCIe 3.0 x16 slot (PCI_E1)
1st, 2nd and 3rd Gen AMD Ryzen processors support x16 speed
Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors support x8 speed
1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
3 x PCIe 2.0 x1 slots - Storage
- AMD CPU
2 x SATA 6Gb/s ports
1 x M.2 slot (Key M)
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s
Supports 2242/ 2260 /2280/ 22110 storage devices
AMD B450

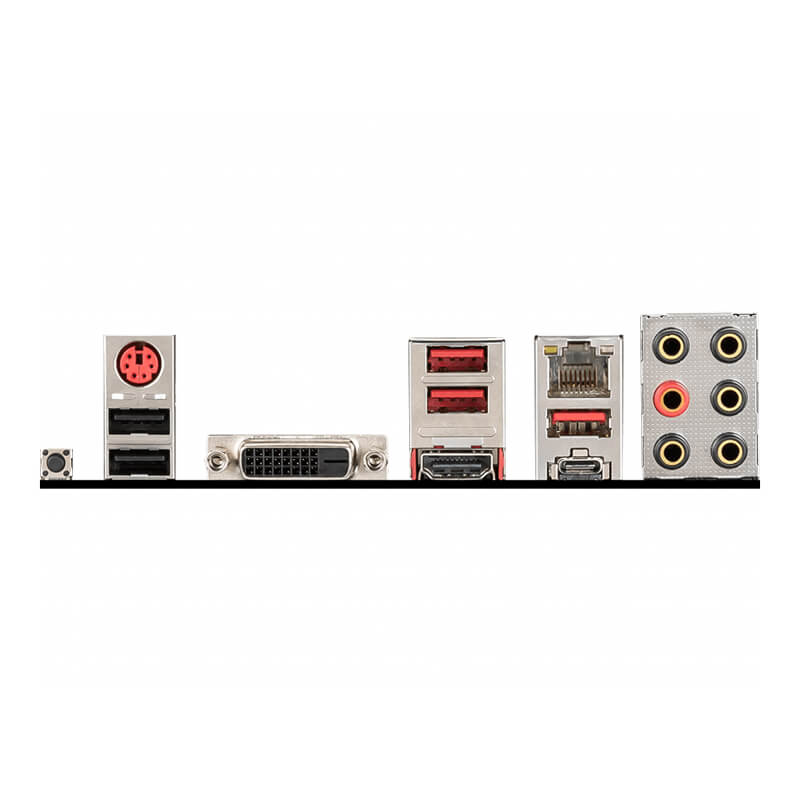

4 x SATA 6Gb/s - Back Panel I/O Ports
- Flash BIOS Button
PS/2 Combo Port
USB 3.2 Gen1
LAN Port
HD Audio Connectors
USB 2.0 Port
DVI-D Port
HDMI Port
USB 3.2 Gen2 Type A+C - Internal I/O Connector
- 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump-fan connector
4 x 4-pin system fan connectors
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Serial Port connector
1 x Clear CMOS jumper
2 x 5050 RGB LED strip 12V connectors - Form Factor
- ATX
- Warranty
- 3 Years
Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only
Features
Military style with extended heatsink design for better thermal solution, plus DDR4 Boost, Core Boost, Turbo M.2 and USB 3.2 Gen2 connector
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 4133(OC) MHz
- Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- DDR4 Boost:Advanced technology to deliver pure data signals for the best gaming performance and stability.
- MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire™
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.
- Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
Specifications
| PROCESSOR | Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
| CHIPSET | AMD® B450 Chipset |
| MEMORY |
|
| SLOTS | 1 x PCIe 3.0 x16 slot (PCI_E1)
|
| ONBOARD GRAPHICS |
|
| MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE |
AMD® CPU
AMD® B450
|
| RAID |
AMD® B450
|
| USB |
AMD® B450
AMD® CPU
|
| AUDIO |
Realtek® ALC892 Codec
|
| LAN | 1 x Realtek® 8111H Gigabit LAN controller |
| INTERNAL CONNECTORS |
|
| BACK PANEL PORTS |
|
| DIMENSIONS |
|
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
