Msi B365M PRO-VH
Msi B365M PRO-VH
Msi B365M PRO-VH
Msi B365M PRO-VH
Msi B365M PRO-VH
Msi B365M PRO-VH
Msi B365M PRO-VH
Msi B365M PRO-VH
Msi B365M PRO-VH
Msi B365M PRO-VH

Msi B365M PRO-VH

/ Write a review

Tech Yatra sale 2025
  • Brand: MSI
  • Product Code: B365M-PRO-VH
  • Availability: Out Of Stock

Msi B365M PRO-VH

Offer Price

₹6,000

(2% off ) ₹6,150
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

FEATURES



Intel LGA-1151 Micro-ATX motherboard with DDR4 2666MHz, Core Boost, DDR4 Boost, Audio Boost and EZ Debug LED

  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 2666 MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • Audio Boost: Reward your ears with studio grade sound quality.
  • EZ Debug LED: Easiest way to troubleshoot.
  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.

SPECIFICATIONS



PROCESSOR Supports  9th/8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
CHIPSET Intel® B365 Chipset
MEMORY
  • 2x DDR4 memory slots, support up to 32GB
  • Supports DDR4 2666/ 2400/ 2133 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
SLOTS
  • 1 x PCIe 3.0 x16 slots
  • 2 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
  • 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz
  1. No display support when using the processor model with suffix F
STORAGE

Intel B365 Chipset

  • 6 x SATA 6Gb/s ports
  • 1 x M.2 slot (Key M)
    • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready
  1. The SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID

Intel B365 Chipset

  • Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
USB

Intel B365 Chipset

  • 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)
  • 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO

Realtek ALC887 Codec

  • 7.1-Channel High Definition Audio
LAN 1 x Realtek RTL8111H Gigabit LAN controller
INTERNAL CONNECTORS
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x USB 3.1 Gen1 connector1 (supports additional 2 USB 3.1 Gen1 ports)
  • 6 x SATA 6Gb/s connectors
  • 1 x Clear CMOS jumper
  • 2 x Front panel connectors
  • 1 x Serial port connector
  • 1 x Chassis Intrusion connector
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x Front panel audio connector
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector
  • 1 x TPM module connector

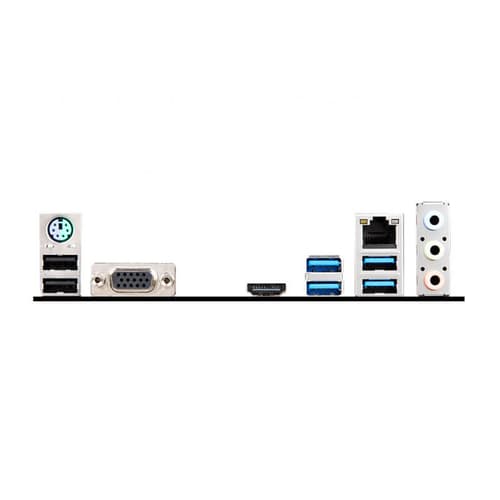

BACK PANEL PORTS
  1. PS/2 Combo
  2. VGA Port
  3. LAN Port
  4. HD Audio Connectors
  5. USB 2.0 Ports
  6. HDMI Port
  7. USB 3.1 Gen1 Ports
DIMENSIONS
  • 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
  • Micro-ATX Form Factor
MOUNTING 6 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.





Motherboard
Platform INTEL
Socket LGA1151
Chipset B365
Max Memory Support 32 GB
Supported Memory Type DDR4
Form Factor M-ATX

Questions and Answers

Q. Does this motherboard support i5-9400? 11/07/2021

A. Yes.

Aniket (Verified Buyer )

Q. How many number of max GPU's this motherboard support ? is it SLI or Crossfire compatible ?
 15/03/2021

A. 1 GPU only.

swapnil (Verified Buyer )

Q. is this motherboard compatible for building a pc using i3 9100f, 8gb 24000 ram, msi gtx 1650 gpu, corsair 450watt bronze certified psu or is there any other motherboard is recommended 13/03/2021

A. Yes, this motherboard is compatible with the build.

Thanga Vignesh (Verified Buyer )

Q. Does it have a 3-pin connector
 28/01/2021

A. No.

Ayush Patra (Verified Buyer )

Q. It supports Asus Rx 580 4 GB  graphic card.
 24/04/2020

A. Yes, it is compatible. Just make sure to check VGA clearance before choosing cabinet.

Meganathan (Verified Buyer )
