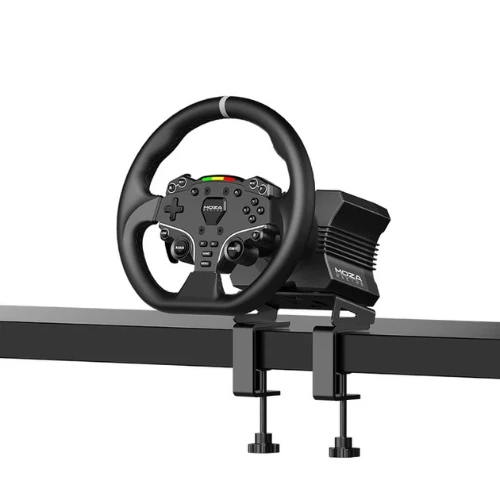

Building on the proven MOZA R5 Bundle, the R5 Pro Bundle elevates the complete direct drive experience with enhanced 6 Nm torque, an ultra-precise 21-bit magnetic encoder, a 600 MHz high-performance CPU, and MOZA NexGen Force Feedback Algorithm 5.0. Paired with the ES Lite steering wheel and SR-P Lite2 two-pedal set, it delivers more detailed road feel, faster response, and smoother torque transitions in a compact, ready-to-race package. Fine-tune your setup through MOZA Pit House or the MOZA Racing App.

Direct Drive. Ready to Race.

The MOZA R5 Pro Racing Simulator combines enhanced 6 Nm torque, 21-bit precision, and NexGen Force Feedback Algorithm 5.0 in one complete, race-ready setup.

Enhanced 6 Nm Direct Drive Torque

The R5 Pro delivers 6 Nm of constant torque—9.1% more than the previous generation—for detailed, responsive, and consistent force feedback.

21-Bit High-Resolution Magnetic Encoder

Over 2 million resolution points deliver 64× the precision of the previous generation for finer feedback detail and more accurate steering.

NexGen Force Feedback Algorithm 5.0

MOZA’s latest algorithm delivers richer road detail, faster dynamic response, and flexible tuning for a refined, more realistic driving feel.

Motorsport-Inspired Design

Inspired by MOZA’s flagship wheelbases, the compact R5 Pro brings a sharper, more aggressive motorsport look to any racing setup.

Aluminum Alloy Quick Release

The motorsport-inspired aluminum quick release enables fast wheel installation and swaps while maintaining a secure, reliable connection.

Intelligent Temperature Control

The upgraded cooling system and real-time temperature monitoring maintain consistent force feedback and reliable performance throughout extended racing sessions.

High-Strength Steel Construction

High-strength steel and a premium coated finish withstand heavy braking forces while delivering outstanding rigidity and long-term durability.

22 Programmable Inputs

22 programmable inputs keep essential vehicle controls within easy reach, so you can stay focused on the race.

SPECS

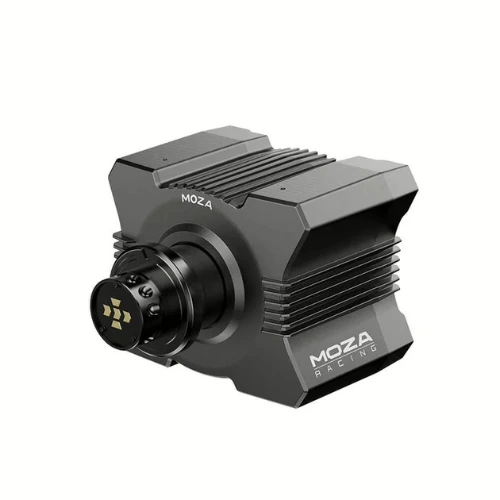

MOZA R5 Pro Wheelbase

FFB Drive System: Direct Drive
Max Steering Angle: 90~2700°
Housing Material: Aluminum alloy
Color: Black
Peak Torque: 6Nm
Peak Power: 100W
Input Voltage: 110V~220V AC->12V DC
Weight: 2.9kg
Encoder Resolution: 21bit
USB Refresh Rate: 1000Hz
App Functions: Supported
Quick Release: Supported
Connection Ports: Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
Accessories: User manual, power adapter, cable, tool kit
Mounting Options: Bottom, front, and desktop mounting
Desk Clamp: Included
Online Firmware Update: Supported

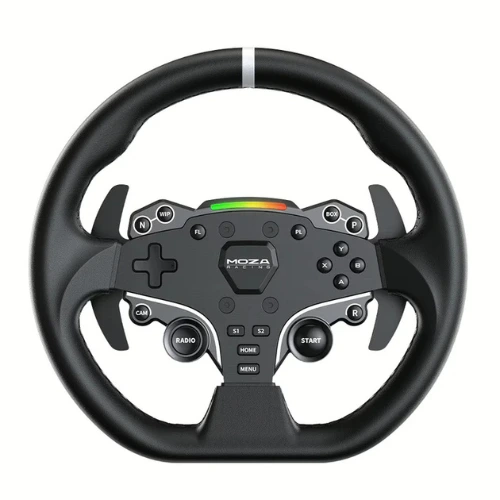

MOZA ES Lite Steering Wheel

Grip Material: TPE
Frame Material: Aluminum alloy
Shift Paddles Material: Aluminum alloy
Size: 280mm
Buttons: 22
Rev Lights: 10 top-mounted RGB LEDs
Intelligent Telemetry: Supported
Fully Adjustable RPM LEDs through MOZA Pit House: Supported
Release Method: All-aluminum quick release

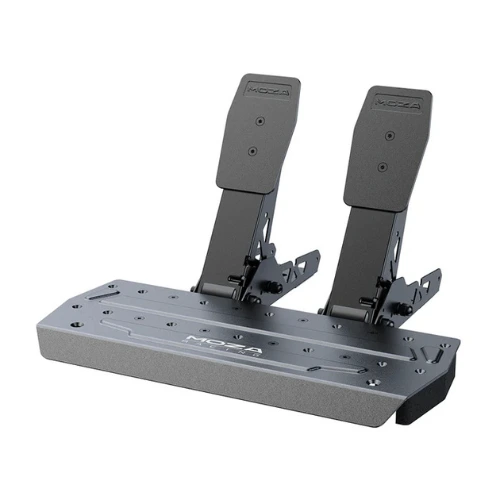

MOZA SRP Lite2 Pedals

Pedal Face Material: High-strength Steel
Pedal Base Material: High-strength Steel
Sensor: Contactless Hall Sensor
Pedal Left/Right Adjustment Range: 15mm
Pedal Height Adjustment Range: 36mm
Pedal Curve Adjustment: Supported
Real-time Pedal Output Display: Supported

Warranty

R5 Pro Drive Base: 2 Years
SR-P and Power Supply: 1 Year
Cable: 6 Months

Note: Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
