Kingston Value 8GB 3200MHz CL22 DDR4 RAM
Bank Credit & Debit Card EMI Offer
- Brand: KINGSTON
- Product Code: KVR32N22S8L-8WP
- Availability: In Stock
Kingston Value 8GB 3200MHz CL22 DDR4 RAM
Offer Price
₹5,577
(71% off ) ₹19,000
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features:
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 0.738” (18.75mm)
- RoHS Compliant and Halogen-Free

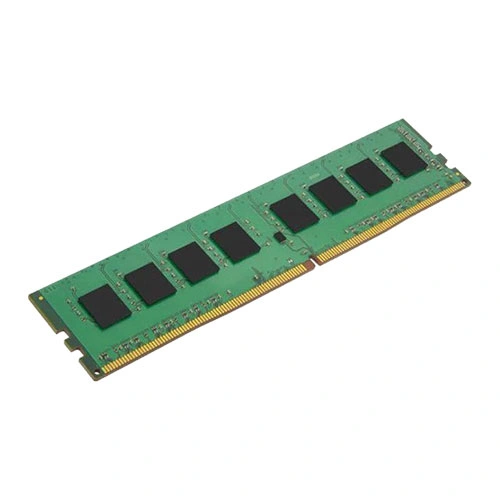

This document describes ValueRAM's KVR32N22S8L/8WP is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM),1Rx8,VLP (very low profile) memory module, based on eight 1G x 8-bit FBGA components.The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
| Memory-(Ram) | |
| Model | KVR32N22S8L-8WP |
| Product Series | VALUE |
| Memory Type | DDR4 |
| Capacity | 8GB |
| Kit Type | 8GB x 1 |
| Speed | 3200 MHz |
| Tested Latency | 22-22-22 |
| Tested Voltage | 1.2 V |
| Dimm Type | UDIMM |
| Warranty | Limited Lifetime |
| Note | Features, Price and Specifications are subject to change without notice. Images used for Representation purposes Only. |
