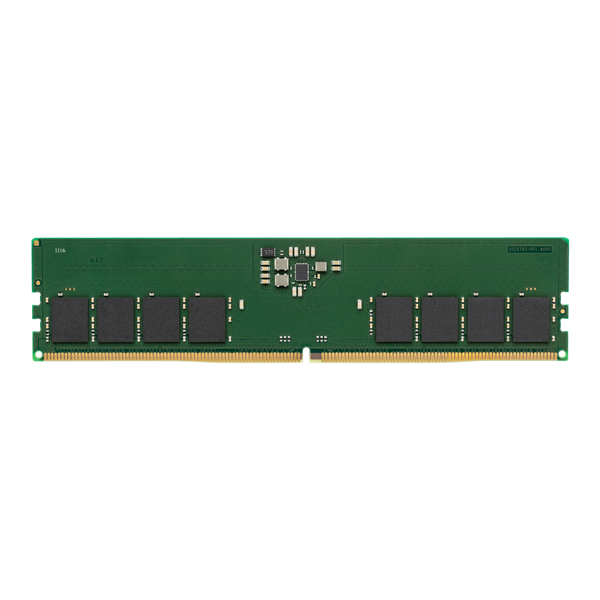

Kingston Value 16GB (16GBx1) DDR5 4800MHz RAM
Bank Credit & Debit Card EMI Offer
- Brand: KINGSTON
- Product Code: KVR48U40BS8-16
- Availability: Out Of Stock
Kingston Value 16GB (16GBx1) DDR5 4800MHz RAM
Offer Price
₹12,789
(36% off ) ₹19,999
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features:
This document describes ValueRAM's KVR48U40BS8-16 is a 2G x 64-bit (16GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
Specification:
| CL(IDD) | 40 cycles |
| Row Cycle Time (tRCmin) | 48ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0o C to +85o C |
| Storage Temperature | -55o C to +100o C |
| Warranty | Limited Lifetime |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Memory-(Ram) | |
| Model | KVR48U40BS8-16 |
| Product Series | VALUE |
| Memory Type | DDR5 |
| Capacity | 16GB |
| Lighting | No |
| Kit Type | 16GB x 1 |
| Speed | 4800 MHz |
| Tested Latency | 40-39-39 |
| Tested Voltage | 1.1 V |
| Dimm Type | UDIMM |
| Warranty | Limited Lifetime |
| Motherboard | |
| Note | Features, Price and Specifications are subject to change without notice.Images use for Representation Purpose Only |
