Kingston Value 16GB (16GB x 1) DDR4 2666 MHz Laptop Ram
Bank Credit & Debit Card EMI Offer
- Brand: KINGSTON
- Product Code: KVR26S19D8-16
- Availability: Out Of Stock
Kingston Value 16GB (16GB x 1) DDR4 2666 MHz Laptop Ram
₹6,999
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features

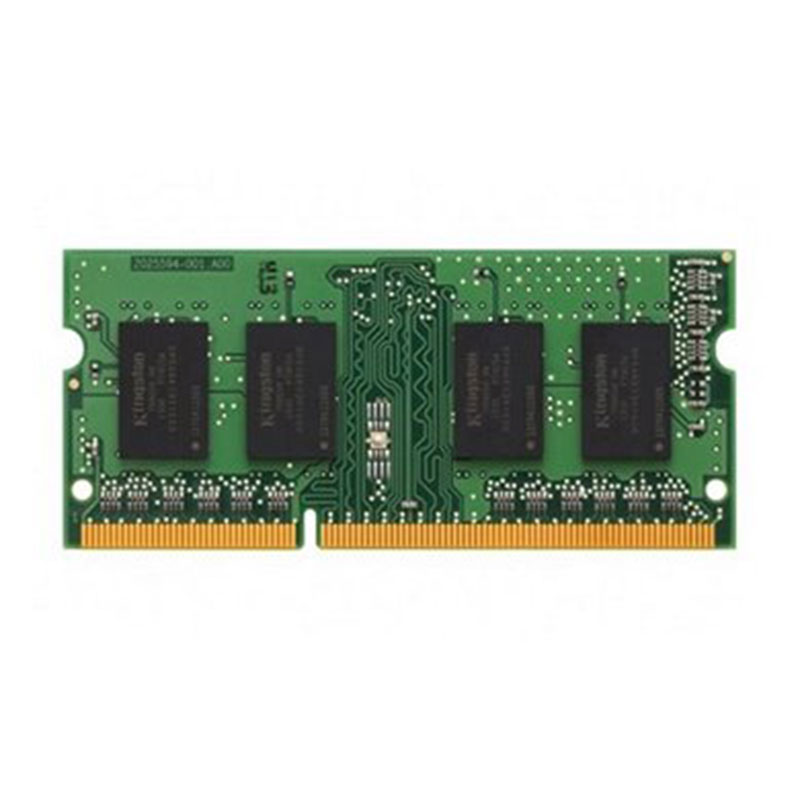

This document describes ValueRAM's KVR26S19D8/16 is a 2G x 64-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. This 260-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
Key features
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS) - Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
Specifications
| Model | KVR26S19D8/16 |
| Form Factor | SODIMM |
| Pins | 260 |
| Speeds | 2666MHz |
| Voltage | 1.2V |
| Module Capacities | 16GB |
| Kit Capacities | 16GB x 1 |
| Timings | 19-19-19 |
| Kit Configurations | Single Channel |
| Operating Temperature | 0° C to +85° C |
| Storage Temperature | -55° C to +100° C |
| Warranty | Lifetime |
| Note | ***Features, Price and Specifications are subject to change without notice. |
| Memory-(Ram) | |
| Model | KVR26S19D8-16 |
| Product Series | VALUE |
| Memory Type | DDR4 |
| Capacity | 16GB |
| Kit Type | 16GB x 1 |
| Speed | 2666 MHz |
| Tested Latency | 19-19-19 |
| Tested Voltage | 1.2 V |
| Dimm Type | SODIMM |
| Warranty | Lifetime |
| Note | Features, Price, Specifications are subject to change without notice.Images uses for Representation Purpose Only |
