Features:

• Data Center NVMe Performance - Incredible I/O consistency with sustained speeds of up to 3GB/s and 510K IOPS.
• Enterprise-Class Mixed-Use Storage - An exceptional balance of consistent I/O delivery with high read and write IOPS performance to manage a wide range of transactional workloads.
• Reduce Application Latencies - Quality of Service (QoS) delivers ultra-low transactional latency for large data sets and various web-based applications.
• On-board Power Loss Protection (PLP) - Enterprise- class protection to reduce possibility of data loss or corruption on ungraceful powerfails.

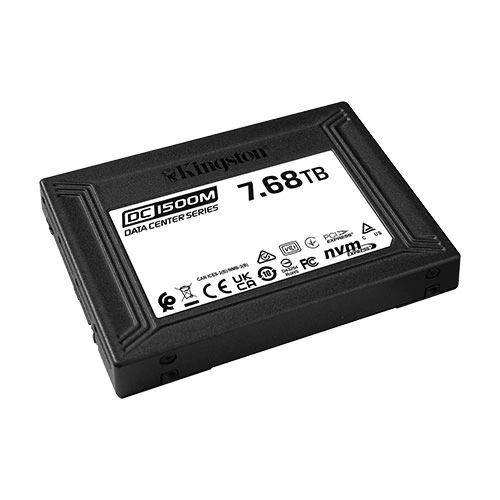

DC1500M U.2 ENTERPRISE SSD

Gen 3.0 x4 PCIe NVME Storage for Mixed-Use Workloads

Kingston DC1500M U.2 NVMe SSD features high-storage capacity and enhanced enterprise performance. It offers a high-performance Gen 3.0 x4 PCIe NVMe design to deliver latency and IOPS consistency. DC1500M is backed by strict QoS requirements to ensure predictable random IO performance as well as predictable latencies over a wide range of workloads.

The U.2 form factor design (2.5”, 15mm) works seamlessly with the latest generation servers and storage arrays utilizing PCIe and U.2 backplanes. DC1500M is hot pluggable eliminating the challenges of serviceable PCIe storage.

It boasts enterprise-class features such as end-to-end data path protection,namespace management, power loss protection (PLP), and telemetry monitoring for increased data center reliability. Backed by Kingston’s legendary pre- and post-sales support and a five-year limited warranty

Applications

The “mixed-use” workload drive makes it ideal for running a wide range of customer applications including:

• Virtualization
• High performance cloud service
• Web hosting caching
• High-resolution media capture and transport
• ERP, CRM, GL, OLAP, OLTP, ERM, BI, and EDW workloads

SPECIFICATIONS

• Form Factor: U.2, 2.5” x 15mm
• Interface: PCIe NVMe Gen3 x4
• Capacities: 7.68TB
• NAND: 3D TLC
• Sequential Read/Write: 7.68TBGB – 3,100MBs/2,700MBs
• Steady-State 4k Read/Write: 7.68TB – 420,000/200,000 IOPS
• Latency Quality of Service (QoS): 99.9 - Read/Write: <110 μs / <206 μs
• Static and Dynamic Wear Leveling: Yes
• Power Loss Protection (Power Caps): Yes
• Namespace Management Support: Yes - 64 Namespaces supported
• Enterprise Diagnostics: Telemetry, Media Wear, Temperature, Health and Error Logs, etc
• Endurance: 7.68TB — 13450 TBW5 (1 DWPD/5yrs)5 (1.6 DWPD/3yrs)5
• Power Consumption: 7.68TB – Idle: 7W Average Read: 7.30W Average Write: 17.14W Max
•                                    Read: 8.16W Max Write: 20.88W
• Operating temperature: 0°C ~ 70°C
• Dimensions: 100.09mm x 69.84mm x 14.75mm
• Vibration operating: 2.17G Peak (7–800Hz)
• Vibration non-operating: 20G Peak (10–2000Hz)
• MTBF: 2 million hours
