• Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Integrated Graphics Processor-Intel® HD Graphics support:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.

• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

Realtek® ALC1220-VB CODEC

* The back panel line out jack supports DSD audio.

High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard
  Intel® Wi-Fi 6E AX211 (For PCB rev. 1.1)
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

CPU:

• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

• 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)

CPU:

• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
• 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
• 6 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Chipset:

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
• 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the
  internal USB header
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available
  through the internal USB header)

Chipset+2 USB 2.0 Hubs:

• 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through
  the internal USB headers)

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt™ add-in card connectors
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x reset button
• 1 x Q-Flash Plus button
• 1 x Clear CMOS button
• 1 x reset jumper
• 1 x Clear CMOS jumper

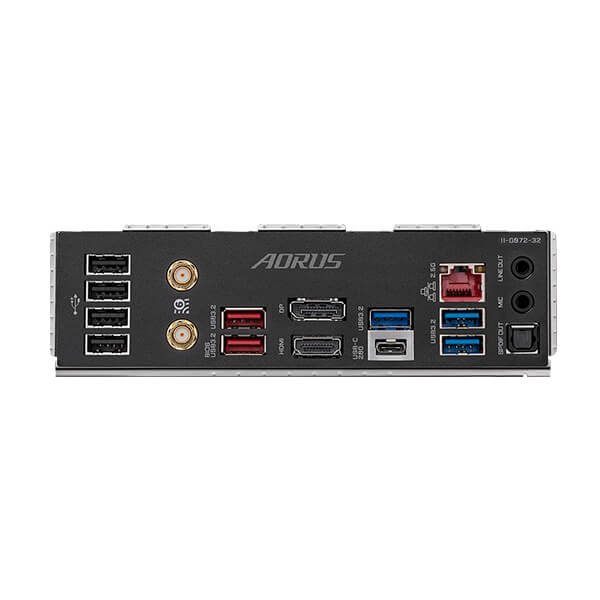

• 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 3 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 2 x SMA antenna connectors (2T2R) jk
• 1 x HDMI port
• 1 x DisplayPort
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan

(pump) you install.

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit
