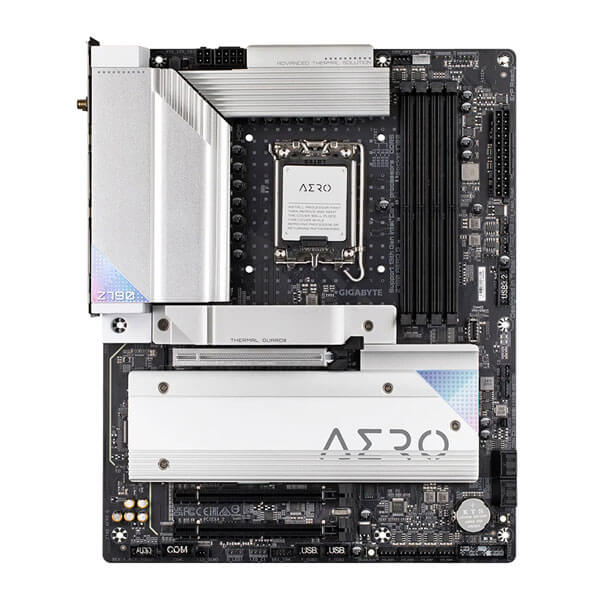

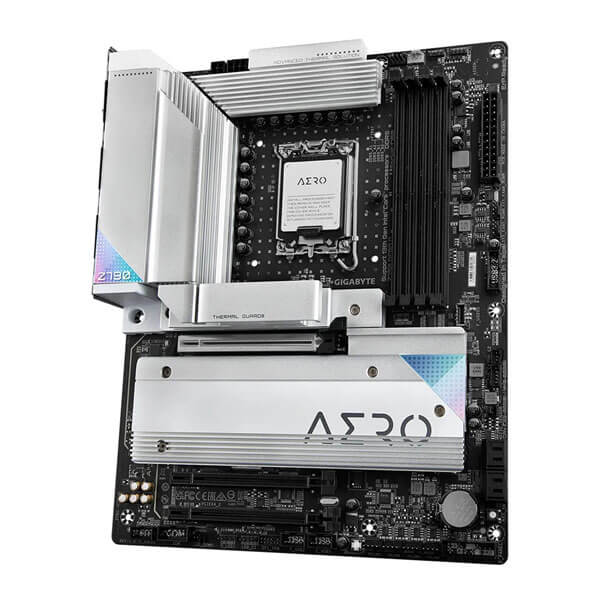

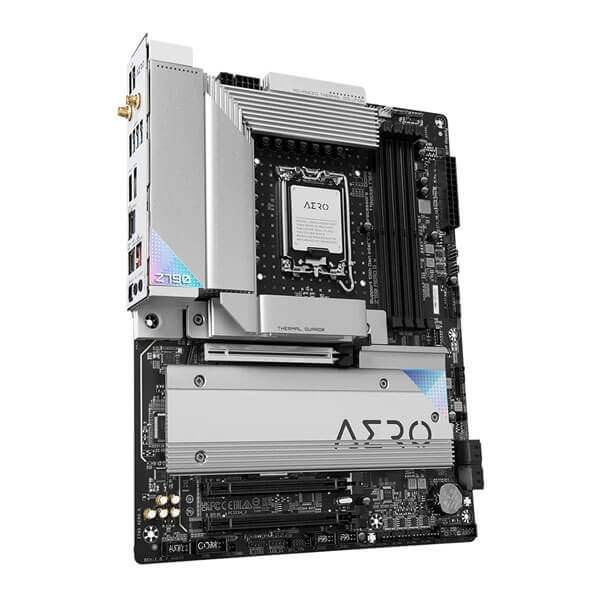

Gigabyte Z790 Aero G (Wi-Fi) Motherboard
Gigabyte Z790 Aero G (Wi-Fi) Motherboard
Gigabyte Z790 Aero G (Wi-Fi) Motherboard
Gigabyte Z790 Aero G (Wi-Fi) Motherboard
Gigabyte Z790 Aero G (Wi-Fi) Motherboard
Gigabyte Z790 Aero G (Wi-Fi) Motherboard
Gigabyte Z790 Aero G (Wi-Fi) Motherboard
Gigabyte Z790 Aero G (Wi-Fi) Motherboard
Gigabyte Z790 Aero G (Wi-Fi) Motherboard
Gigabyte Z790 Aero G (Wi-Fi) Motherboard
Gigabyte Z790 Aero G (Wi-Fi) Motherboard
Gigabyte Z790 Aero G (Wi-Fi) Motherboard

Gigabyte Z790 Aero G (Wi-Fi) Motherboard

/ Write a review

Bank Card Offer
  • Brand: GIGABYTE
  • Product Code: Z790-AERO-G
  • Availability: Out Of Stock

Gigabyte Z790 Aero G (Wi-Fi) Motherboard

Offer Price

₹32,960

(41% off ) ₹56,000
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features:

  • Supports 13th and 12th Gen Intel Coreâ„¢ Series Processors
  • VisionLINK : One USB-C Port for Video, Data Transfer and Charging
  • Dual Channel DDR5 : 4xSMD DIMMs with XMP Memory Module Support
  • Next Generation Storage : 1xPCIe 5.0 x4 and 4xPCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard III : To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
  • EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks : Intel 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity : DP IN, HDMI, Front USB-C 20Gb/s Support
  • Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

Specification:

Model Z790 AERO G
CPU
  • LGA1700 socket: Support for the 13th and 12th Generation Intel Coreâ„¢, Pentium Gold and Celeron Processors
  • L3 cache varies with CPU
Chipset Intel Z790 Express Chipset
Memory
  • Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
  • 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

  • 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz
    Support for drawing tablets and 20V@3A of power delivery.
    Support for DisplayPort 1.4 version and HDR.
    • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      Support for HDMI 2.0 version and HDCP 2.3.
Audio
  • Realtek® ALC1220-VB CODEC
The back panel line out jack supports DSD audio.
  • High Definition Audio
  • 2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • Support for S/PDIF Out
LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module

Intel® Wi-Fi 6E AX211

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots

CPU:

  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector
    For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

  • 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
  • 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Interface

CPU:

  • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  • 4 x SATA 6Gb/s connectors
USB

Chipset:

  • 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 3.2 Gen 1 Hub:

  • 4 x USB 3.2 Gen 1 ports on the back panel

Chipset+USB 2.0 Hub:

  • 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 4 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 5 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x noise detection header
  • 2 x Thunderboltâ„¢ add-in card connectors
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x Q-Flash Plus button
  • 1 x reset button
  • 1 x reset jumper
  • 2 x temperature sensor headers
  • 1 x Clear CMOS jumper

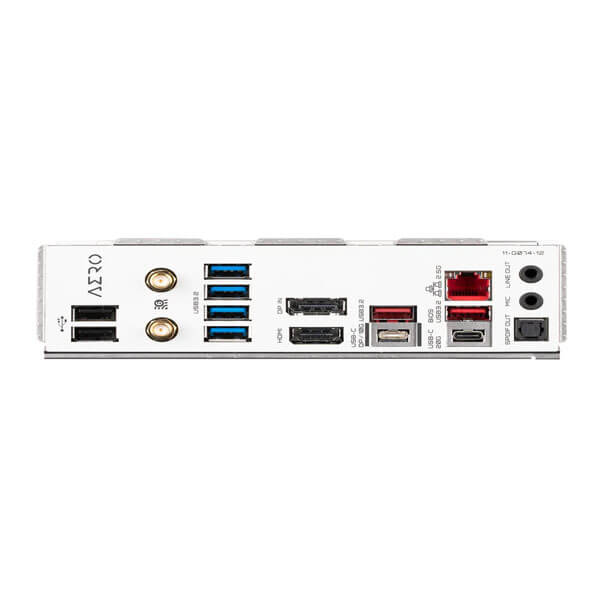

Back Panel Connectors
  • 2 x USB 2.0/1.1 ports
  • 2 x SMA antenna connectors (2T2R)
  • 4 x USB 3.2 Gen 1 ports
  • 1 x DisplayPort In port
  • 1 x HDMI 2.0 port
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  • 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 2 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • Noise detection
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for GIGABYTE Control Center (GCC)
  • Support for Q-Flash
  • Support for Q-Flash Plus
  • Support for Smart Backup
Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1700
Cpu Type 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset Z790
Memory Speed up to 7600
Max Memory Support 192 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Graphics Port 1 x HDMI port, 1 x USB Type-C port
Expansion Slots CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode
when a device is installed in the M2C_CPU connector
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the
PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
1 x PCI Express x16 slot, supporting PCIe 4.0 (BIOS setting required) and running at x4 (PCIEX4_2)
Wireless Networking Wi-Fi 6E,BLUETOOTH 5.3
Back Panel I/O Ports 2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
1 x DisplayPort In port
1 x HDMI port (Note)
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
Internal I/O Connector 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper
Form Factor ATX
Warranty 3 Years
Note

Features, Price, Specifications are subject to change without notice. Images used for representation purposes only
