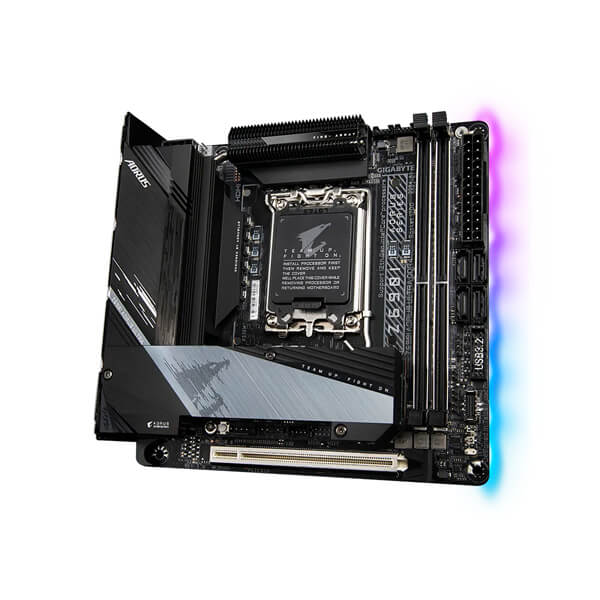

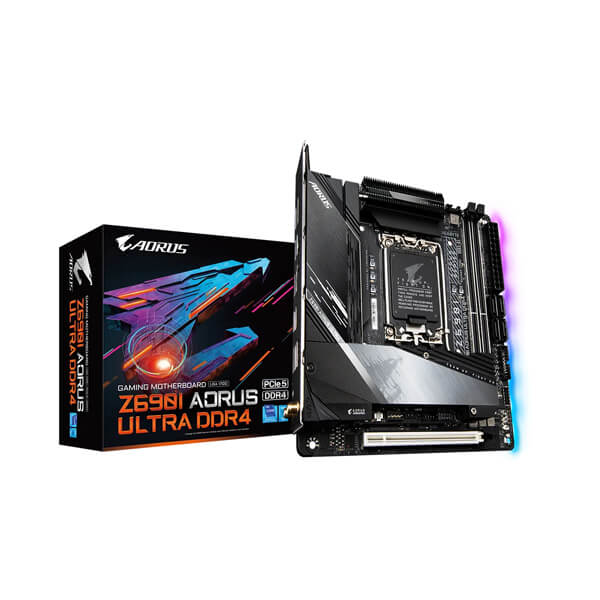

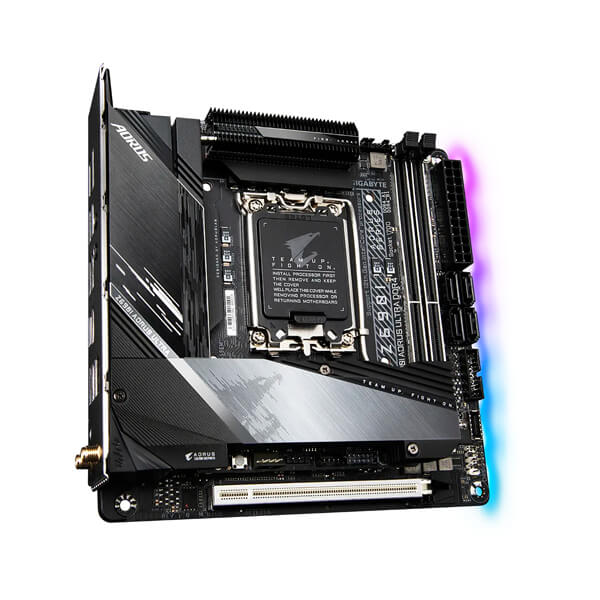

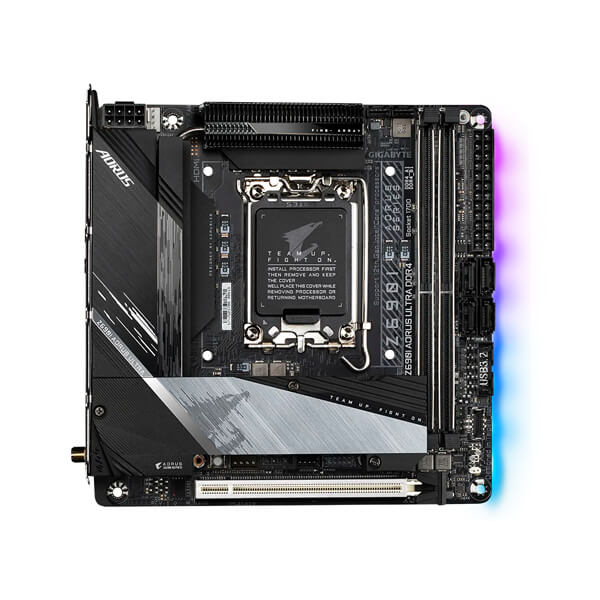

Gigabyte Z690I Aorus Ultra DDR4 (Wi-Fi) Motherboard
Gigabyte Z690I Aorus Ultra DDR4 (Wi-Fi) Motherboard
Gigabyte Z690I Aorus Ultra DDR4 (Wi-Fi) Motherboard
Gigabyte Z690I Aorus Ultra DDR4 (Wi-Fi) Motherboard
Gigabyte Z690I Aorus Ultra DDR4 (Wi-Fi) Motherboard
Gigabyte Z690I Aorus Ultra DDR4 (Wi-Fi) Motherboard
Gigabyte Z690I Aorus Ultra DDR4 (Wi-Fi) Motherboard
Gigabyte Z690I Aorus Ultra DDR4 (Wi-Fi) Motherboard
Gigabyte Z690I Aorus Ultra DDR4 (Wi-Fi) Motherboard
Gigabyte Z690I Aorus Ultra DDR4 (Wi-Fi) Motherboard

Gigabyte Z690I Aorus Ultra DDR4 (Wi-Fi) Motherboard

/ Write a review

Bank Card Offer
  • Brand: GIGABYTE
  • Product Code: Z690I-AORUS-ULTRA-DDR4
  • Availability: Out Of Stock

Gigabyte Z690I Aorus Ultra DDR4 (Wi-Fi) Motherboard

₹31,919

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features:

  • Supports 12th Gen Intel® Coreâ„¢ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Intel® Optaneâ„¢ Memory Ready
  • Direct 10+2+1 Phases Digital VRM Solution with 105A Power Stage*
  • Advanced Thermal Design with Fins-Array II, Thermal Guard III and Heatpipe
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • Intel® WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC4080 and WIMA for Rear 120dB SNRHDMI 2.0 supports Premium 4K
  • Dual Ultra-Fast NVMe PCIe 4.0* x4 M.2 with Thermal Guard III
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strip
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Specifications:

CPU
  • LGA1700 socket: Support for 12th Generation Intel® Coreâ„¢ i9 processors/Intel® Coreâ„¢ i7 processors/Intel® Coreâ„¢ i5 processors
    (Go to GIGABYTE's website for the latest CPU support list.)
  • L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset Intel® Z690 Express Chipset
Memory
  • DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  • 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.
  • 1 x DisplayPort port, supporting a maximum resolution of 5120x2160@60 Hz
    * Support for DisplayPort 1.4 version and HDCP 2.3
    * The DisplayPort does not support HDMI connection by adapter.
(Graphics specifications may vary depending on CPU support.)
Audio
  • Realtek® ALC4080 CODEC
  • Support for DTS:X® Ultra
  • High Definition Audio
  • 2-channel
LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module

Intel® Wi-Fi 6 AX201:

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slots conform to PCI Express 5.0 standard.)
Storage Interface
CPU:
  • 1 x M.2 connector on the back of the GC-Z690I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  • 1 x M.2 connector on the front of GC-Z690I BTB PLUG (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB
Chipset:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  • 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports available through the USB headers on the front of GC-Z690I BTB PLUG
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x external power connector(Note 1)
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 2 x system fan headers(SYS_FAN1/SYS_FAN2(Note 1))
  • 1 x addressable LED strip header(Note 1)
  • 1 x RGB LED strip header
  • 2 x M.2 Socket 3 connectors(M2A_CPU(Note 2)/M2P_SB(Note 1))
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x speaker header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header(Note 1)
  • 1 x reset button(Note 1)
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

(Note 1) The connector is on the front of GC-Z690I BTB PLUG.
(Note 2) The connector is on the back of GC-Z690I BTB PLUG.

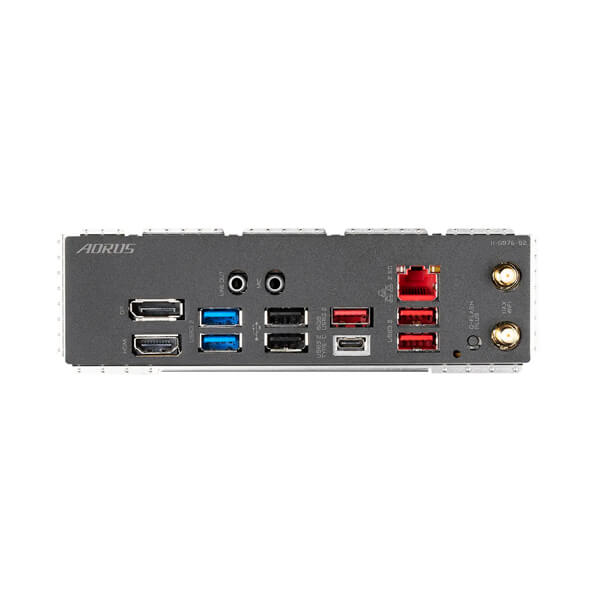

Back Panel Connectors
  • 2 x SMA antenna connectors (2T2R)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  • 3 x USB 3.2 Gen 2 Type-A ports (red)
  • 2 x USB 3.2 Gen 1 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x Q-Flash Plus button
  • 1 x RJ-45 port
  • 2 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
Bundled Software
  • Norton® Internet Security (OEM version)
  • cFosSpeed
Operating System Support for Windows 10 64-bit
Form Factor Mini-ITX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years
Note  ***Features, Price and Specifications are subject to change without notice
Motherboard
Platform INTEL
Socket LGA1700
Chipset Z690
Max Memory Support 64 GB
Supported Memory Type DDR4
Form Factor Mini-ITX
Warranty 3 Years
