Gigabyte Z690 Aorus Ultra (Wi-Fi) Motherboard
Gigabyte Z690 Aorus Ultra (Wi-Fi) Motherboard
Gigabyte Z690 Aorus Ultra (Wi-Fi) Motherboard
Gigabyte Z690 Aorus Ultra (Wi-Fi) Motherboard
Gigabyte Z690 Aorus Ultra (Wi-Fi) Motherboard
Gigabyte Z690 Aorus Ultra (Wi-Fi) Motherboard
Gigabyte Z690 Aorus Ultra (Wi-Fi) Motherboard
Gigabyte Z690 Aorus Ultra (Wi-Fi) Motherboard
Gigabyte Z690 Aorus Ultra (Wi-Fi) Motherboard
Gigabyte Z690 Aorus Ultra (Wi-Fi) Motherboard

Gigabyte Z690 Aorus Ultra (Wi-Fi) Motherboard

/ Write a review

HDFC bank Offer



  • Brand: GIGABYTE
  • Product Code: Z690-AORUS-ULTRA
  • Availability: Out Of Stock

Gigabyte Z690 Aorus Ultra (Wi-Fi) Motherboard

Offer Price

₹40,100

(36% off ) ₹63,000
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features:

Intel® Z690 AORUS Motherboard with 16+1+2 Digital VRM Design, DDR5 XTREME MEMORY Design, PCIe 5.0 Design, Fully Covered Thermal Design , 4*PCIe 4.0 M.2 with Enlarged Thermal Guards, 2.5GbE LAN, WIFI 6 802.11ax, 120dB Hi-Res Audio with WIMA, Rear USB 3.2 Gen 2x2 TYPE-C® , RGB FUSION 2.0, Q-Flash Plus

  • Supports 12th Gen Intel®  Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • 16+1+2 Phases Direct VRM Design with 105A Power Stage* and Tantalum Polymer Capacitor
  • DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
  • Advanced Thermal Solution with Fully Covered Thermal Design and Fins-Array II
  • WIFI6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Hi-Fi Audio with ALC4080 and WIMA Audio Capacitors
  • Fast 2.5GbE LAN with Bandwidth Management
  • Four Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
  • SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Specifications:

CPU
  • LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
  • L3 cache varies with CPU
Chipset Intel® Z690 Express Chipset
Memory
  • Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
  • 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
Audio
  • Realtek® ALC4080 CODEC
  • Support for DTS:X® Ultra
  • High Definition Audio
  • 2-channel analog output
  • Support for S/PDIF Out
  • 7.1-channel digital signals
LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module

Intel® Wi-Fi 6 AX200

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
  • 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
    (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface CPU:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB)
  • 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
  • 6 x SATA 6Gb/s connectors
USB

Chipset:

  • 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
  • 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+2 USB 3.2 Gen 1 Hubs:

  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 4 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 4 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x noise detection header
  • 2 x Thunderbolt™ add-in card connectors
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x power button
  • 1 x Q-Flash Plus button
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
  • 2 x temperature sensor headers

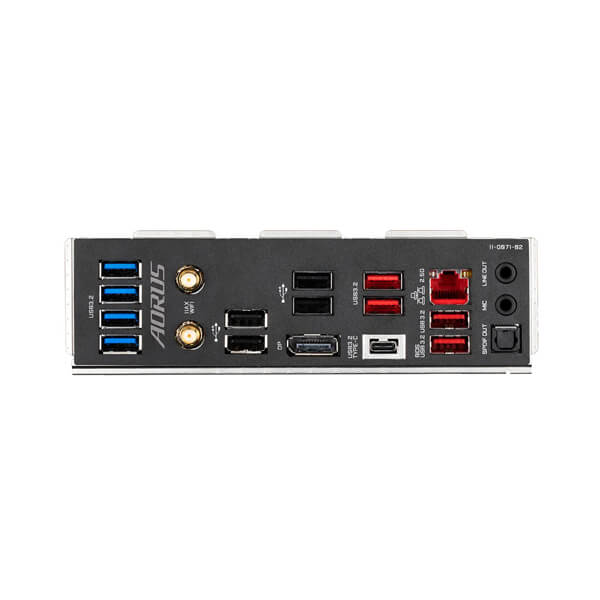

Back Panel Connectors 2 x SMA antenna connectors (2T2R)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
Bundled Software
  • Norton® Internet Security (OEM version)
  • cFosSpeed
Operating System Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1700
Chipset Z690
Max Memory Support 128 GB
Supported Memory Type DDR5
Form Factor ATX
Warranty 3 Years
