Gigabyte Z590 Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte Z590 Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte Z590 Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte Z590 Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte Z590 Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte Z590 Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte Z590 Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte Z590 Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte Z590 Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte Z590 Aorus Elite AX (Wi-Fi) Motherboard

Gigabyte Z590 Aorus Elite AX (Wi-Fi) Motherboard

/ Write a review

  • Brand: GIGABYTE
  • Product Code: Z590-AORUS-ELITE-AX
  • Availability: Out Of Stock

Gigabyte Z590 Aorus Elite AX (Wi-Fi) Motherboard

Offer Price

₹18,699

(19% off ) ₹23,200
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Z590 AORUS ELITE AX motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new Intel 11th Gen CPU.

  • Supports 11th and 10th Gen Intel® Coreâ„¢ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 12+1 Phases Digital VRM Solution with 60A DrMOS
  • Shielded Memory Routing for Better Memory Overclocking
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
  • Fast 2.5GbE LAN with Bandwidth Management
  • Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards
  • SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
  • Pre-installed IO Shield for Easy and Quick Installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Specifications

CPU LGA1200 package:
  1. 11th Generation Intel® Coreâ„¢ i9 processors / Intel® Coreâ„¢ i7 processors / Intel® Coreâ„¢ i5 processors
  2. 10th Generation Intel® Coreâ„¢ i9 processors / Intel® Coreâ„¢ i7 processors / Intel® Coreâ„¢ i5 processors / Intel® Coreâ„¢ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
    * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
  3. L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset
  1. Intel® Z590 Express Chipset
Memory
  1. 11th Generation Intel® Coreâ„¢ i9/i7/i5 processors:
    Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  2. 10th Generation Intel® Coreâ„¢ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  3. 10th Generation Intel® Coreâ„¢ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
  1. Realtek® ALC1220-VB codec
    * The back panel line out jack supports DSD audio
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module Intel® Wi-Fi 6 AX201:
  1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.1
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
*Supported by 11th Generation processors only.
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  • 1 x PCI Express x1 slot
    (PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFireâ„¢ and 2-Way AMD CrossFireâ„¢ technologies
Storage Interface CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
    2. *Supported by 11th Generation processors only.

Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2B_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
  3. 6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optaneâ„¢ Memory Ready
USB Chipset:
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  3. 2 x USB 3.2 Gen2 Type-A ports (red) on the back panel
  4. 5 x USB 3.2 Gen1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hub:
  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 3 x system fan headers
  7. 1 x system fan/water cooling pump header
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 6 x SATA 6Gb/s connectors
  11. 3 x M.2 Socket 3 connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  15. 1 x USB 3.2 Gen1 header
  16. 2 x USB 2.0/1.1 headers
  17. 2 x Thunderboltâ„¢ add-in card connectors
  18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only)
  19. 1 x Clear CMOS jumper
  20. 1 x Q-Flash Plus button
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

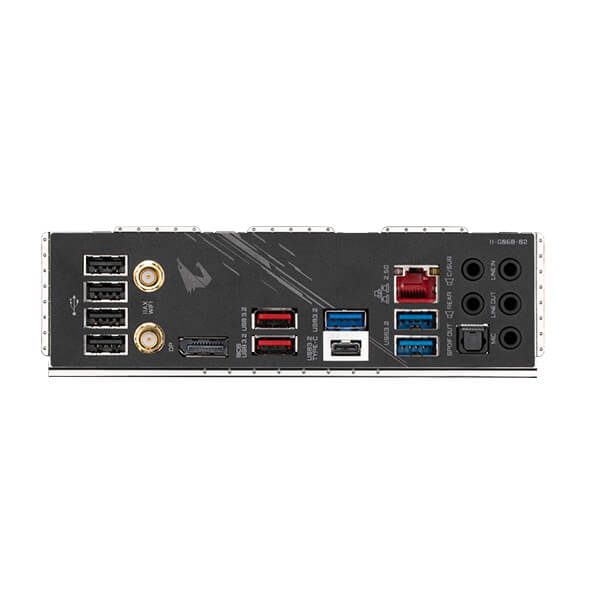

Back Panel Connectors
  1. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  2. 2 x USB 3.2 Gen 2 Type-A ports (red)
  3. 3 x USB 3.2 Gen 1 ports
  4. 4 x USB 2.0/1.1 ports
  5. 2 x SMA antenna connectors (2T2R)
  6. 1 x DisplayPort
  7. 1 x RJ-45 port
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  • Norton® Internet Security (OEM version)
  • Realtek® 8125 Gaming LAN Bandwidth Control Utility
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1200
Chipset Z590
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX
Warranty 3 Years
