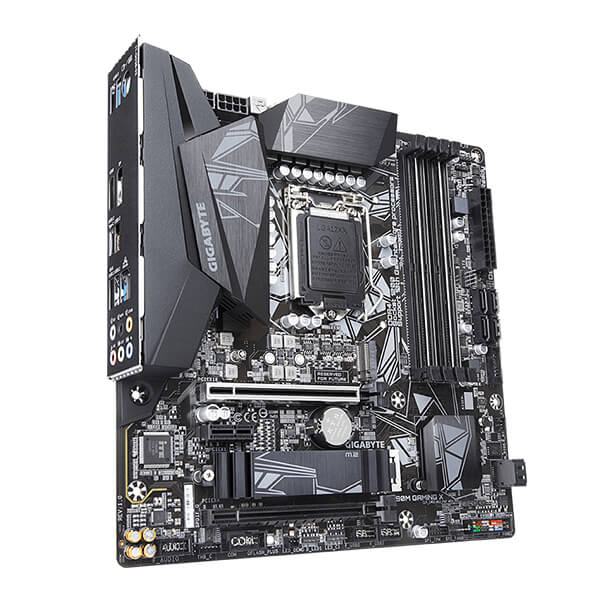

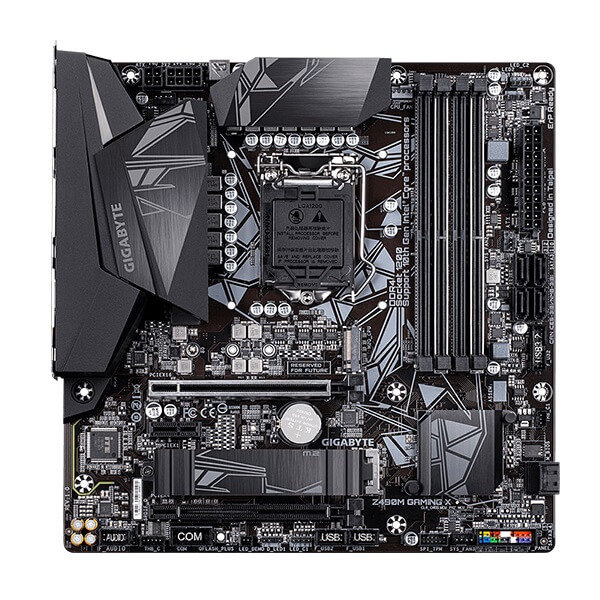

Gigabyte Z490M GAMING X M-ATX Motherboard
Gigabyte Z490M GAMING X M-ATX Motherboard
Gigabyte Z490M GAMING X M-ATX Motherboard
Gigabyte Z490M GAMING X M-ATX Motherboard
Gigabyte Z490M GAMING X M-ATX Motherboard
Gigabyte Z490M GAMING X M-ATX Motherboard
Gigabyte Z490M GAMING X M-ATX Motherboard
Gigabyte Z490M GAMING X M-ATX Motherboard
Gigabyte Z490M GAMING X M-ATX Motherboard
Gigabyte Z490M GAMING X M-ATX Motherboard

Gigabyte Z490M GAMING X M-ATX Motherboard

/ Write a review

  • Brand: GIGABYTE
  • Product Code: Z490M-GAMING-X
  • Availability: Out Of Stock

Gigabyte Z490M GAMING X M-ATX Motherboard

₹17,960

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

Intel® Z490M GAMING Motherboard with Direct 11+1 Phases Power Design, 2-Way CrossFire™ Multi-Graphics, Intel® GbE with cFosSpeed, USB 3.2 Gen2 Type-A ,USB 3.2 Gen2 Type-C™, M.2 with Thermal Guard, Smart Fan 5, Dual Armor with Ultra Durable™ Design, RGB FUSION 2.0

  • Supports 10th Gen Intel® Coreâ„¢ Series Processors
  • Direct 11+1 Phases Digital VRM Solution with Low RDS(on) MOSFET
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Enlarged VRM Heatsink with 5W/mK Thermal Conductive Pad
  • Ultra-Fast PCIe Gen3 X4 M.2 with Thermal Guard
  • Multi-Way Graphics Support with Dual Armor and Ultra Durableâ„¢ Design
  • Smart Fan 5 Features Multiple Temperature Sensors,Hybrid Fan Headers with FAN STOP
  • Intel® Optaneâ„¢ Memory Ready
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Intel® USB 3.2 Gen2 Type-A and USB 3.2 Gen2 Type-Câ„¢ Support
  • ALC1200 Multi-Channel Audio with High Quality Audio Capacitors and Audio Noise Guard
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Pre-installed IO Shield for Easy and Quick Installation
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Specifications

CPU
  1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
  2. L3 cache varies with CPU
Chipset

Intel® Z490 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
Support for up to 3 displays at the same time
Maximum shared memory of 512 MB
Audio
  1. Realtek® ALC1200 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN Intel® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 1 x PCI Express x1 slot
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology Support for AMD Quad-GPU CrossFireâ„¢ and 2-Way AMD CrossFireâ„¢ technologies
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
  2. 6 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
USB Chipset:
  1. 1 x USB Type-Câ„¢ port on the back panel, with USB 3.2 Gen 2 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  3. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  4. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x 8-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 3 x system fan headers
  6. 2 x addressable LED strip headers
  7. 2 x RGB LED strip headers
  8. 6 x SATA 6Gb/s connectors
  9. 1 x M.2 Socket 3 connector
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x S/PDIF Out header
  13. 1 x USB 3.2 Gen 1 header
  14. 2 x USB 2.0/1.1 headers
  15. 2 x Thunderboltâ„¢ add-in card connectors
  16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  17. 1 x serial port header
  18. 1 x Clear CMOS jumper
  19. 1 x Q-Flash Plus button

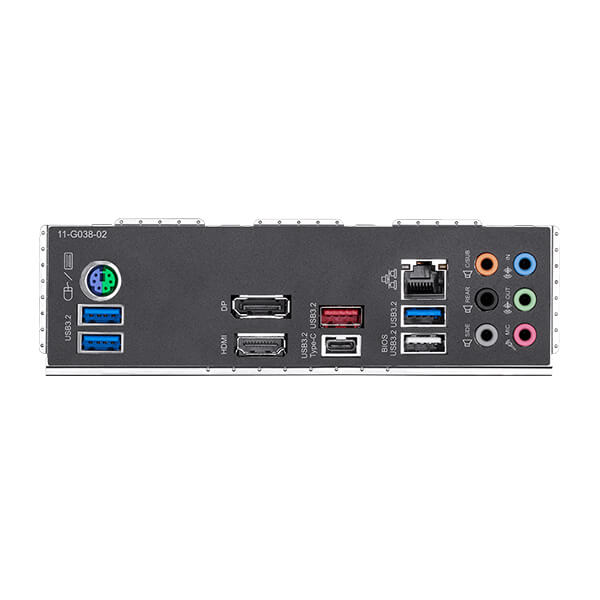

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 4 x USB 3.2 Gen 1 ports
  3. 1 x DisplayPort
  4. 1 x HDMI port
  5. 1 x USB 3.2 Gen 2 Type-A port (red)
  6. 1 x USB Type-Câ„¢ port, with USB 3.2 Gen 2 support
  7. 1 x RJ-45 port
  8. 6 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System Support for Windows 10 64-bit
Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years
Note
***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1200
Chipset Z490
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor M-ATX
