4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.)

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
 AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
 AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
 AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset button
1 x power button

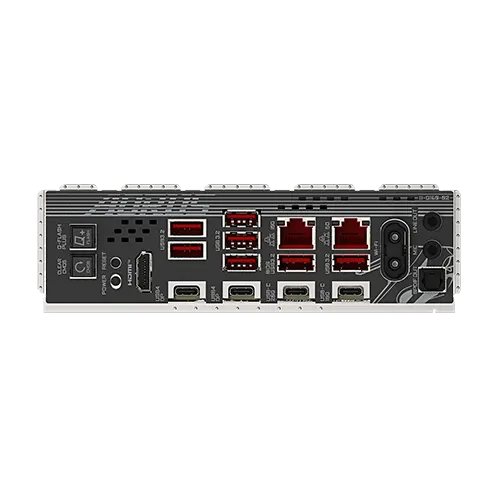

1 x HDMI port (Note)
2 x USB4® USB Type-C® ports (DisplayPorts (Note))
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
7 x USB 3.2 Gen 2 Type-A ports (red)
2 x RJ-45 ports
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector

(Note) Actual support may vary by CPU.

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x PCIe power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
1 x system fan extension cable header (can extend three system fan headers through one cable)
1 x system fan/water cooling pump header
4 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x chassis intrusion header
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers

(Note) Actual support may vary by CPU.
