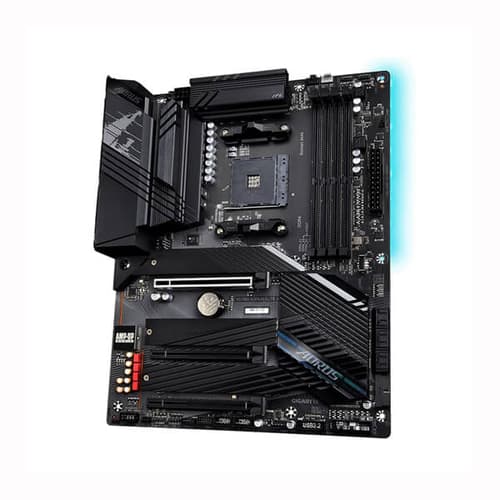

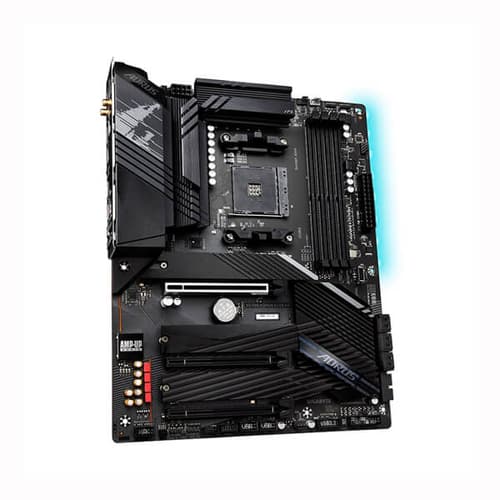

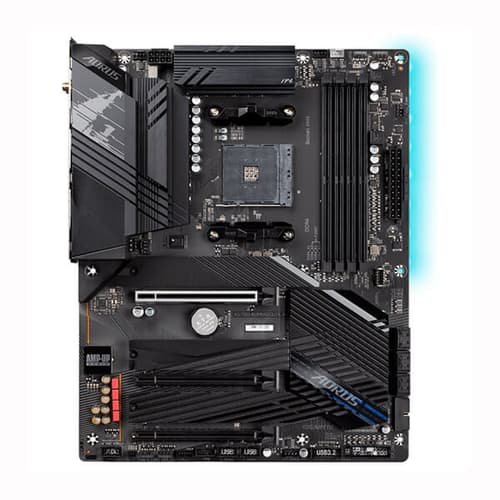

Gigabyte X570S Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte X570S Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte X570S Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte X570S Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte X570S Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte X570S Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte X570S Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte X570S Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte X570S Aorus Elite AX (Wi-Fi) Motherboard
Gigabyte X570S Aorus Elite AX (Wi-Fi) Motherboard

Gigabyte X570S Aorus Elite AX (Wi-Fi) Motherboard

/ Write a review

Tech Yatra sale 2025
  • Brand: GIGABYTE
  • Product Code: X570S-AORUS-ELITE-AX
  • Availability: Out Of Stock

Gigabyte X570S Aorus Elite AX (Wi-Fi) Motherboard

Offer Price

₹22,610

(5% off ) ₹23,900
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features:

Supports AMD Ryzenâ„¢ 5000 Series/ Ryzenâ„¢ 5000 G-Series/ Ryzenâ„¢ 4000 G-Series/ Ryzenâ„¢ 3000 Series/ Ryzenâ„¢ 3000 G-Series/ Ryzenâ„¢ 2000 Series/ Ryzenâ„¢ 2000 G-Series Processors

  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Twin 12+2 Phases Digital VRM Solution with 60A DrMOS
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • AMD WiFi 6E 802.11ax & BT 5.2
  • Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
  • Fast 2.5GbE LAN with Bandwidth Management
  • SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
  • AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Specifications:

CPU
  1. AMD Socket AM4, support for: AMD Ryzenâ„¢ 5000 Series/ Ryzenâ„¢ 5000 G-Series/ AMD Ryzenâ„¢ 4000 G-Series/ AMD Ryzenâ„¢ 3000 Series/ AMD Ryzenâ„¢ 3000 G-Series/ AMD Ryzenâ„¢ 2000 Series/ AMD Ryzenâ„¢ 2000 G-Series Processors
(Please refer "CPU Support List" for more information.)
Chipset  AMD X570
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
    * ECC memory (ECC mode) support varies by CPU
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics  Integrated Graphics Processor:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
  1. Realtek® ALC1220-VB codec
    * The back panel line out jack supports DSD audio.
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN  Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module  AMD Wi-Fi 6E RZ608 (MT7921K)
  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.2
  3. Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  1. AMD Ryzenâ„¢ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode
  2. AMD Ryzenâ„¢ 5000 G-Series/4000 G-Series/2000 Series Processors support PCIe 3.0 x16 mode
  3. AMD Ryzenâ„¢ 3000 G-Series/2000 G-Series Processors support PCIe 3.0 x8 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
  1. Supporting PCIe 4.0(Note)/3.0 x4 mode
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
  1. Supporting PCIe 4.0(Note)/3.0 x2 mode
    * The PCIEX4 slot shares bandwidth with the PCIEX2 slot. When the PCIEX2 slot is populated, the PCIEX4 slot operates at up to x2 mode.
(Note) For AMD Ryzenâ„¢ 5000 Series Processors/AMD Ryzenâ„¢ 3000 Series Processors only.
Multi-Graphics Technology

  1. Support for AMD Quad-GPU CrossFireâ„¢ and 2-Way AMD CrossFireâ„¢ technologies
(Note) For AMD Ryzenâ„¢ 5000 Series/5000 G-Series/4000 G-Series/3000 Series/2000 Series Processors only
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280/22110 SSDs:
  1. AMD Ryzenâ„¢ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. AMD Ryzenâ„¢ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
2 x M.2 connectors (M2B_SB/M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2260/2280/22110 SSDs:
  1. Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs
6 x SATA 6Gb/s connectors, integrated in the Chipset:
  1. Support for RAID 0, RAID 1, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB
CPU:
  1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+ASMedia® USB 3.2 Gen 2x2 Controller:
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
Chipset:
  1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  2. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 1 x system fan/water cooling pump header
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 1 x CPU cooler LED strip/RGB LED strip header
  10. 3 x M.2 Socket 3 connectors
  11. 6 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  15. 2 x USB 3.2 Gen 1 headers
  16. 2 x USB 2.0/1.1 headers
  17. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  18. 1 x Thunderboltâ„¢ add-in card connector
  19. 1 x Clear CMOS jumper
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

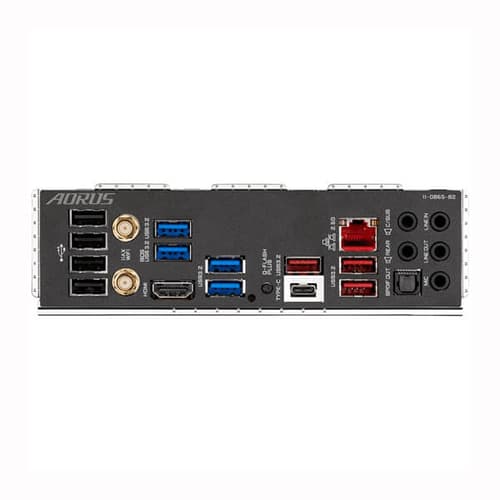

Back Panel Connectors
  1. 4 x USB 2.0/1.1 ports
  2. 2 x SMA antenna connectors (2T2R)
  3. 1 x HDMI port
  4. 4 x USB 3.2 Gen 1 ports
  5. 1 x Q-Flash Plus button
  6. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  7. 3 x USB 3.2 Gen 2 Type-A ports (red)
  8. 1 x RJ-45 port
  9. 1 x optical S/PDIF Out connector
  10. 5 x audio jacks
I/O Controller  iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS

  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. Realtek® 8125 Gaming LAN Bandwidth Control Utility
Operating System  Support for Windows 10 64-bit
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.



Motherboard
Platform AMD
Socket AM4
Chipset X570
Max Memory Support 128 GB
Supported Memory Type DDR4
Form Factor ATX
Warranty 3 Years

Questions and Answers

Q. does online and offline price are same or different 25/03/2023

A. Yes Sir.

Akash Yadav (Verified Buyer )

Q. So will they update the bios if i mention it in add comment while ordering this part? 19/02/2022

A. Yes.

Rajan Putty (Verified Buyer )

Q. will it support ryzen 7 5800x out of the box? 17/02/2022

A. BIOS update is needed.

Rajan Putty (Verified Buyer )
