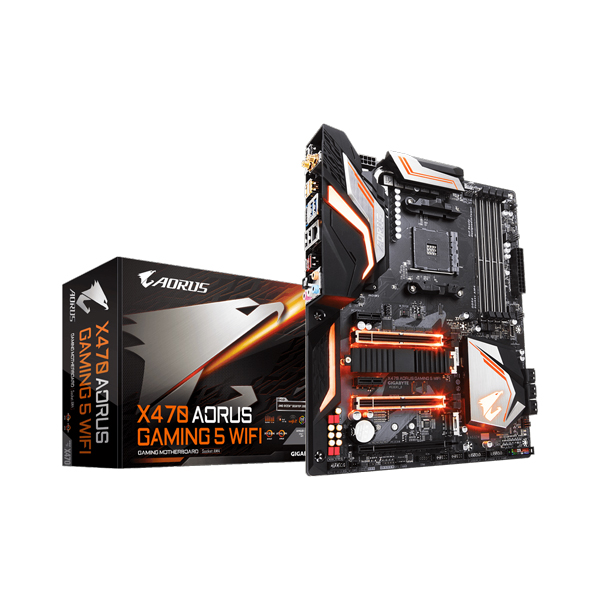

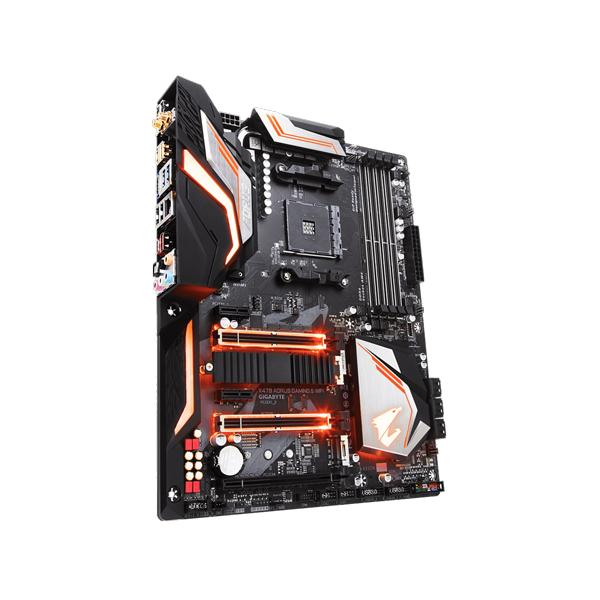

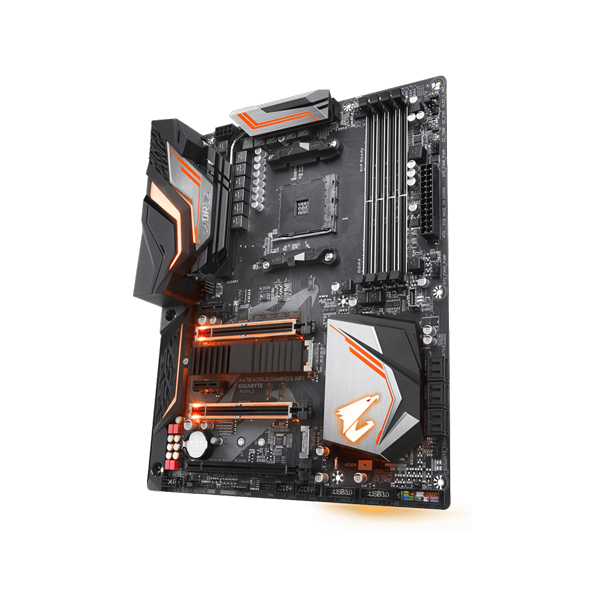

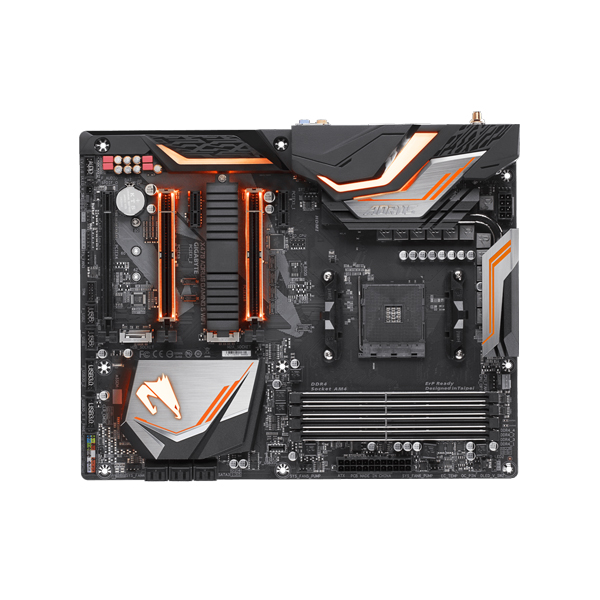

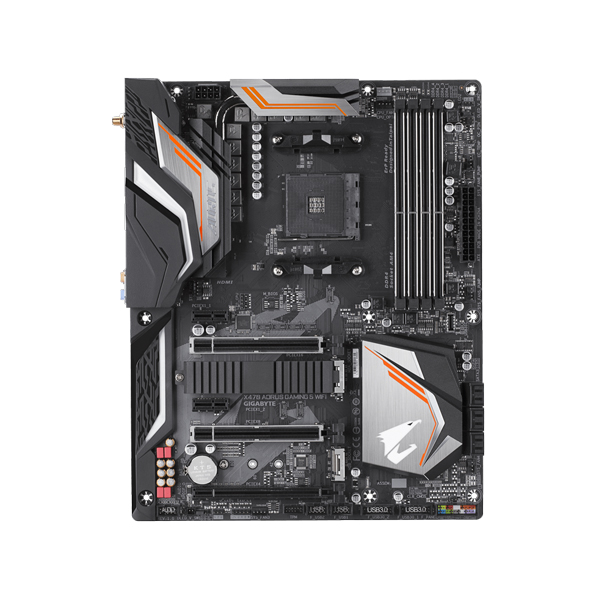

Gigabyte X470 Aorus Gaming 5 WiFi
Gigabyte X470 Aorus Gaming 5 WiFi
Gigabyte X470 Aorus Gaming 5 WiFi
Gigabyte X470 Aorus Gaming 5 WiFi
Gigabyte X470 Aorus Gaming 5 WiFi
Gigabyte X470 Aorus Gaming 5 WiFi
Gigabyte X470 Aorus Gaming 5 WiFi
Gigabyte X470 Aorus Gaming 5 WiFi
Gigabyte X470 Aorus Gaming 5 WiFi
Gigabyte X470 Aorus Gaming 5 WiFi
Gigabyte X470 Aorus Gaming 5 WiFi
Gigabyte X470 Aorus Gaming 5 WiFi

Gigabyte X470 Aorus Gaming 5 WiFi

/ Write a review

Bank Card Offer
  • Brand: GIGABYTE
  • Product Code: X470-AORUS-GAMING-5-WIFI
  • Availability: Out Of Stock

Gigabyte X470 Aorus Gaming 5 WiFi

₹17,809

  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.

Features

AMD X470 AORUS motherboard with 8+3 Hybrid Digital PWM, Dual M.2 with Thermal Guard, ALC1220-VB, Intel® 802.11ac Wave2 WIFI, USB DAC-UP 2 Design, CEC 2019 Ready, RGB FUSION 2.0

  • Supports AMD 3rd Gen Ryzenâ„¢/ 2nd Gen Ryzenâ„¢/ 1st Gen Ryzenâ„¢/ 2nd Gen Ryzenâ„¢ with Radeonâ„¢ Vega Graphics/ 1st Gen Ryzenâ„¢ with Radeonâ„¢ Vega Graphics/ Athlonâ„¢ with Radeonâ„¢ Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 8+3 Phase Hybrid Digital PWM Design
  • 2-Way CrossFire/ SLI Graphics Support with Dual Armor and Ultra Durableâ„¢ Design
  • Intel® 802.11ac Wave2 2T2R WIFI & BT 5
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • Dual Ultra-Fast M.2 with NVMe PCIe X4 with One Thermal Guard
  • RGB FUSION 2.0 with Multi-zone LED Light Show Design, Supports Digital LED & RGB LED Strips
  • Intel® Ethernet LAN with cFOS Speed Internet Accelerator
  • USB DAC-UP 2 with Adjustable Voltage
  • Anti-Sulfur Resistors Design
  • Ultra Durableâ„¢ 25KV ESD and 15KV Surge LAN Protection
  • CEC 2019 Ready, Save Power with a Simple Click

Specifications

CPU
 AM4 Socket:
  1. Supports AMD 3rd Gen Ryzenâ„¢/ 2nd Gen Ryzenâ„¢/ 1st Gen Ryzenâ„¢/ 2nd Gen Ryzenâ„¢ with Radeonâ„¢ Vega Graphics/ 1st Gen Ryzenâ„¢ with Radeonâ„¢ Vega Graphics/ Athlonâ„¢ with Radeonâ„¢ Vega Graphics Processors
Chipset
 AMD X470
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 3600(O.C.) / 3466(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
 Integrated Graphics Processor:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz*
    * Support for HDMI 2.0 version and HDCP 2.2.*
    * Actual support may vary by CPU.
Maximum shared memory of 2 GB
Audio
  1. Realtek® ALC1220-VB codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN Intel® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module
  1. Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5
  3. Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
    * Intel WIFI driver only support for Win10-64bit
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)*
    * Actual support may vary by CPU.
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)*
    * Actual support may vary by CPU.
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SOCKET connector.
  4. 2 x PCI Express x1 slots
    (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Multi-Graphics Technology
  1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFireâ„¢ and 2-Way AMD CrossFireâ„¢ technologies
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4* /x2 SSD support) (M2A_SOCKET)
    * Actual bandwidth may vary by CPU.
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 2.0 x4/x2 SSD support) (M2B_SOCKET)
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, and RAID 10
USB ASMedia® USB 3.1 Gen 2 Controller:
  1. 1 x USB Type-Câ„¢ port on the back panel, with USB 3.1 Gen 2 support
  2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
  1. 1 x USB Type-Câ„¢ port with USB 3.1 Gen 2 support, available through the internal USB header
  2. 4 x USB 3.1 Gen 1 ports, available through the internal USB headers
  3. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
  1. 4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 4 x system fan headers
  6. 2 x system fan/water cooling pump headers
  7. 1 x CPU cooler LED strip/RGB LED strip header
  8. 2 x digital LED strip headers
  9. 2 x digital LED strip power select jumpers
  10. 1 x RGB (RGBW) LED strip header
  11. 2 x M.2 Socket 3 connectors
  12. 6 x SATA 6Gb/s connectors
  13. 1 x front panel header
  14. 1 x front panel audio header
  15. 1 x S/PDIF Out header
  16. 1 x USB Type-Câ„¢ port, with USB 3.1 Gen 2 support
  17. 2 x USB 3.1 Gen 1 headers
  18. 2 x USB 2.0/1.1 headers
  19. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  20. 1 x Clear CMOS jumper
  21. 1 x temperature sensor header

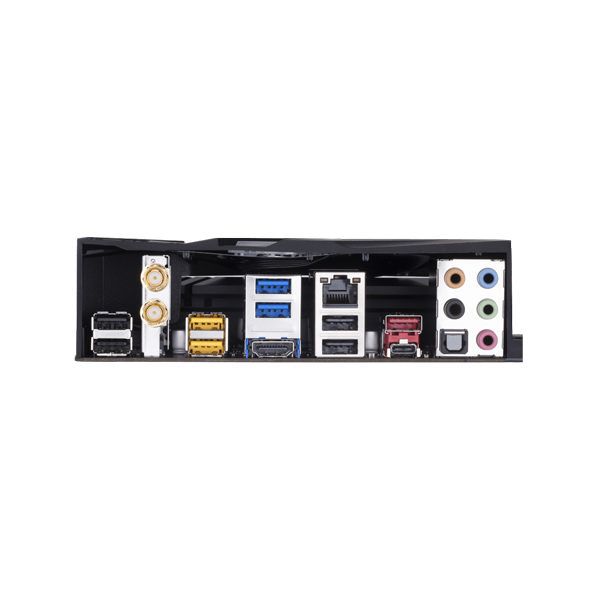

Back Panel Connectors
  1. 2 x MMCX antenna connectors (2T2R)
  2. 4 x USB 3.1 Gen 1 ports
  3. 1 x USB Type-Câ„¢ port, with USB 3.1 Gen 2 support
  4. 1 x USB 3.1 Gen 2 Type-A port (red)
  5. 4 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 1 x optical S/PDIF Out connector
  8. 5 x audio jacks
I/O Controller
 iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the cooler (pump)you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOSâ„¢
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    Smart HUD
    System Information Viewer
    USB Blocker
    USB DAC-UP 2
    V-Tuner
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
  3. XSplit Gamecaster + Broadcaster (12 months license)
Operating System
  1. Support for Windows 10 64-bit
  2. Support for Windows 7 64-bit
    * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
    * Intel WIFI driver only support for Win10-64bit
Form Factor
 ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
Motherboard
Platform AMD
Socket AM4
Chipset X470
Max Memory Support 64 GB
Supported Memory Type DDR4
Form Factor ATX
Warranty 3 YEARS
