CPU

Support for Intel® Core™ X series processors in the LGA2066 package

L3 cache varies with CPU

Chipset

Intel® X299 Express Chipset

Memory

    8 x DDR4 DIMM sockets supporting up to 256 GB of system memory.
    * Supported when using a 44-lane or 28-lane CPU (6-core or above).
    4 x DDR4 DIMM sockets supporting up to 64 GB of system memory.
    * Supported when using a 16-lane CPU (4-core).
    4 channel memory architecture.
    * Supported when using a 44-lane or 28-lane CPU (6-core or above).
    Dual channel memory architecture.
    Supported when using a 16-lane CPU (4-core).
    Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
    Support for non-ECC Un-buffered DIMM memory modules
    Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Expansion Slots

2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)

1 x PCI Express x16 slot, running at x8 (PCIEX8)

2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Interface

Chipset:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)

8 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

Multi-Graphics Technology

Support for NVIDIA® Quad-GPU SLI™ and 3-Way (with 44-lane CPU) / 2-Way (with 44 & 28-lane CPU) NVIDIA® SLI™ technologies

Support for AMD Quad-GPU CrossFire™ and 3-Way (with 44-lane CPU) / 2-Way AMD CrossFire™ technologies

USB

Chipset+ASMedia® USB 3.1 Gen 2 Controller:

2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel

Chipset:

10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)

4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

2 x system fan headers

1 x 3 Amp fan/water cooling pump header

1 x digital LED strip header

1 x digital LED strip power select jumper

2 x RGB (RGBW) LED strip extension cable headers

2 x M.2 Socket 3 connectors

8 x SATA 6Gb/s connectors

1 x Intel® VROC Upgrade Key header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

2 x USB 3.1 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Thunderbolt™ add-in card connector

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x temperature sensor header

1 x Clear CMOS jumper

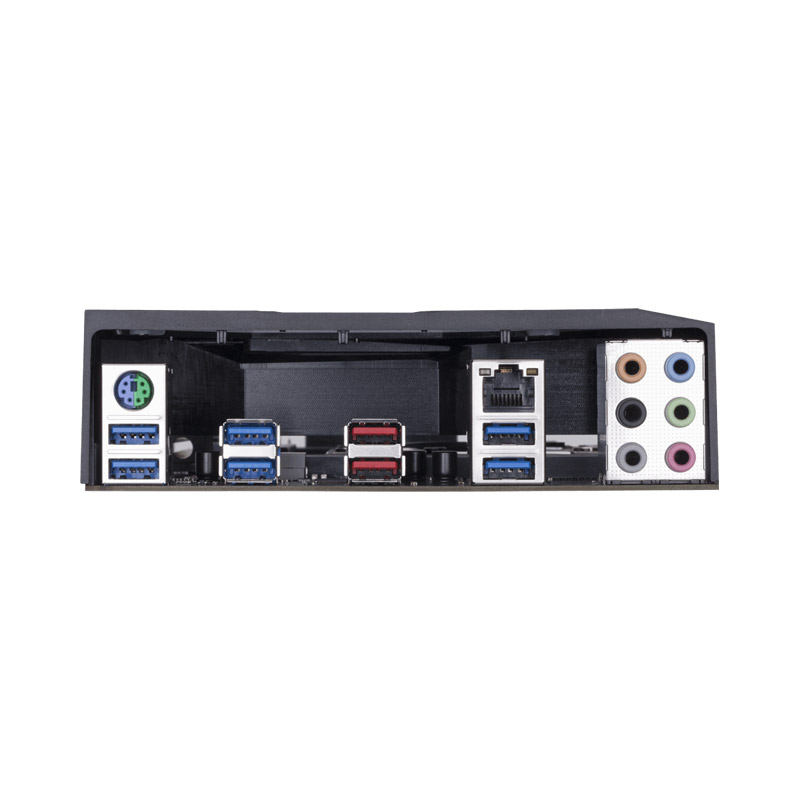

Back Panel Connectors

1 x PS/2 keyboard/mouse port

2 x USB 3.1 Gen 2 Type-A ports (red)

6 x USB 3.1 Gen 1 ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Overheating warning

Fan fail warning

Fan speed control

BIOS

2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center

@BIOS

AutoGreen

BIOS Setup

Color Temperature

Cloud Station

EasyTune

Easy RAID

Fast Boot

Game Boost

ON/OFF Charge

Platform Power Management

RGB Fusion

Smart Backup

Smart Keyboard

Smart TimeLock

Smart HUD

System Information Viewer

USB Blocker

V-Tuner

Support for Q-Flash

Support for Xpress Install

Bundle Software

Norton® Internet Security (OEM version)

cFosSpeed

Operating System

Support for Windows 10 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Warranty

3 Years

Note

***Features, Price and Specifications are subject to change without notice.
