Gigabyte H510M-S2 Motherboard
Gigabyte H510M-S2 Motherboard
Gigabyte H510M-S2 Motherboard
Gigabyte H510M-S2 Motherboard
Gigabyte H510M-S2 Motherboard
Gigabyte H510M-S2 Motherboard
Gigabyte H510M-S2 Motherboard
Gigabyte H510M-S2 Motherboard

Gigabyte H510M-S2 Motherboard

/ Write a review

Tech Yatra sale 2025
  • Brand: GIGABYTE
  • Product Code: H510M-S2
  • Availability: Out Of Stock

Gigabyte H510M-S2 Motherboard

Offer Price

₹5,965

(41% off ) ₹10,080
  Free Delivery
  Check
  Delivery is guaranteed as long as our locations stay open according to government regulations.
Intel® H510M Ultra Durable Motherboard with 6+2 Phases Digital VRM, PCIe 4.0* Design, Realtek 8118 Gaming LAN, Anti-Sulfur Resistor,  Smart Fan 6

  • Supports 11th and 10th Gen Intel®  Coreâ„¢ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • High Quality Audio Capacitors and Audio Noise
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

Specifications

CPU LGA1200 package:
  1. 11th Generation Intel® Coreâ„¢ i9 processors / Intel® Coreâ„¢ i7 processors / Intel® Coreâ„¢ i5 processors
  2. 10th Generation Intel® Coreâ„¢ i9 processors / Intel® Coreâ„¢ i7 processors / Intel® Coreâ„¢ i5 processors / Intel® Coreâ„¢ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
    * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
  3. L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset
  1. Intel® H510 Express Chipset
Memory
  • 11th Generation Intel® Coreâ„¢ i9/i7/i5 processors:
    Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  • 10th Generation Intel® Coreâ„¢ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
  • 10th Generation Intel® Coreâ„¢ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
  • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
(Graphics specifications may vary depending on CPU support.)
Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
  1. Realtek® GbE LAN chip(1000/100 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
    (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*
    * Supported by 11th Generation processors only.
  2. 1 x PCI Express x1 slot
    (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
Storage Interface Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
  2. 4 x SATA 6Gb/s connectors
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB Chipset:
  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 1 x CPU fan header
  5. 1 x system fan header
  6. 1 x RGB LED strip header
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.2 Gen 1 header
  10. 1 x USB 2.0/1.1 header
  11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  12. 1 x serial port header
  13. 1 x Clear CMOS jumper
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

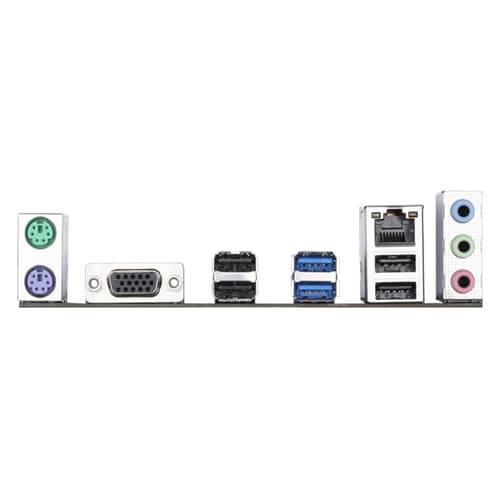

Back Panel Connectors
  • 1 x PS/2 keyboard port
  • 1 x PS/2 mouse port
  • 1 x D-Sub port
  • 2 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundled Software
  • Norton® Internet Security (OEM version)
  • Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 21.0cm
Warranty 3 Years
Note *** Featurers, Price, Specifications are subject to change without notice.
Motherboard
Platform INTEL
Socket LGA1200
Chipset H510
Max Memory Support 64 GB
Supported Memory Type DDR4
Form Factor Micro-ATX
Warranty 3 Years

Questions and Answers

Q. Does it have hdmi port and usb type c ?
Wattage of smps for i3 10 th gen with 1650 graphics? 24/07/2022

A. HDMI and USB Type C are not available on this motherboard. You can get a 450 watt Bronze certified PSU.

Arka (Verified Buyer )

Q. can I use my M.2 SSD with this motherboard? 16/06/2022

A. Yes.

Mandarapu Vaibhav (Verified Buyer )

Q. Does the mother board support MSI RX 6500 XT 4GB and i5 10400f 10/06/2022

A. Yes.

Aditya (Verified Buyer )

Q. Does this motherboard support Corsair VS550 Watt PSU..? 04/06/2022

A. Yes.

Avisek Bardhan (Verified Buyer )

Q. Will this Gigabyte h510m-s2 support pcie gen 3*4 with i3-10105f processor ? 16/05/2022

A. Only 11th GEN or above supports GEN 4.0 PCIe.

Swarnendu Chakraborty (Verified Buyer )
