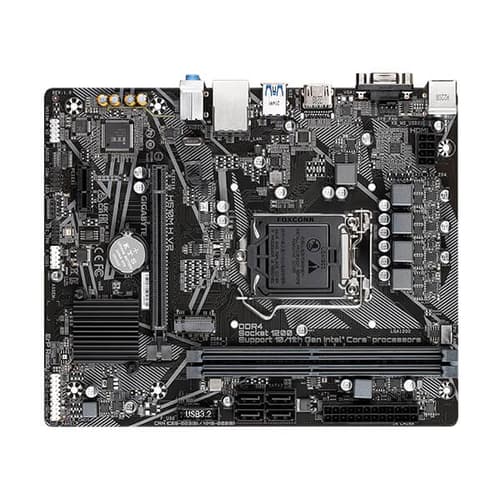

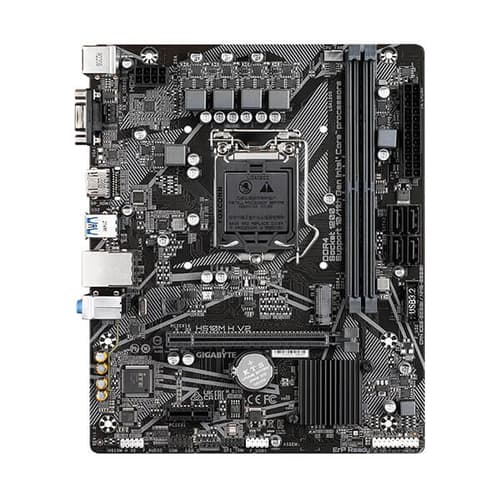

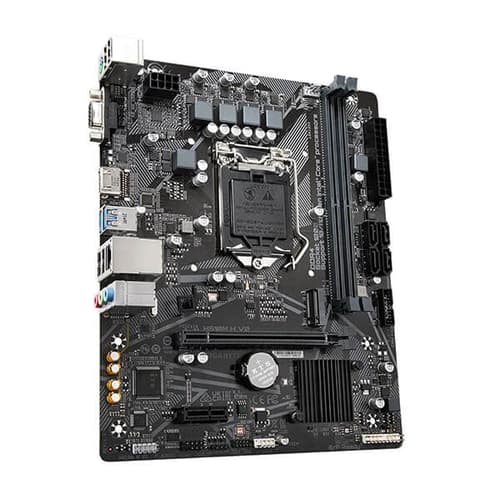

Gigabyte H510M H V2 DDR4 M-ATX Motherboard
Bank Credit & Debit Card EMI Offer
- Brand: GIGABYTE
- Product Code: H510M-H-V2
- Availability: Out Of Stock
Gigabyte H510M H V2 DDR4 M-ATX Motherboard
Offer Price
₹5,850
(44% off ) ₹10,440
Free Delivery
Check
Delivery is guaranteed as long as our locations stay open according to government regulations.
Features:
Intel® Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor, Smart Fan 5
- Supports 11th/10th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 8-Channel HD Audio with High Quality Audio Capacitors
- NVMe PCIe Gen3 x4 2280 M.2 Connector
- GbE LAN with Bandwidth Management
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Specification:
| Model | H510M H V2 |
| CPU |
LGA1200 package:
(Please refer to "CPU Support List" for more information.) |
| Chipset | Intel® H470 Express Chipset |
| Memory |
(Please refer "Memory Support List" for more information.) |
| Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support:
* Support for HDMI 1.4 version and HDCP 2.3.
* The D-Sub port is only available with the 10th Generation processors. (Graphics specifications may vary depending on CPU support.) |
| Audio |
|
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots |
CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface |
Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices |
| USB |
Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors |
|
| Back Panel Connectors |
|
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
|
| BIOS |
|
| Unique Features |
@BIOS Ambient LED EasyTune Smart Backup System Information Viewer
|
| Bundled Software |
|
| Operating System |
|
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
| Warranty | 3 Years |
| Note | Features, Price, Specifications are subject to change without notice. Images used for representation purposes only |
| Motherboard | |
| Platform | INTEL |
| Socket | LGA1200 |
| Cpu Type | 11th Gen,10th Gen |
| Chipset | H510 |
| Memory Speed | up to 3200 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Graphics Port | 1 x HDMI,1 x D-Sub |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |

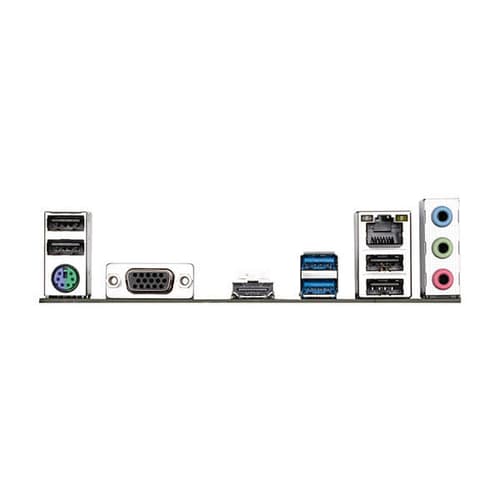

| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
